Milgard balancers - 27"

Home Owner from San Jose, CA
Need replacement window balancers (8). Which part # to order?

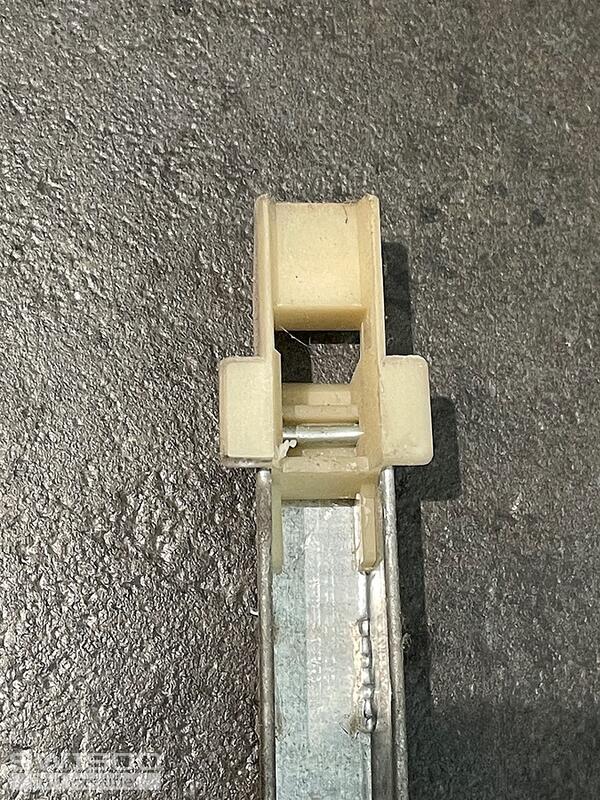

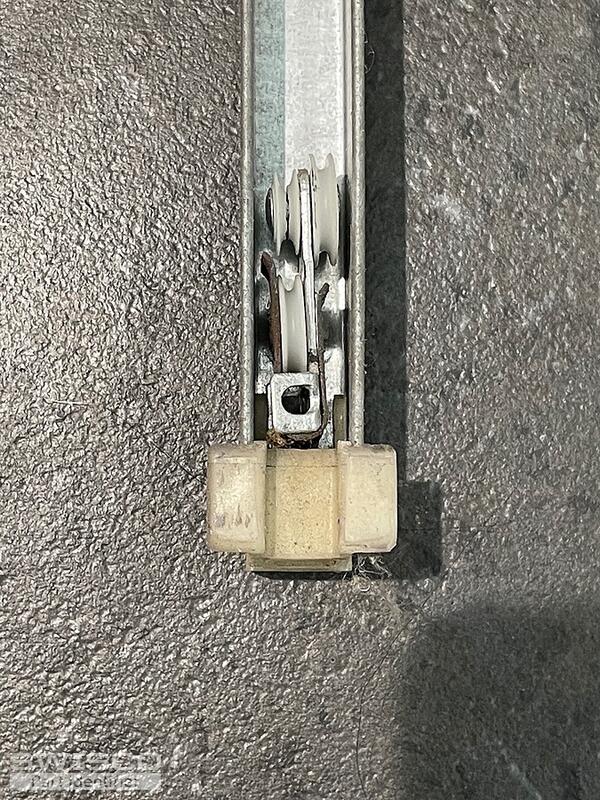

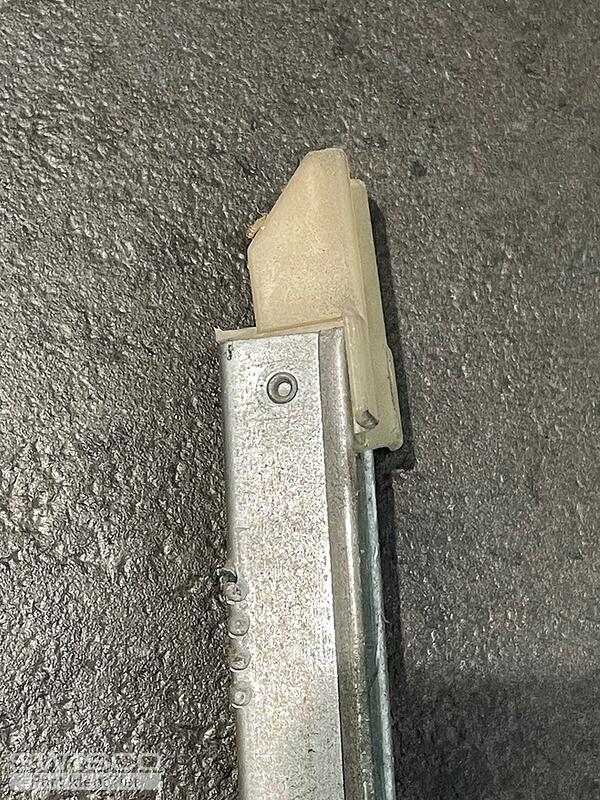

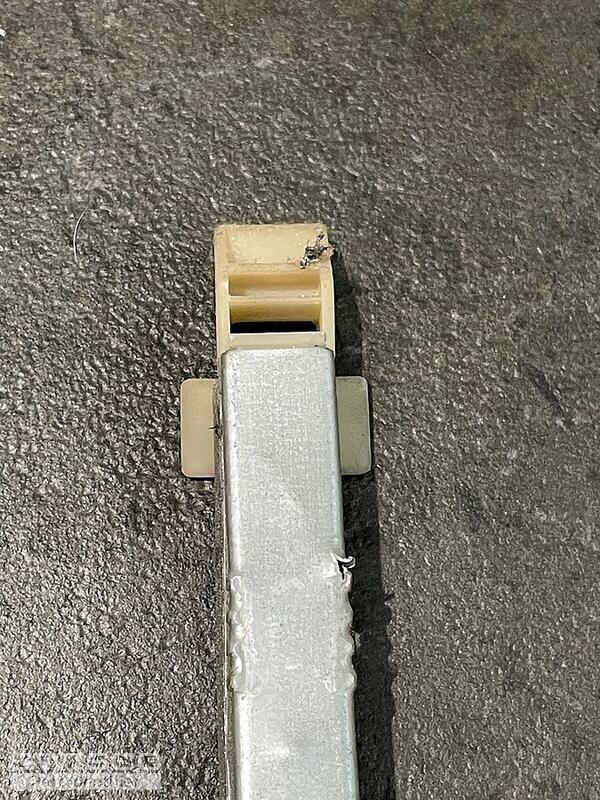

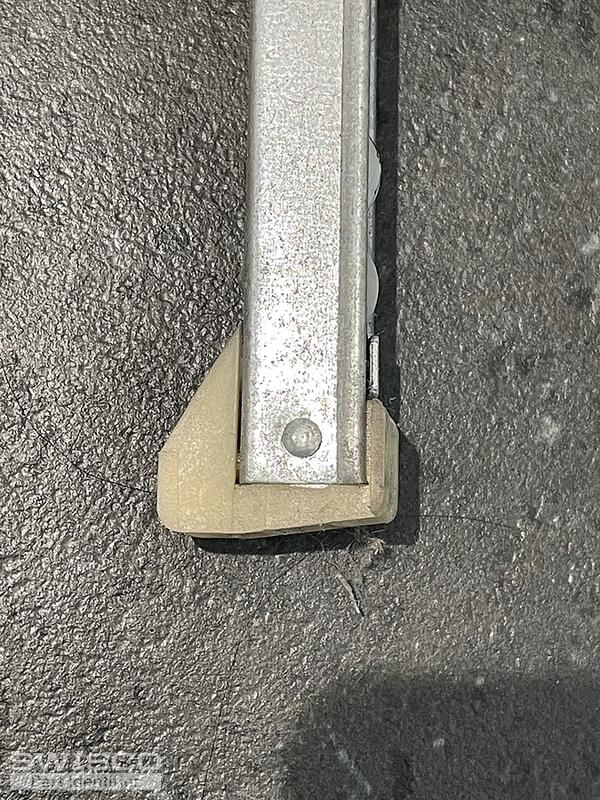

See photos of ends. Metal 27" length. Stamp shows: 26 4 HW CMC 11
5 user uploaded images
2 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for posting! It looks like you have either the S380-27 with a 1" shoe or the S385-27 with a 1-3/32" shoe. To determine which series is needed for your window, look over the dimensions from the diagram below to confirm the depth of your bottom shoe. Let me know if it does not match either measurement.

You'll need to select the 2640 stamp.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
