Milgard casement window lefthand operator with a stripped gear

Question

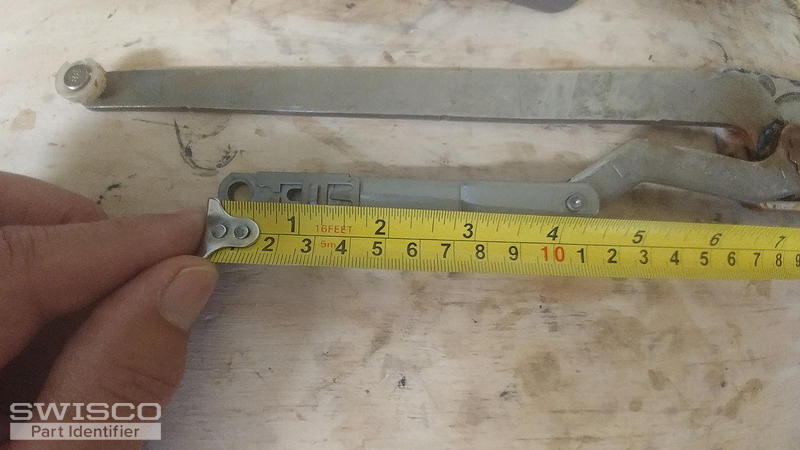

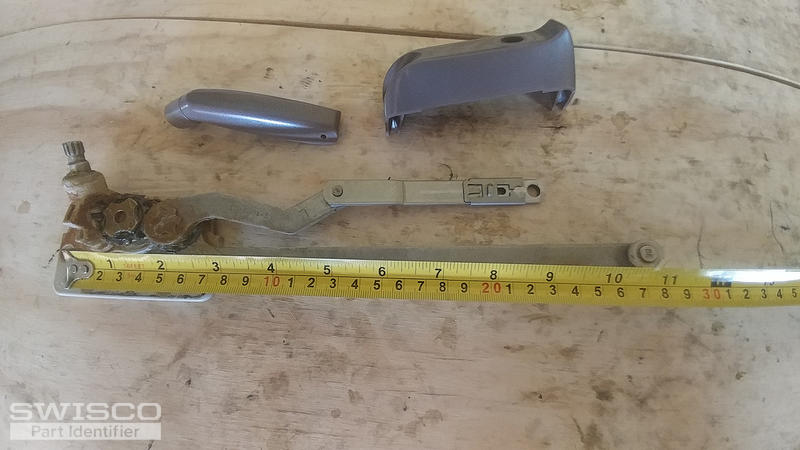

I need a replacement for a Milgard casement window lefthand operator with a stripped gear.
Number on the long crank arm is S-1081-102
Number on the short crank arm is S-1081-03
Number on the back of the bracket that you screw into the sill is C-1081-101

Bob · Accepted Answer

Thanks for writing in. I'm afraid we don't have an exact match for this casement operator. The 39-031 and 39-032 are similar, but they have a smaller base, so you would almost certainly have to alter your sill trim to accommodate the new style. Even then I cannot absolutely guarantee this would work for you. Let me know what you think. You will also need a new cover, our 39-107, and a new handle like our 39-205.
