Milgard casement window operator upper

A quick learner from Maui Hawaii says:
January 4, 2023

I have Milgard windows throughout the house. I believe they're between 8 to 10 years old. I need a replacement upper casement operator for my Milgard window could you please let me know what I should order.

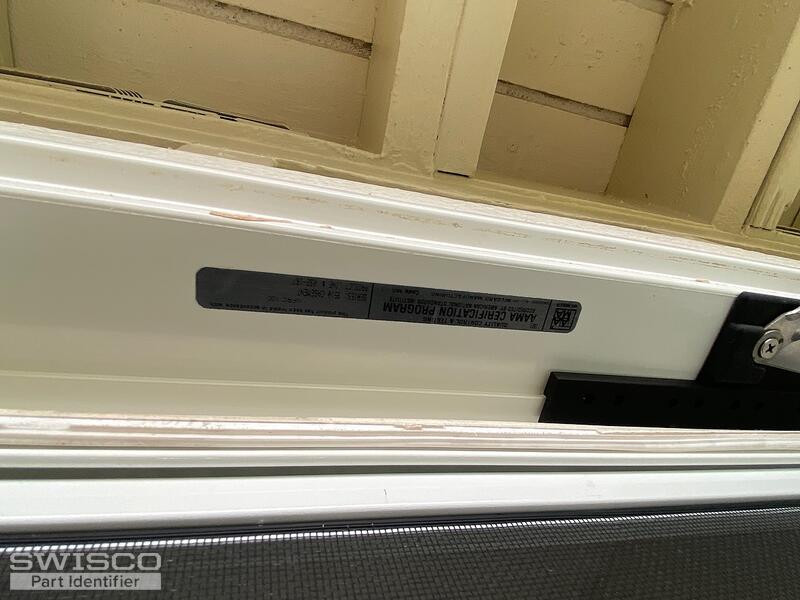

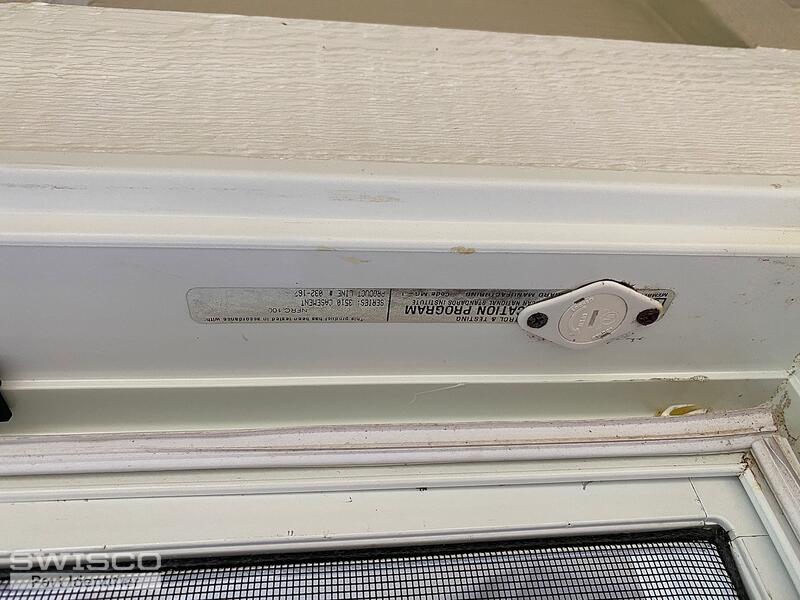

SERIES: 3510 casement

PRODUCT LINE # 232-167

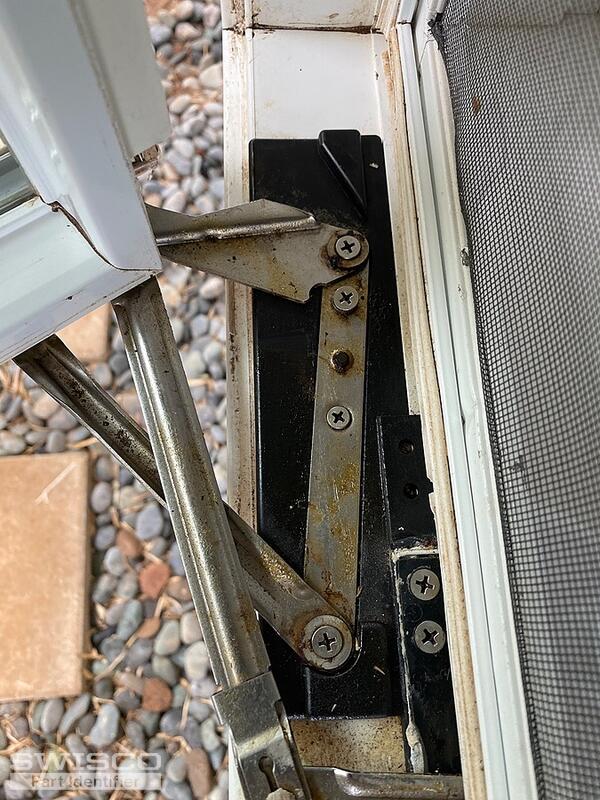

Please see photos below.

Thank you, Dan

Thumbnail of the uploaded file named 57F1D41E-858E-4B72-8B20-0C1FE47D9434.jpeg
Thumbnail of the uploaded file named 6E21BD1A-4F71-4F95-848B-301BEA3BC23A.jpeg
Thumbnail of the uploaded file named 5FD04D7B-64BC-4029-83FF-2D819EF9282E.jpeg
Thumbnail of the uploaded file named D5813D89-A1CA-46A1-ACA3-E80414906012.jpeg
Profile picture of Emily
Emily from SWISCO responded:
January 6, 2023

Hi, Dan.

I suspect you may have our 39-091 and 39-092 ROTO operators. Compare our specifications with yours to see if they match what you're looking for. Note, the link arms for these parts were discontinued and are no longer available so you will need to re-use your old one.

We don't sell your exact hinge but customers have reported that our 36-048 can work as long as you replace the top and bottom hinges at the same time.
A quick learner from Maui Hawaii says:
January 6, 2023

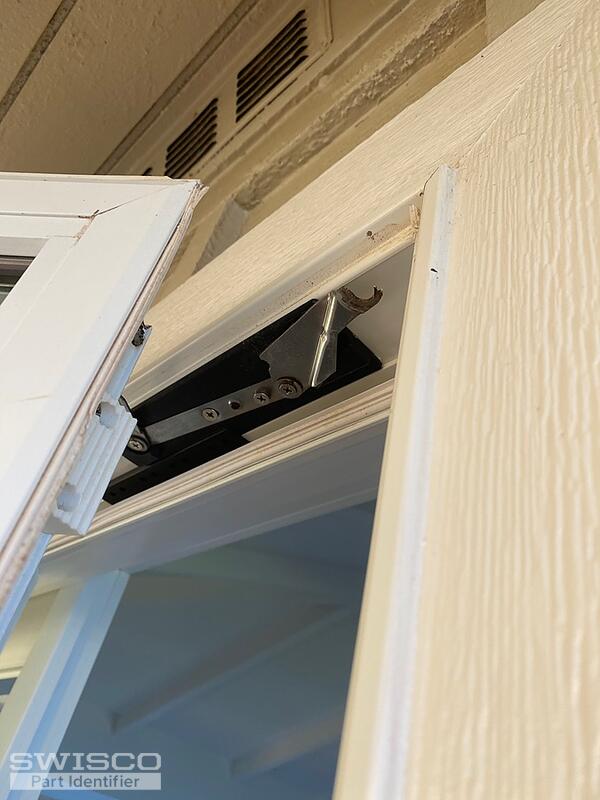

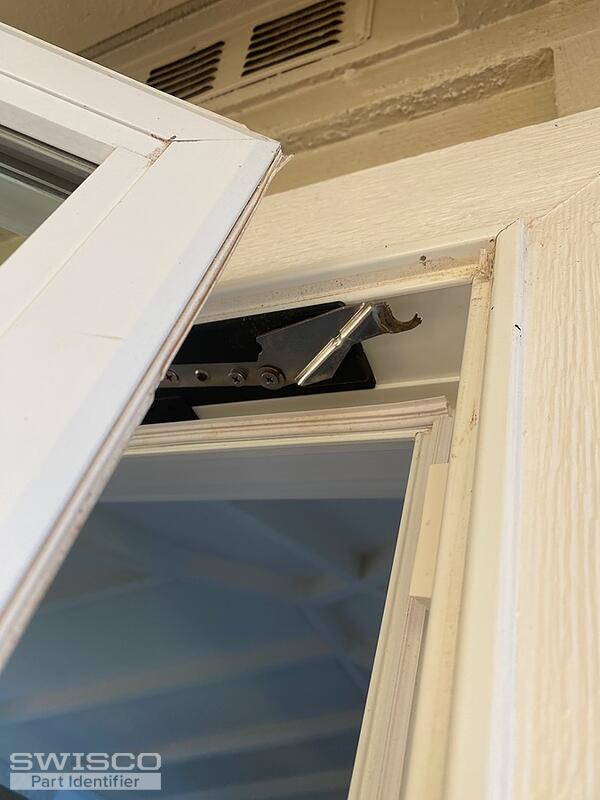

I'm going to send you some new photos attached below. I think that will clarify what I'm looking for. Thanks for your help.

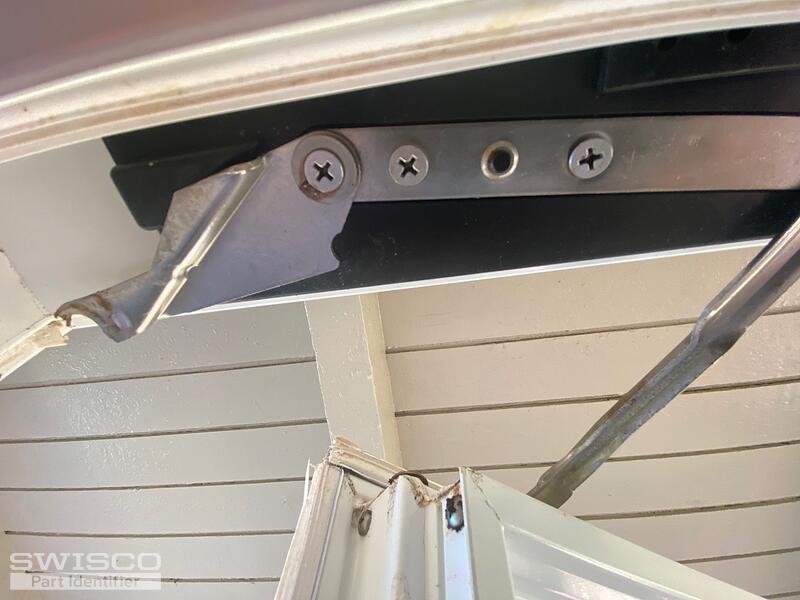

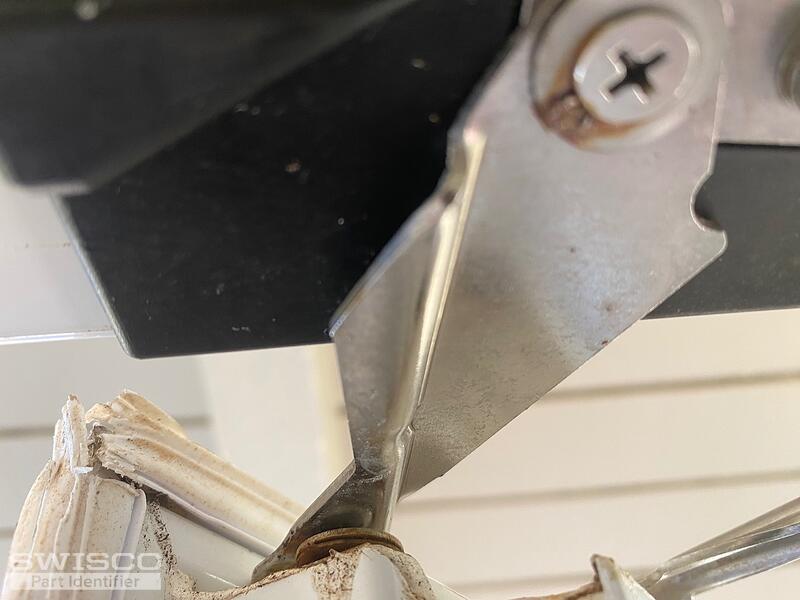

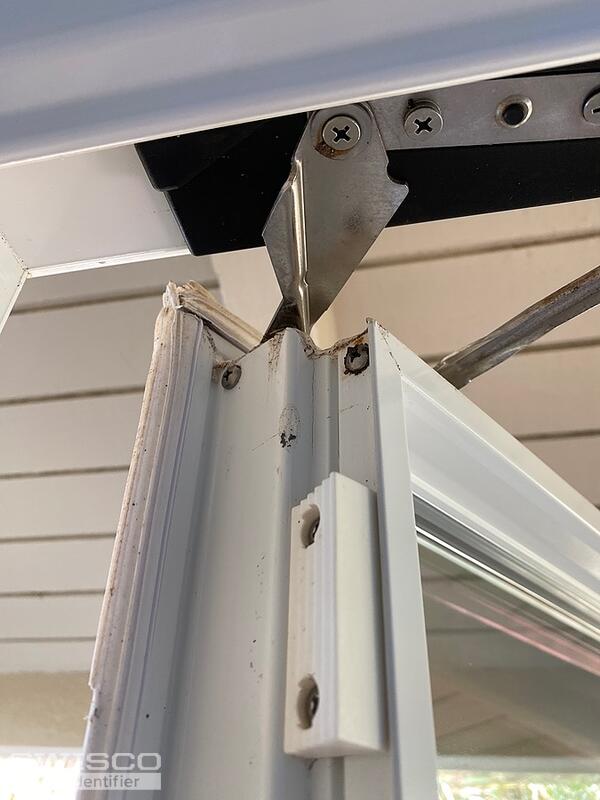

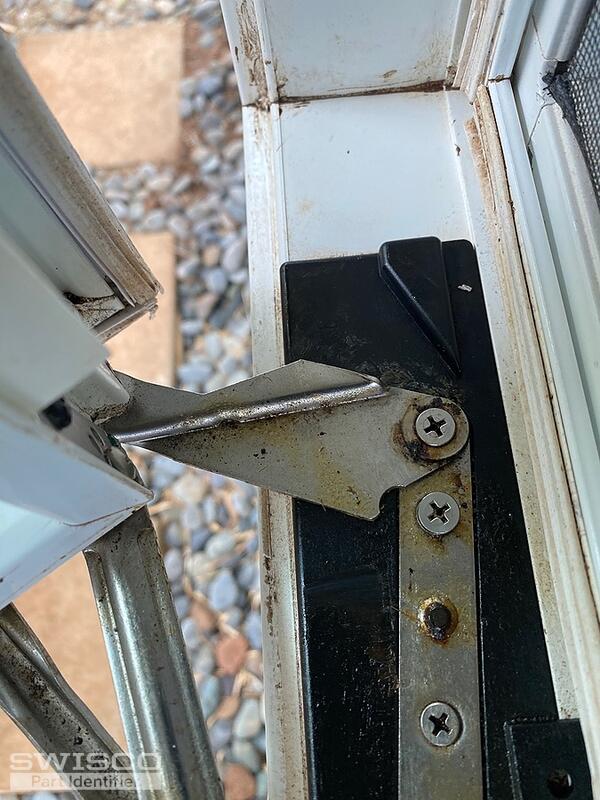

Please notice the bolt hole has ripped out.
Thumbnail of the uploaded file named 0752B012-C277-45B1-B103-9A2A7ED83586.jpeg
Thumbnail of the uploaded file named 17B1CF71-4C03-4627-9DF1-38E1F22AD20F.jpeg
Thumbnail of the uploaded file named 42573565-C7C8-44DF-98F2-EA20A418AB26.jpeg
Thumbnail of the uploaded file named D4E7CCD7-0DCE-48B5-82C2-6F2C5DA44728.jpeg
Thumbnail of the uploaded file named 13A2A226-45C0-4A10-AF53-B6DF8886F421.jpeg
Profile picture of Emily
Emily from SWISCO responded:
January 10, 2023

You have the old discontinued ROTO hinge which isn't made anymore but our 36-048 would be our best replacement option.
ROTO Casement Operator
ROTO Casement Operator
39-091
$67.93
ROTO Casement Operator
ROTO Casement Operator
39-092
$67.93
2-Bar Hinge Set, 10"
2-Bar Hinge Set, 10"
36-048
$17.47
