Milgard fiberglass windows crank handle replacement needed

Home Owner from Oakland, CA

Feb 16, 2024 7:23 pm

Hello, we installed in 2015 Milgard fiberglass windows to our bedroom and bathroom. The crank mechanisms are the same. The crank handle in the bathroom broke. I put the photos of the proper working handle's photo and a photo of the crank without the handle so you can see the mid part. Could you let me know what model this handle is so we can order it?

3 user uploaded images

4 Replies

Bob from SWISCO

Feb 18, 2024 3:18 pm

Thanks for posting. This is most likely a 39-205 Folding Handle, which fits onto a 11/32" diameter operator spline. It is held onto the operator using a set screw. Please review and let us know what you think.

Home Owner from Oakland, CA

Feb 20, 2024 11:38 pm

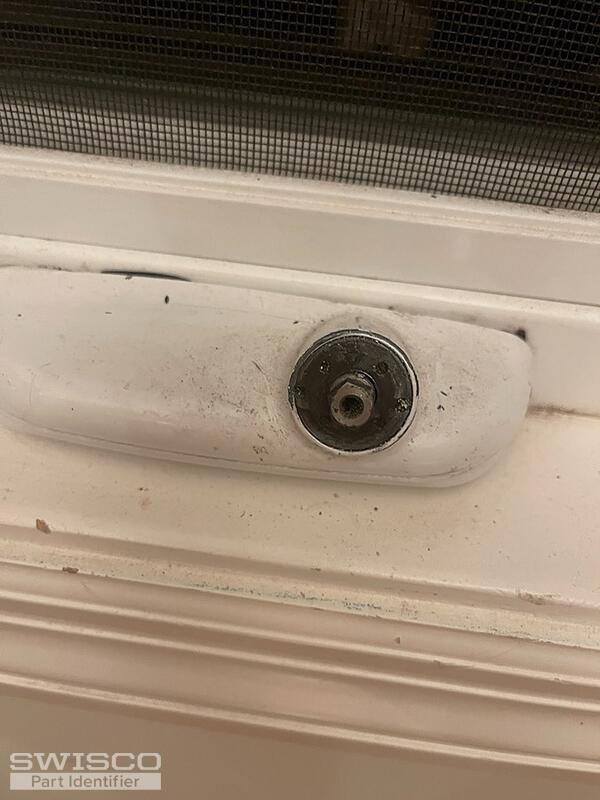

Thank you Bob for the fast response. Looking at the link you sent, I am not sure it is the right one and whether it will fit to the hexagon style part underneath. Could you please take a look at this new photo of the inner part of the crank to confirm?

1 user uploaded image

Bob from SWISCO

Feb 21, 2024 6:24 pm

Good catch, that's definitely not what I was expecting. That hex design is not compatible with the 39-205. The 39-224 fits onto a 5/16" hex gear bore. If that's the size of the hex gear on your mechanism, then this is the right choice. If in doubt, send me a picture of the entire operator, including the link arm(s) that push and pull the window sash. A bird's eye perspective, but with the window open, would suffice. Identifying the operator would confirm if the 39-224 is correct. Let me know if you have further questions.
