Milgard lock
Quick Learner from USA
Apr 27, 2023 3:03 pm

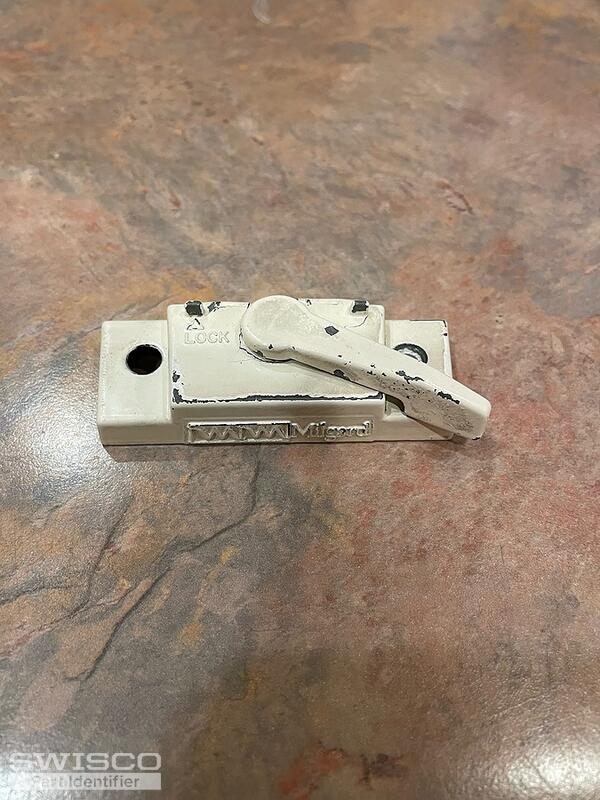

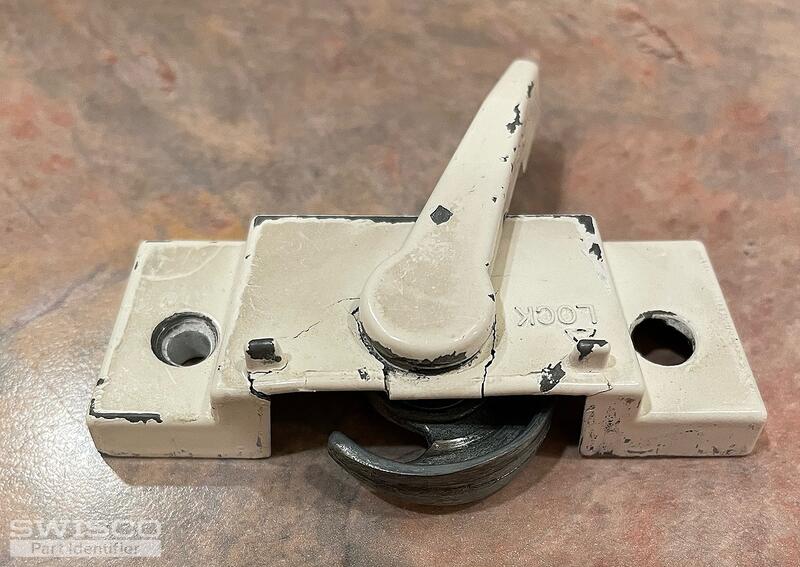

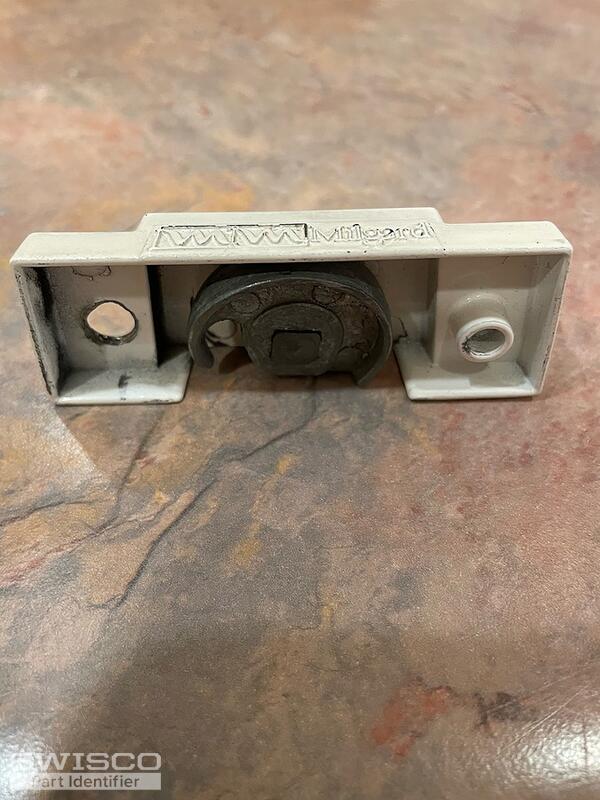

My sweep lock is broken. a Swisco rep said I should measure the holes.
5 user uploaded images
4 Replies
Tom from SWISCO
Apr 27, 2023 3:21 pm

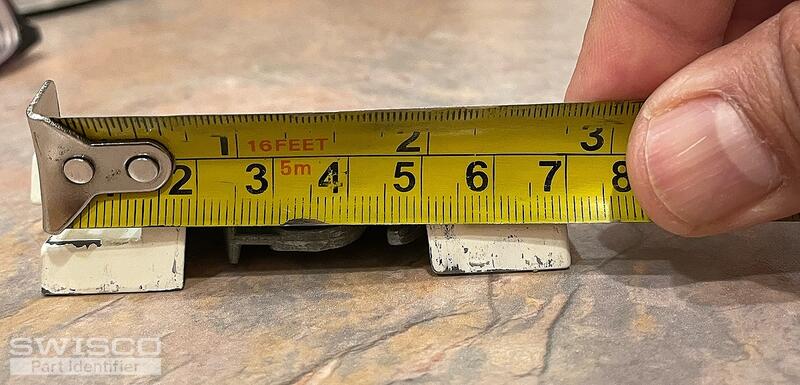

The hole to hole spacing looks like it's over 2", but I unfortunately can't tell exactly by how much. Measurements like this are difficult to tell from just a photo of a ruler. Would you be able to remeasure it and write the dimension out for me?
Quick Learner from USA
Apr 27, 2023 6:53 pm

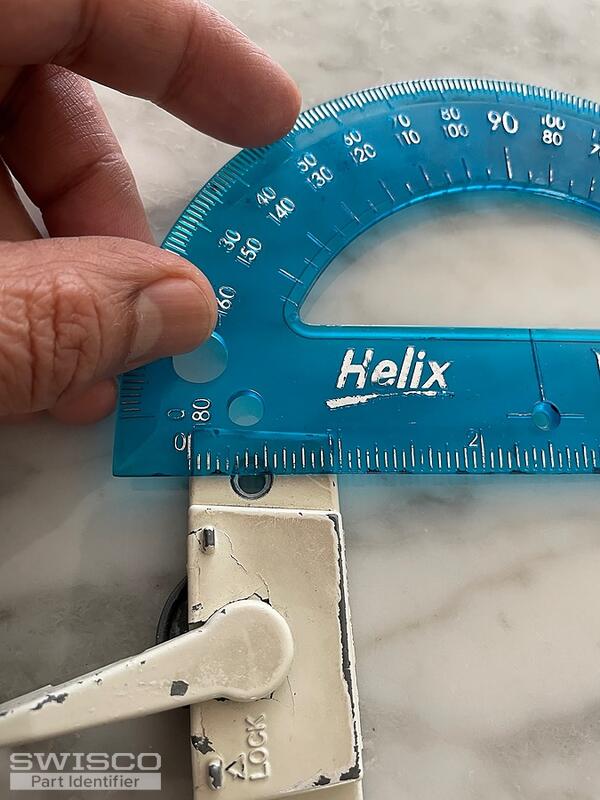

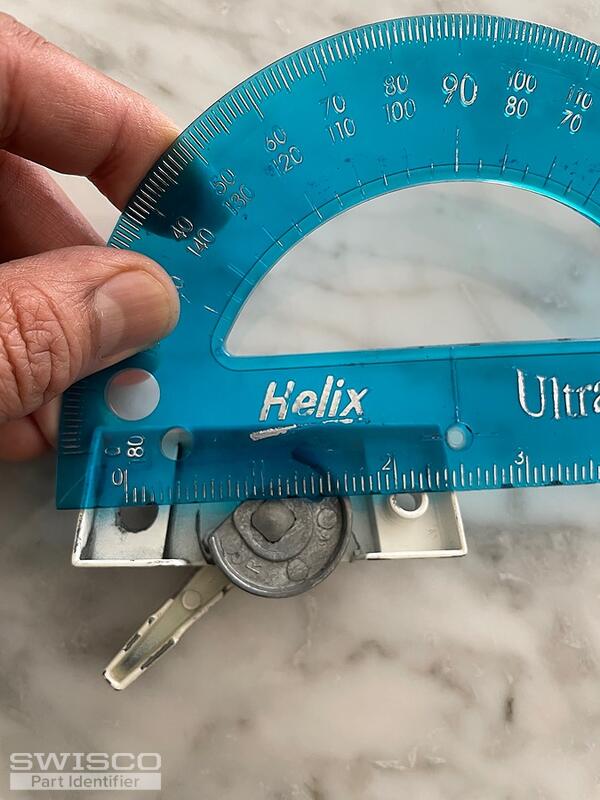

Hole to hole is 2 and 1/16.
Hole to edge is 3/8
Hole to edge is 3/8
2 user uploaded images
Tom from SWISCO
Apr 28, 2023 10:35 am
Thank you. Based on these measurements I think our 90-077C is your best option. It has the same hole center spacing at 2-1/16", though the backset is different. We don't sell anything in 3/8", but our 7/16" isn't too far off. Look it over and see what you think.
Dimensions for 90-077C
