Milgard scissor mechanism broke

Quick Learner from 95062
Nov 27, 2023 7:01 pm

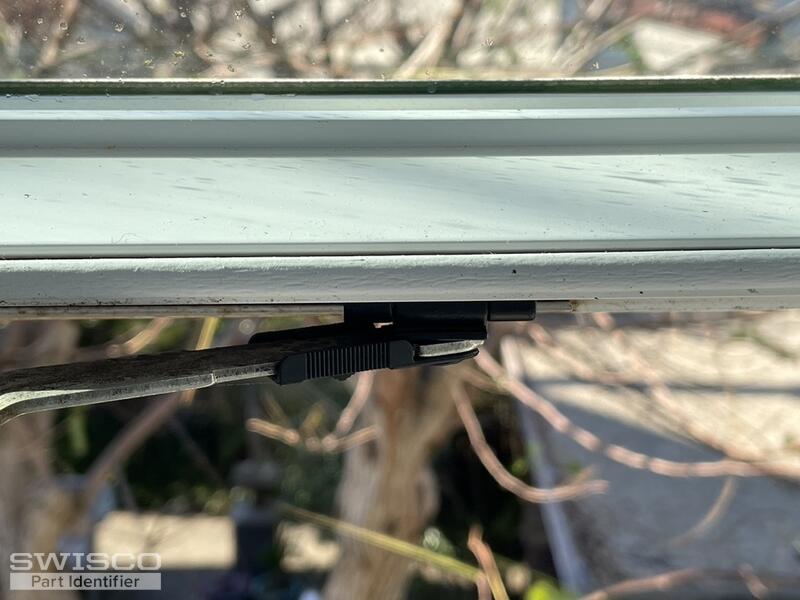

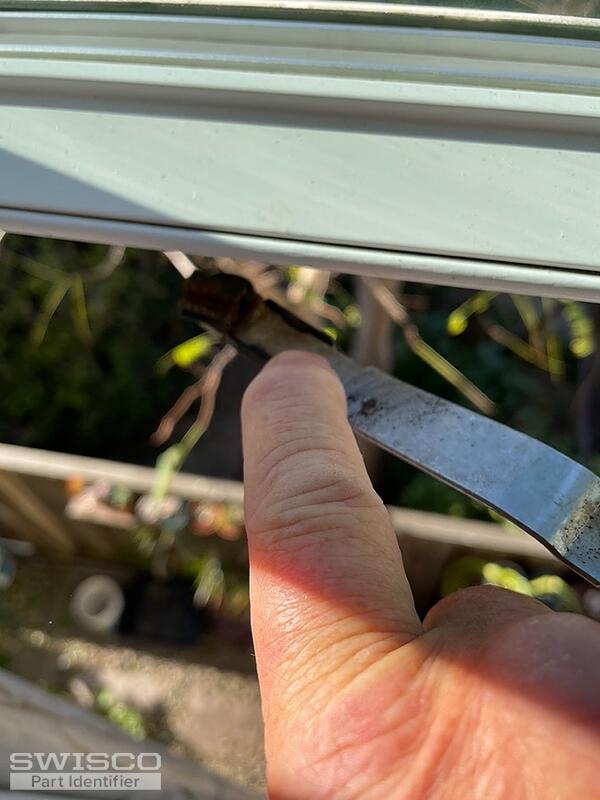

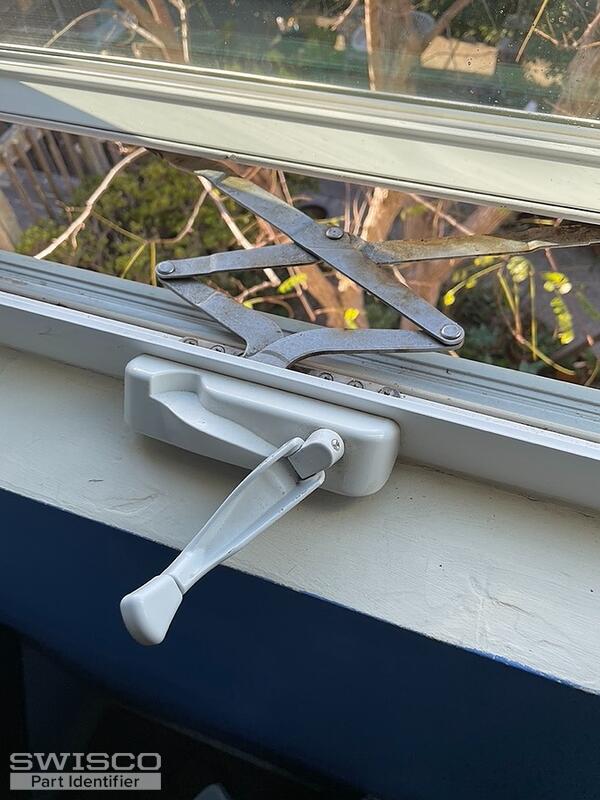

The left side of the scissor's plastic attachment point broke and fell. I'm hoping the plastic piece shown in the first pic on the right arm is something I can purchase and install from inside. It's a second story window. Thanks!
496D94E7-4FE2-4A8C-B67C-163716994B7A_1_105_c 08DA55DA-D7F6-48CC-9ED8-6D74061B5268_1_105_c 7E475C17-5E4B-4150-BE65-721BF6B2E542_1_105_c
3 user uploaded images
1 Replies
+ Add a Comment
Jasmine
Jasmine from SWISCO
Nov 29, 2023 4:19 pm
SWISCO
EXPERT

Hello,

Thanks for posting! Your awning operator attachments appear to be the 39-558 Truth Detach Clip and the 39-536 Truth Hardware Pivot Slide Assembly. These are typically used with our 39-239B. Carefully look over the dimensions and design. Compare them to your existing hardware to confirm that these are the correct replacements.

Alternate image for 39-536
Alternate image for 39-536

Alternate image for 39-558
Alternate image for 39-558

+ Add a Comment
Products and resources found in this discussion
Truth Hardware Pivot Slide Assembly
Truth Hardware Pivot Slide Assembly
39-536
$3.20
Truth Detach Clip
Truth Detach Clip
39-558
$1.47
