Home Owner from Thornton CO

Jun 19, 2024 1:05 pm

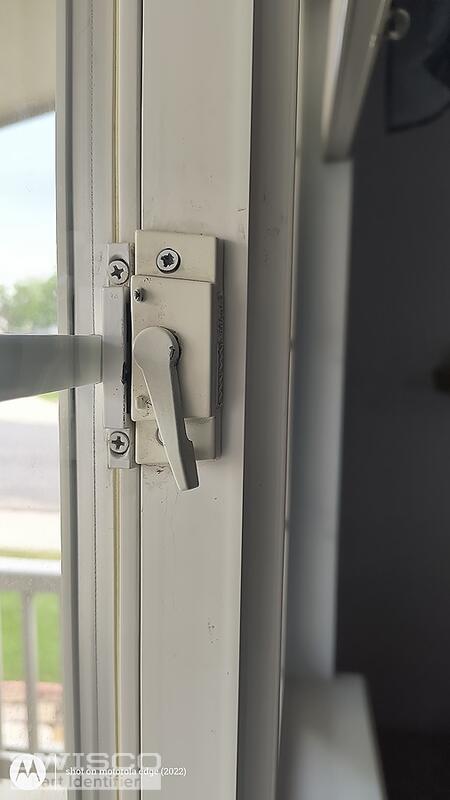

Window is a Milgard slider installed in 1998

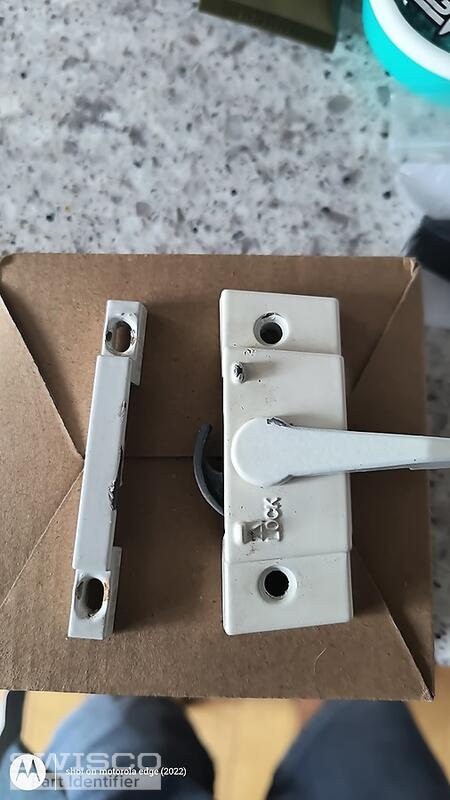

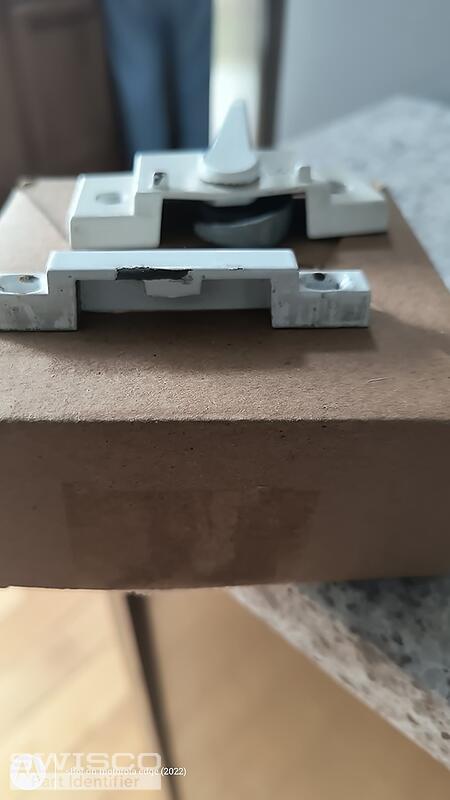

Latch dimensions 1" wide x 2 7/8" long
hole layout 7/16" from face-- 2 1/16" between holes

Latch plate 5/16 wide x 2 13/16 long
2 1/16" between holes

3 user uploaded images

4 Replies

Emily from SWISCO

Jun 21, 2024 1:28 pm

Thanks for reaching out to us. Is the installation hole center spacing 2-1/16"? If so, take a look at the 90-077A with a 7/16" backset. The 90-177 is the compatible keeper. Review the specifications and see what you think.

Alternate image for 90-077A

Home Owner from Thornton CO

Jun 21, 2024 2:02 pm

Thank I will give that a try

Emily from SWISCO

Jun 24, 2024 8:14 am

Great! Please let us know how you make out with your repair and if you have any additional questions.
