Milgard vinyl single hung window

Question

I need to replace the balancers on my Milgard Vinyl window. The window is approximately 20 years old.
sash weighs approximately 16 lbs,
channel is 1/2" in width

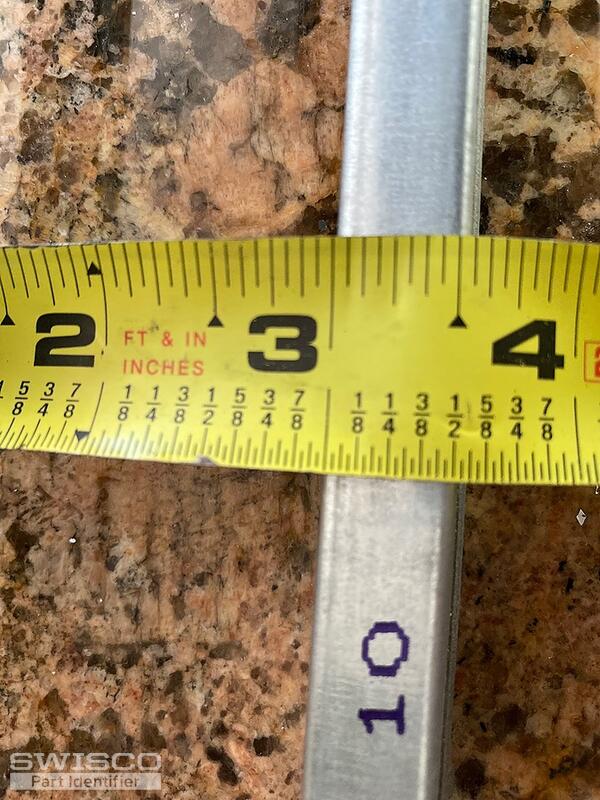

metal part of balancer is 21" long

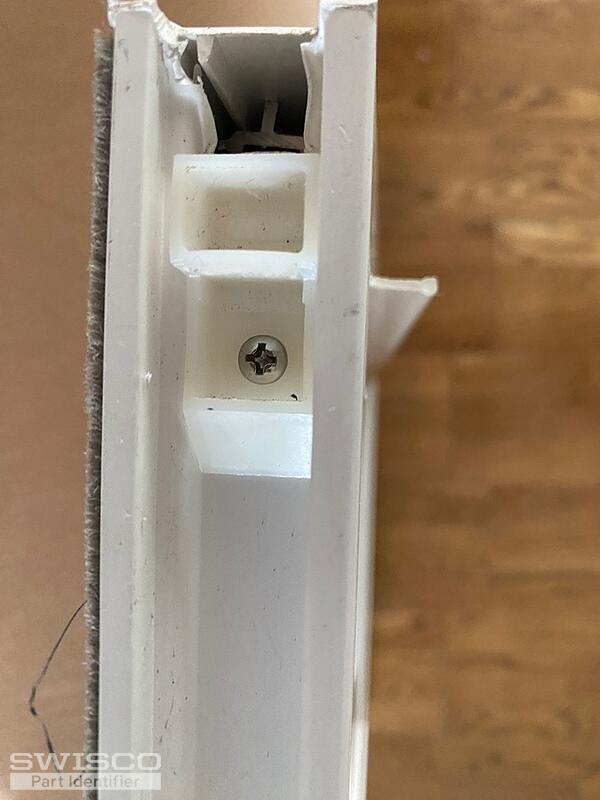

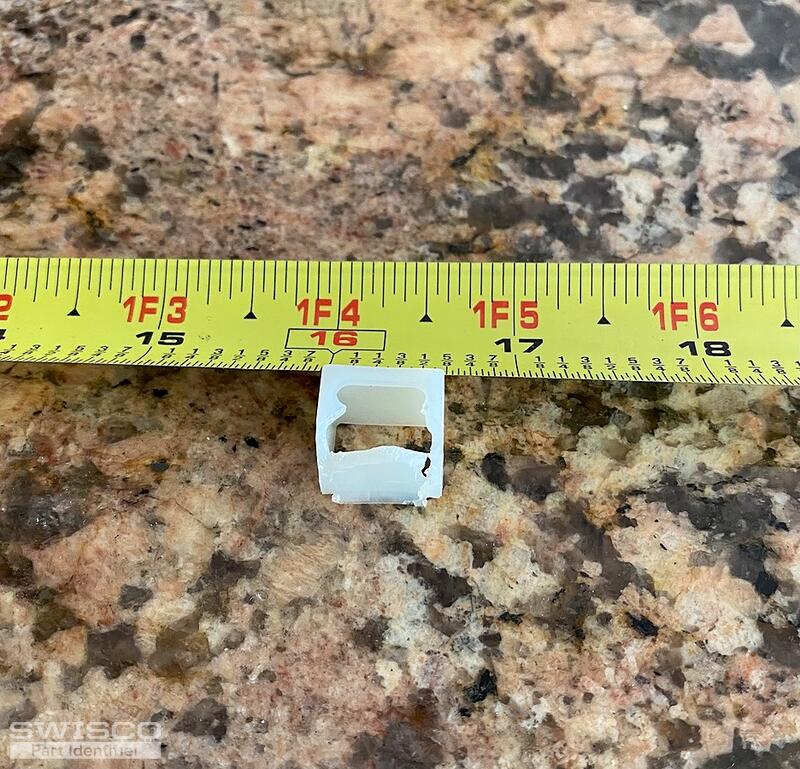

There is also a little plastic part that's 5/8" x 1/2". ( please see all pictures attached).
Please let me know if these are available and the cost. I'll need two.
Thank you,
Judith

Lauren · Accepted Answer

Hi Judith, thank you for posting,

With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

You will need a 21" balance with a 2040 stamp option.

I believe your last picture may be a top sash guide, but it is too damaged to identify. Do you have an undamaged version from the other side or a similar window that we could review? Thank you!

Comparison of the S378, S380 and S385 balance shoes.
