Milgard vinyl window pivot lock and pivot bar

A home owner from Hawaii says:
June 28, 2023

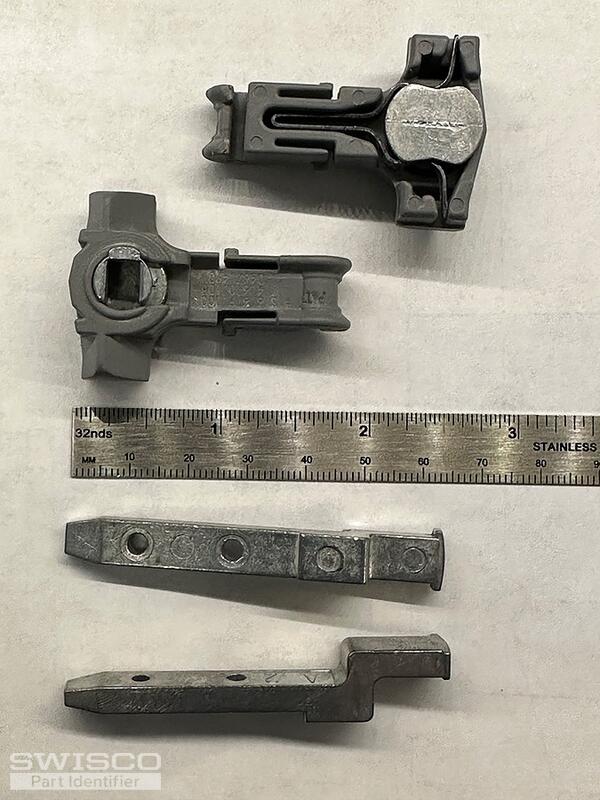

Need a lot of these metal pivots and plastic/metal hybrid window pivot lock assemblies. Most of the window pivot harddware, about 12 years old, have disintegrated in the salty air. They are from Milgard PVC windows. I have about 28 windows which I need to repair. Pivot bars are 2-1/2" long, and Z-shaped. Locks are gray plastic with rotating receiver for teh pivot bar and a metal spring. They include plastic tabs to hold the pivot lock assembly into the balancer. Thanks in advance! Probably going to need over a hundred of each (28 windows, 4 per window)
Thumbnail of the uploaded file named IMG_8032.jpeg
Profile picture of Emily
Emily from SWISCO responded:
June 29, 2023

Hey there!

Thanks for contacting us. Our 15-236 looks like a good match for your old shoe. We don't have an exact match for the pivot bar though. The 26-306 and 26-021 may be worth considering but keep in mind that you only need one mounting hole to align with your old pivot bar for a replacement to work, as you really only need to use one mounting hole. Take a look and see what you think.

A home owner from Hawaii says:
June 29, 2023
Hi Emily; those do look good. I will order a few and see if they fit?if so, I'll order a hundred more. Thanks for your reply!
Gene
Profile picture of Emily
Emily from SWISCO responded:
June 30, 2023

No problem, Gene. I'm happy I could help. Please let me know if you need anything else and best of luck with the repair!

Pivot Bar, 2-1/2"
Pivot Bar, 2-1/2"
26-021
$1.97
Pivot Bar Pair
Pivot Bar Pair
26-306
$8.92
1-1/4" T-Lock Spring Shoe, Closed Cam
1-1/4" T-Lock Spring Shoe, Closed Cam
15-236
$2.20
