Milgard window balance

Handy Person from Grass Valley, CA

Apr 12, 2024 7:58 pm

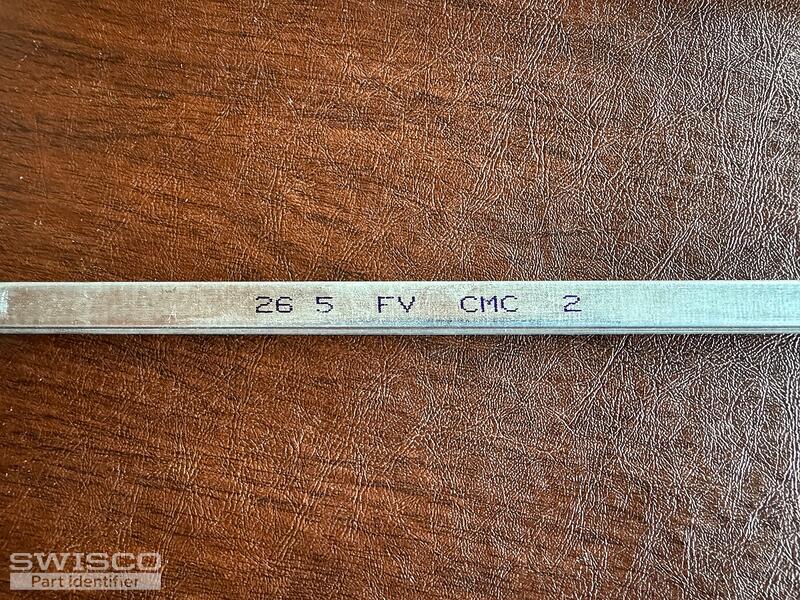

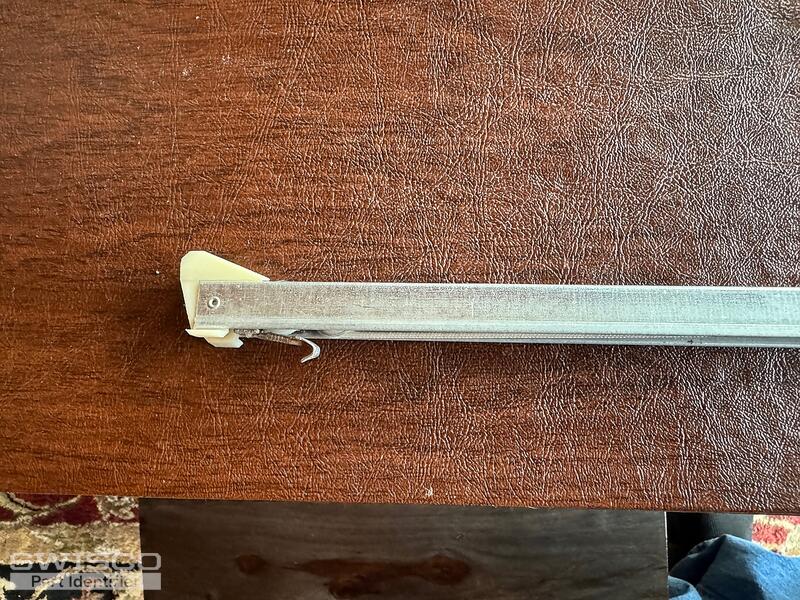

Attached are photos of my window balance. Channel length is 27", and bottom shoe depth measured with calipers is 1.09". Sash weight is 25.4 lbs.

Please let me know which of your balance I should order.

Thanks

Tom

5 user uploaded images

4 Replies

Bob from SWISCO

Apr 12, 2024 10:13 pm

Hey Tom. I'm confident we can replace this channel balance; but to be extra-safe, I'd like to see a picture of where the spring and pulley 'connect' inside the guts of the metal channel. Once I verify a small detail, I should be able to narrow down your options. Many thanks.

Handy Person from Grass Valley, CA

Apr 15, 2024 11:28 pm

Hi Bob

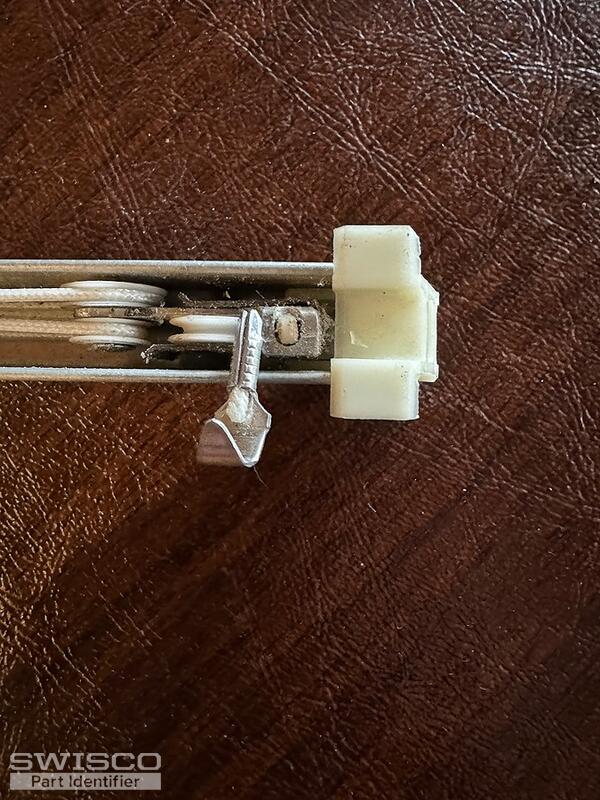

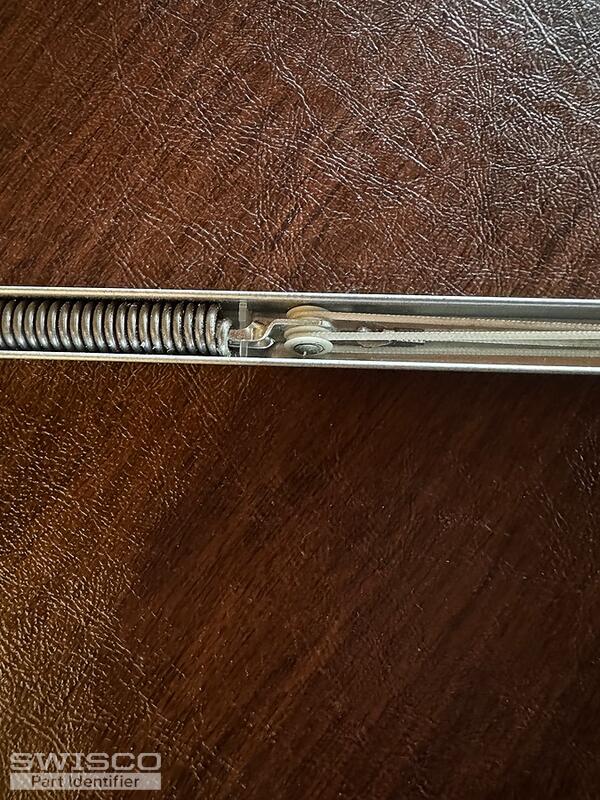

Here are photos you requested. Let me know if you need anything else.

Tom

2 user uploaded images

Bob from SWISCO

Apr 16, 2024 12:17 am

Thanks Tom. So long as the shoe depth is greater than 1", then I believe this is an S385-27, stamped 2650. Let me know if you have any questions.
