Milgard window balance broken

Question

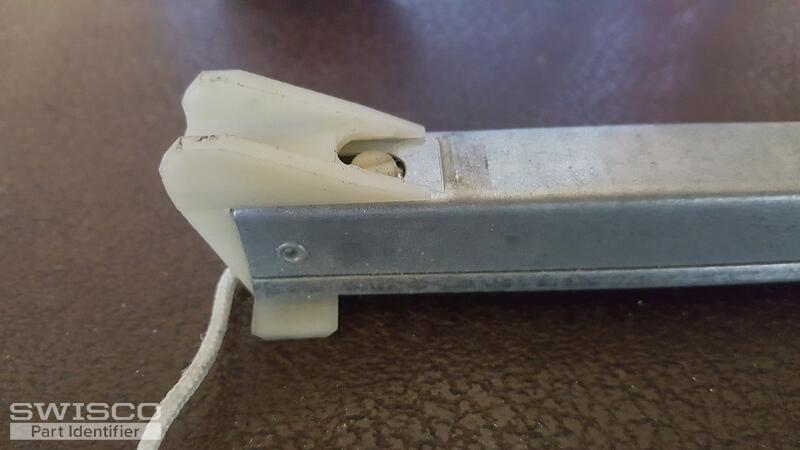

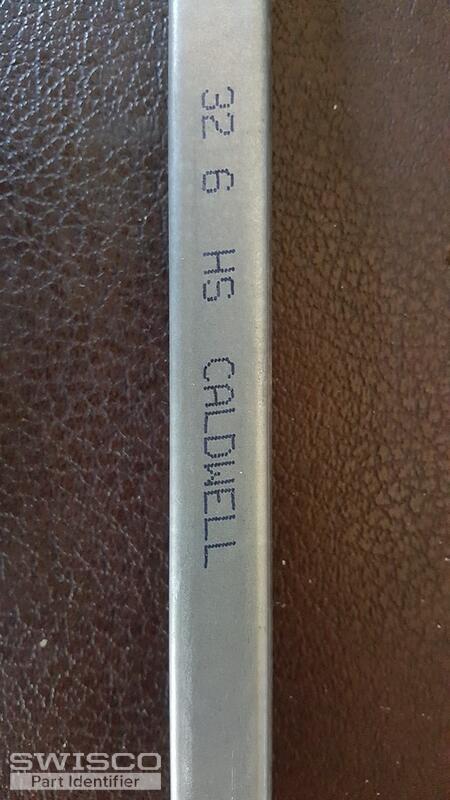

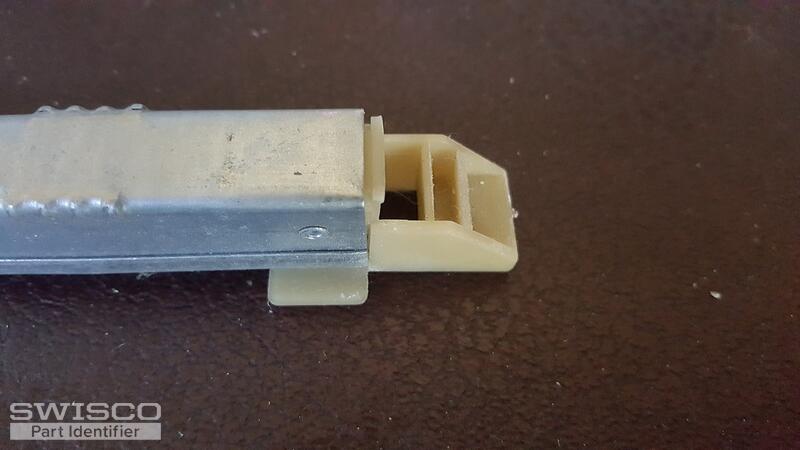

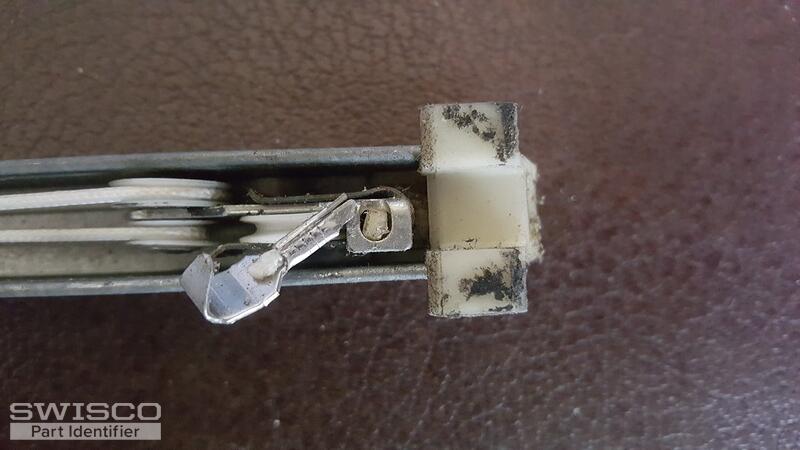

I need two window balances for my window.  The metal length is 33 inches.  The metal width is about 9/16 inch.  The metal depth is about 5/8 inch.  The weight of the sash is 34.8 lbs.   Please help to identify the replacement balance.

Casey · Accepted Answer

Hello,

With this combination of attachments, you could have either an S380-33 or S385-33 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 3260 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
