Milgard window balancer

Home Owner from Colorado

Mar 11, 2025 1:25 pm

The metal portion is 27 in long. The stamp reads 26 5 EX CMC 4. This looks like the S385-27 part but the sash weight code has a blank for the third digit, I.e., a space between 26 and 5. Also the existing part doesn't have any holes along the sides but it still seems to be the only match.

1 user uploaded image

8 Replies

Emily from SWISCO

Mar 13, 2025 9:50 am

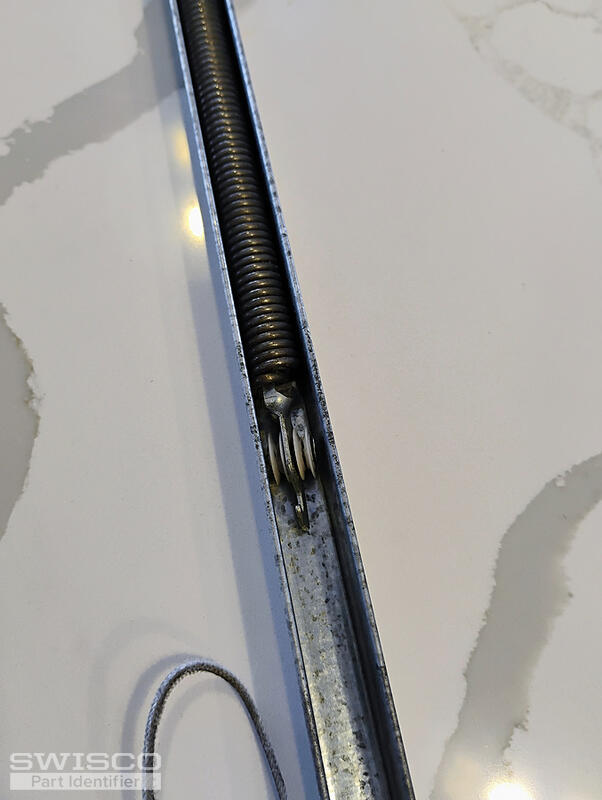

Thanks for reaching out to us. We're happy to look into. Can you show us the top and bottom fittings of the balance along with the confirmed depth of the bottom fitting? We would also like to see an image of the inside of the balance’s metal channel, where the innerspring connects to the pulley mechanism; this connection is located in the middle of the channel.

Home Owner from Colorado

Mar 14, 2025 1:51 pm

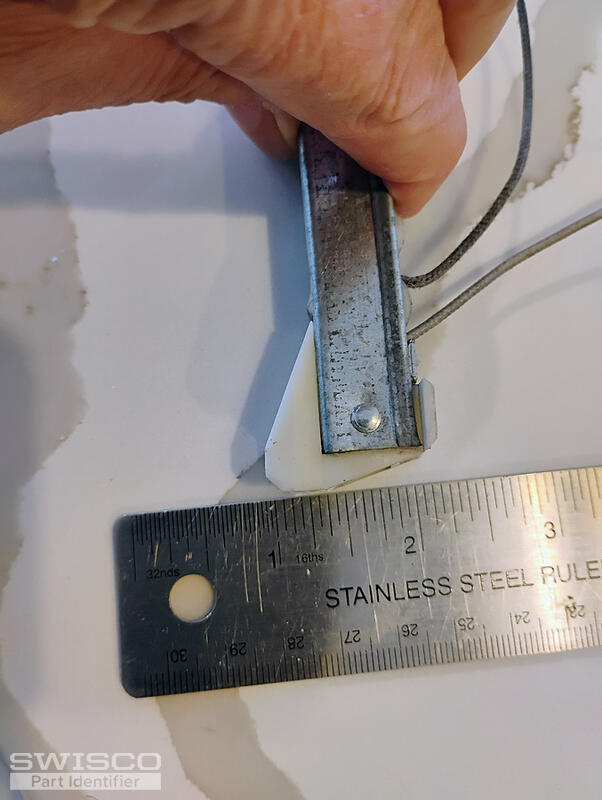

Hopefully these are the pictures you need. The depth of the bottom fitting seems to be slightly more than 1 and 1/16 in.

4 user uploaded images

Emily from SWISCO

Mar 17, 2025 8:46 am

Great thank you!

Please review the S385-27 channel balance that has a 1-3/32" shoe depth. The original stamp will translate to a 2650 stamp option that can support a 26-30 pound window sash. Please let us know if you have any additional questions!

Close up view of the S385 balance shoe.

Home Owner from Colorado

Mar 17, 2025 2:01 pm

That measurement seems to match what I have.

Emily from SWISCO

Mar 17, 2025 2:28 pm

Great! Orders can be placed directly online from the product page or by calling us at (888) 991-1929 to assist. Let us know if you have any additional questions.

Home Owner from Colorado

Mar 18, 2025 3:56 pm

Thank you. I have a few other window balancers to replace. I know the lengths and weight rating might vary, but would you expect them to all be the same model?
Also, do you sell entire lower windows for replacement?

Emily from SWISCO

Mar 19, 2025 8:41 am

If the window brand is the same, the Series of balance should be the same but we recommend checking just to be sure you get the right hardware for your repairs.
