Milgard window replacement

Home Owner from Washington State

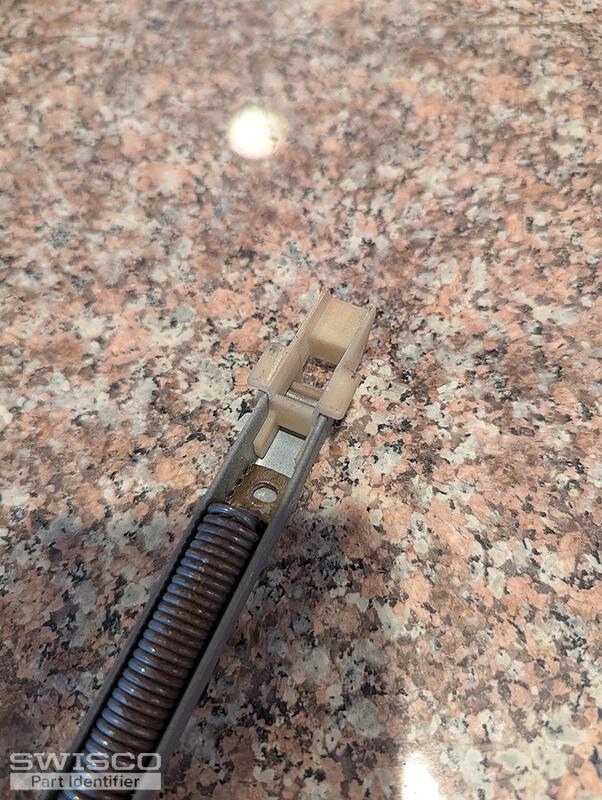

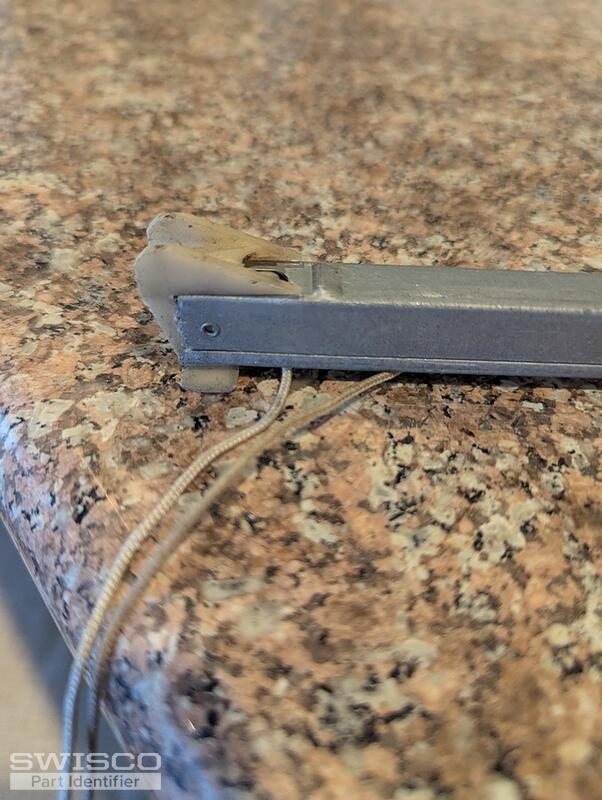

It is a non-tilt, Milgard window, 30 inches tall, half inch width and 5/8th inch depth, I sent 5 pictures with the stamp too. Please let me know if you need more information.
5 user uploaded images
4 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for your post! I'm confident we can supply the replacements for your window balances. Although, to identify their replacement matches, I'll need to see a photo of the top and bottom attachments on them.

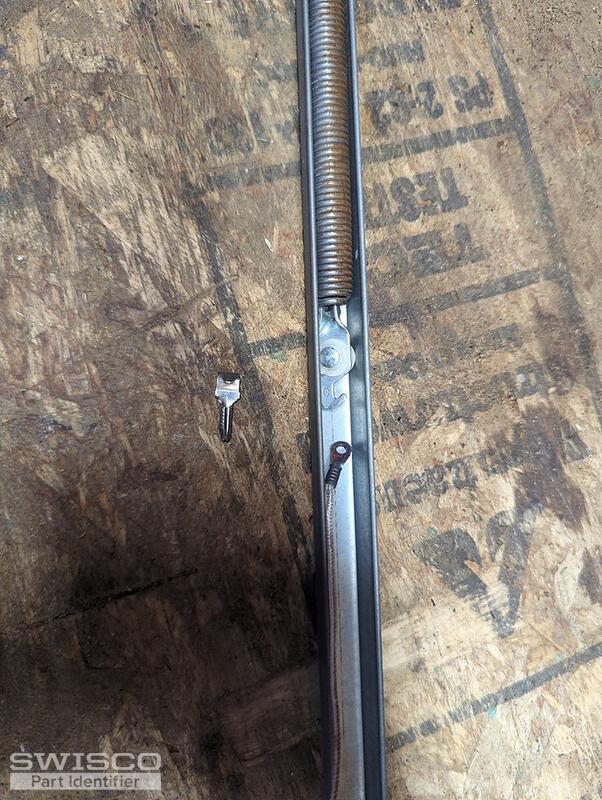

I'll also need to see a clear photo of the piece connecting the spring and the string in the middle/center of the balance.

Please let me know if you have any questions.

Home Owner from Washington State

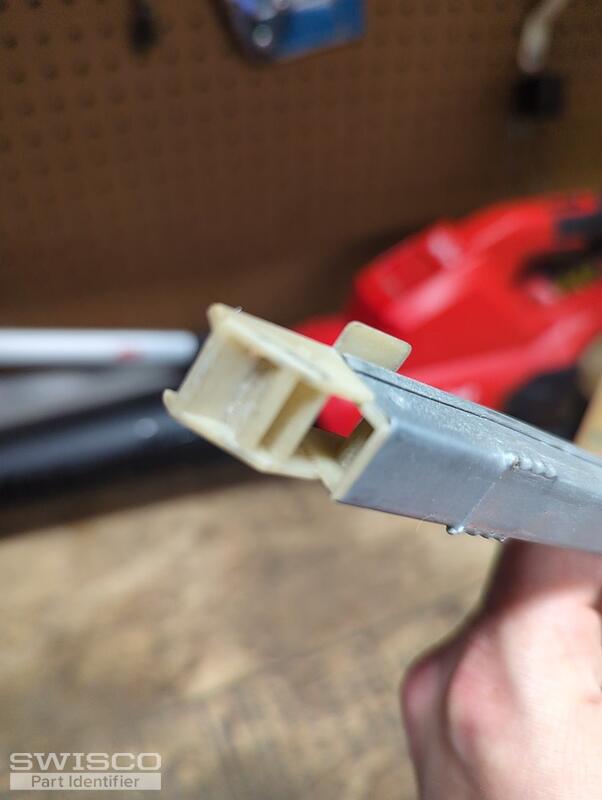

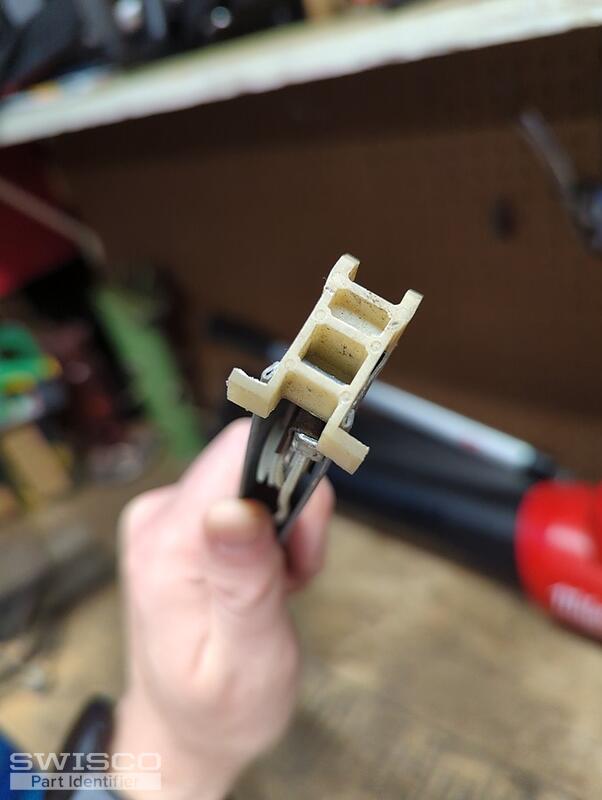

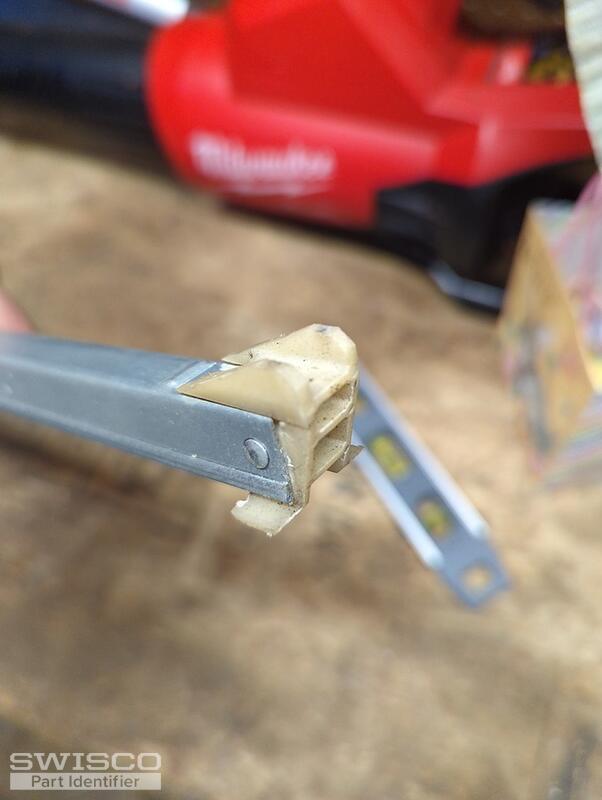

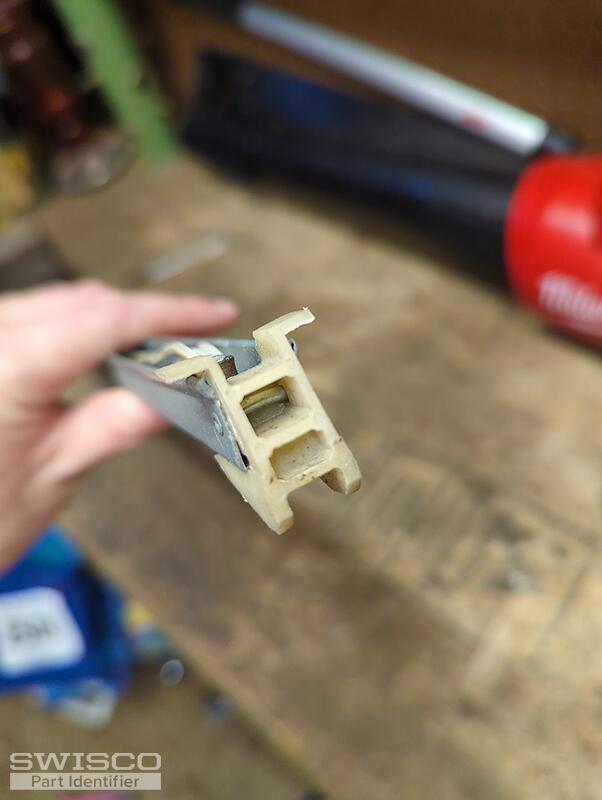

Please see attached.
5 user uploaded images
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks. Your balances are a match for either the S380-30 or the S385-30. To determine which of these is the correct replacement, you'll need to measure the depth of your shoe.

Our 2930 stamp should work for the window. A pair of these will support a sash weighing 16 to 23lbs.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
