Milgaurd balance rod replacement

Question

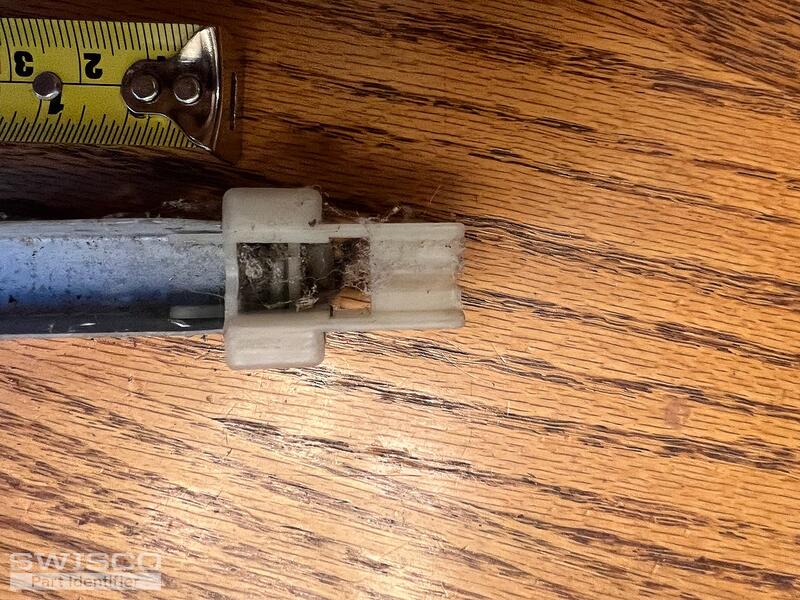

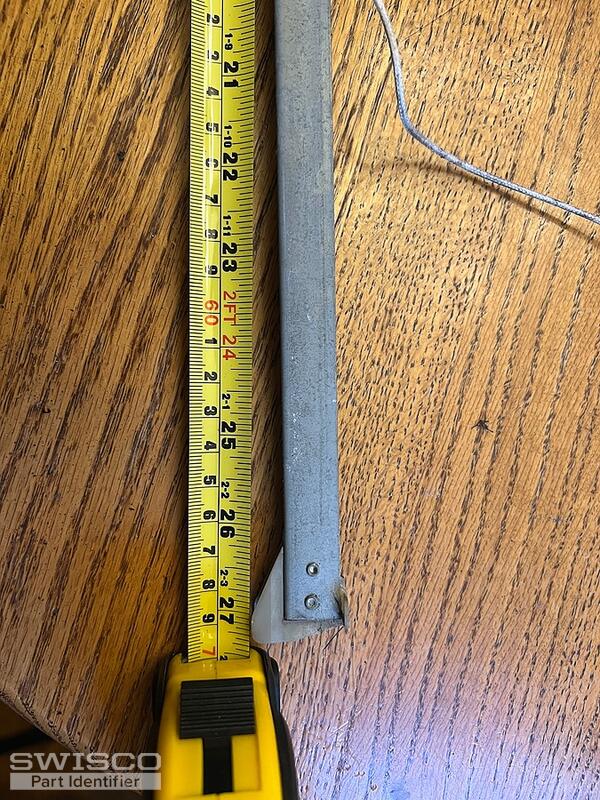

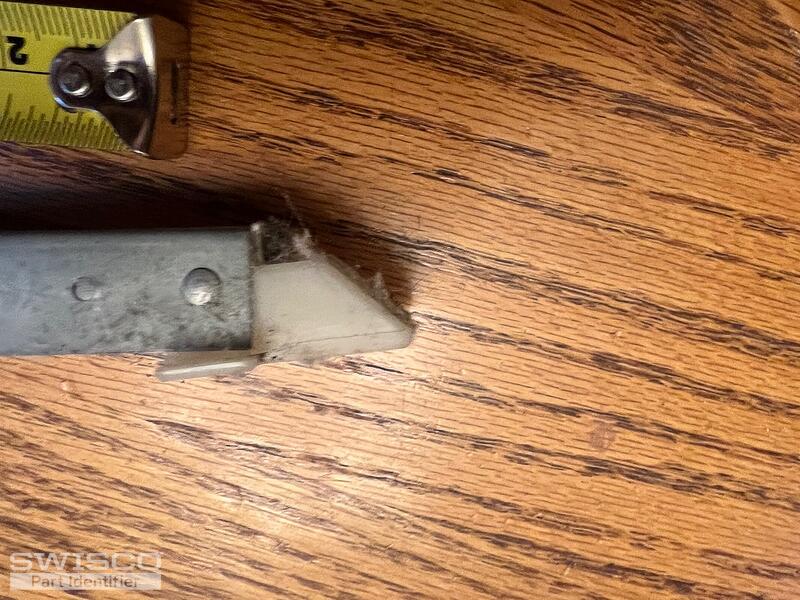

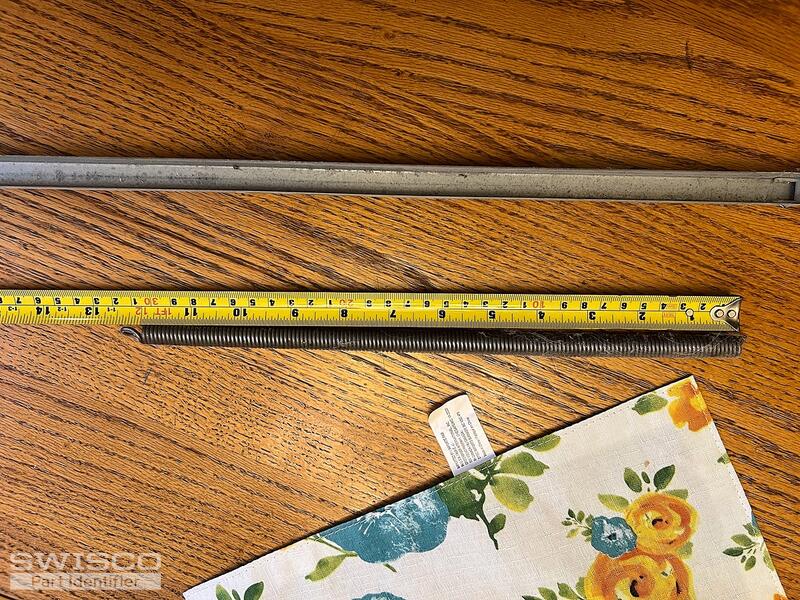

Looking to get replacement balance rods for my Milgaurd windows 1989 vintage. Metal piece measure 27" long w/o the plastic guide ends that are riveted to it. Spring length is 12" long approximately 5/8" wide and 3/4" tall

Thank you,

Steven

Thank you,

Steven

Lauren · Accepted Answer

Hello, thank you for posting,

With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

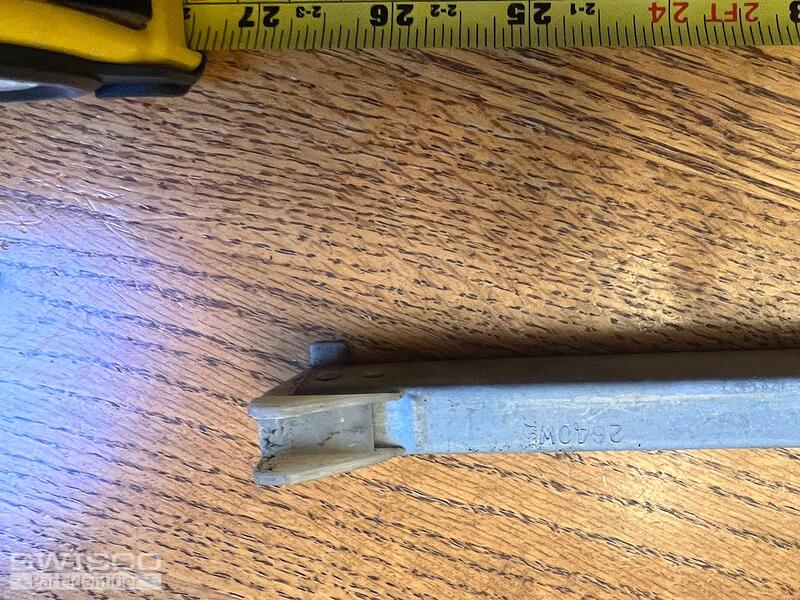

You will need a 27" balance with a 2640 stamp option. Please review and let us know if you have any additional questions!

Comparison of the S378, S380 and S385 balance shoes.
