Milguard 324 cv cmc 7 33 " channel
Contractor from Redlands,Ca 92374
Dec 7, 2022 11:53 am

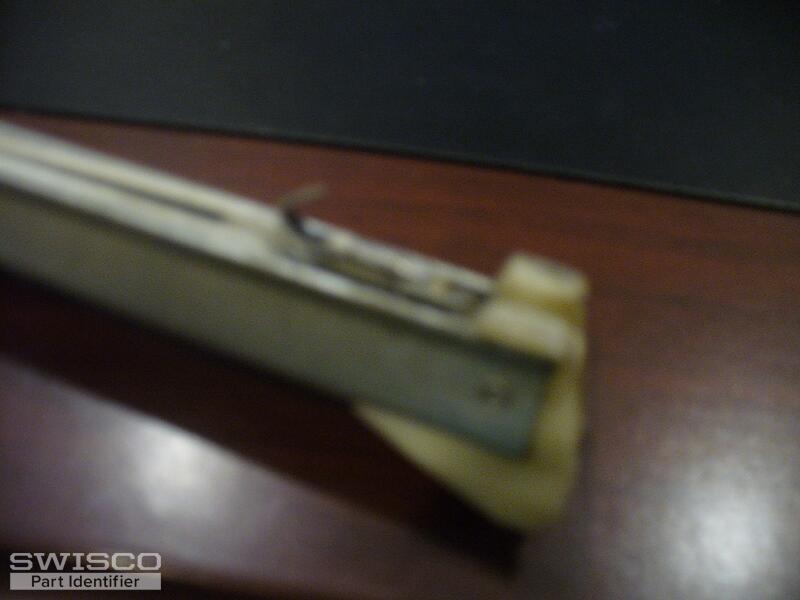

Milguard balancer.
4 user uploaded images
4 Replies
Casey from SWISCO
Dec 8, 2022 2:15 pm
Hello,
With this combination of attachments, you could have either an S380-33 or S385-33 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 3240 spring strength options for your replacement balances.
Thank you and let us know if you have any other questions or concerns.
Comparison of the S378, S380 and S385 balance shoes.
Contractor from Redlands,Ca 92374
Dec 8, 2022 3:27 pm
It appears s 380-33 matches the bottom attachment
Casey from SWISCO
Dec 8, 2022 4:13 pm
Great, then you should be good to go!
