Milguard Casement window

Quick Learner from Hawaii

Jun 5, 2017 10:30 pm

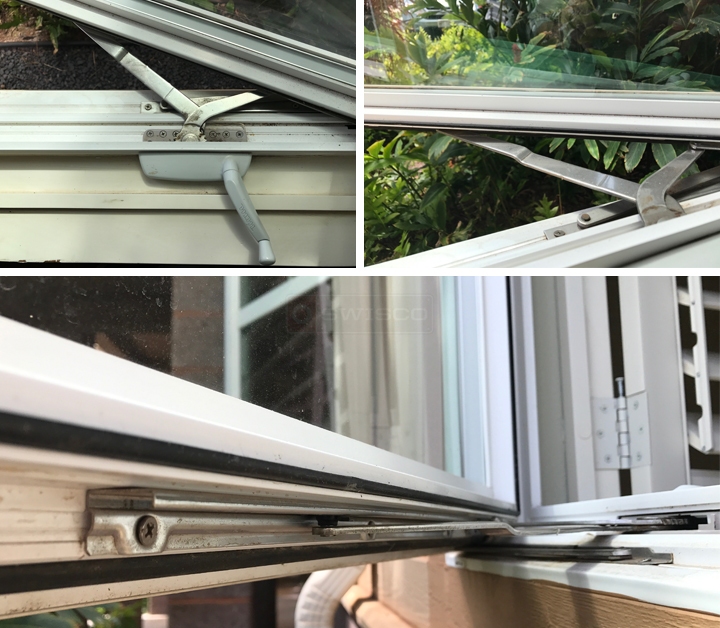

The plastic bushing on the guide track for one of my Milguard casement windows has disappeared. Do I need to replace the entire crank arm or do you have a replacement bushing? Thanks, Peter SO# Oct 6 2007 12:44 0275 1352440 004 SUCL LOWE 4U 197

User submitted photos of a window operator.

7 Replies

Tom from SWISCO

Jun 9, 2017 8:17 am

I'm not sure what it is you're referring to exactly. Your operator appears to match our 39-253R and 39-253L. These use a 39-529 guide to interact with the track. Could the 39-529 be what you need?

Quick Learner from Hawaii (HI)

Jun 9, 2017 11:39 pm

Yes, 39-253L is the window operator. My concern is how the longer arm connects to the glide track on the window. A black plastic bushing connects the two and slides along the glide track. Is there a part # for this bushing? That's the part I am missing. Thanks, Peter

Tom from SWISCO

Jun 12, 2017 10:39 am

Would you be able to disconnect the operator arm from the track and show me a clear picture of the bushing? It is too obscured while still in the track.

Quick Learner from Hawaii (HI)

Jun 12, 2017 3:09 pm

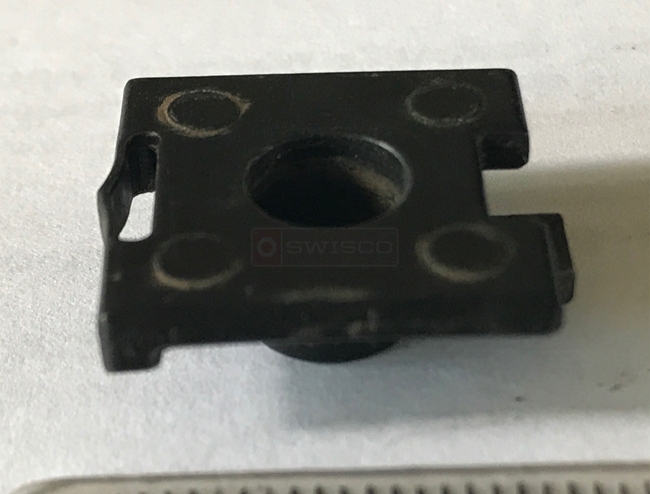

This is the plastic clip, which slides along the glide track. Without it, the window can't be opened or closed. Thanks, Peter

User submitted image of their window hardware.

Tom from SWISCO

Jun 13, 2017 2:16 pm

Thanks. Did you see the 39-529 that I recommended in my first response back on the 9th? That looks like a match.

Quick Learner from Hawaii (HI)

Jun 13, 2017 2:38 pm

Yes, thanks!
