Milguard Replacement Channels - 2 different windows

Quick Learner from California
Hi,
Trying to figure out what the proper replacement channels are for two different sized windows I have.

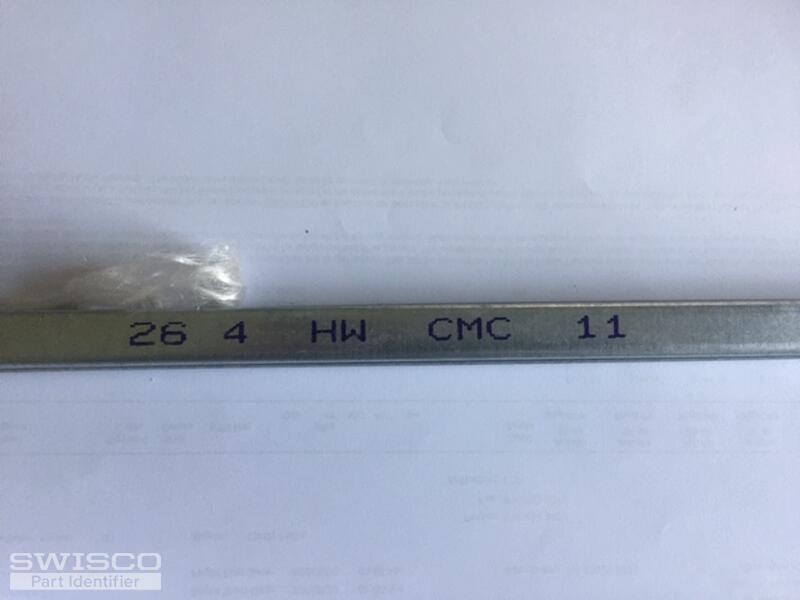

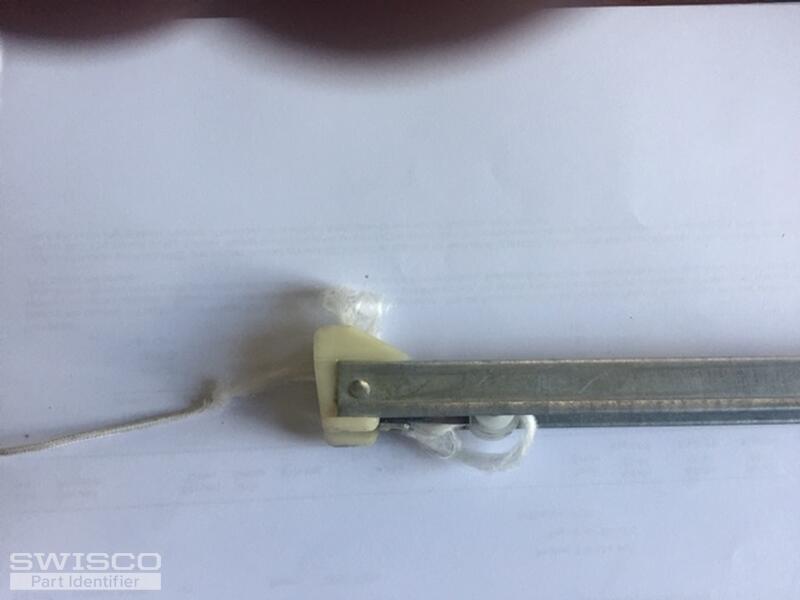

On both, the measurements of the metal are 1 inch longer than what is in the marking (26 vs 27) & (29 vs 30)
5 user uploaded images
2 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2640 strength options for the 27" balances and 2950 options for the 30" balances.

Thank you and let us know if you have any other questions or concerns.


Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
