Milguard replacement balancer : SWISCO.com

Handy Person from CA

Apr 18, 2025 11:47 pm

I'm in need of a Millguard replacement channel balancer. My measurement is 9/16 wide & Deep, by 30 inches long. What would I order from you to replace that?

John

9 Replies

Emily from SWISCO

Apr 22, 2025 10:47 am

Hi there!

Thanks for reaching out to us. We're happy to look into this. Can you upload photos of the top and bottom fittings of the balance? We'd also like to see the clip attached to the end of the pulley cord. Additionally, can you confirm the stamp printed on the back of the metal channel?

Handy Person from CA

Apr 22, 2025 11:59 am

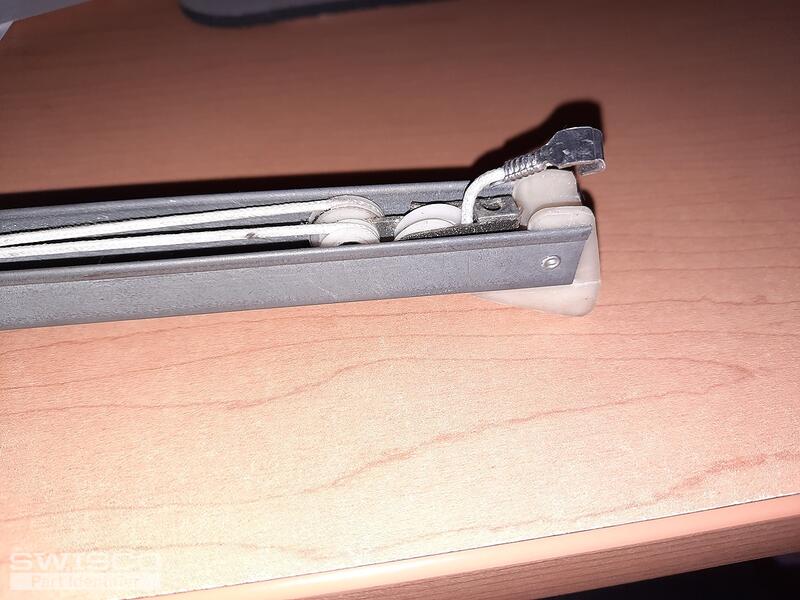

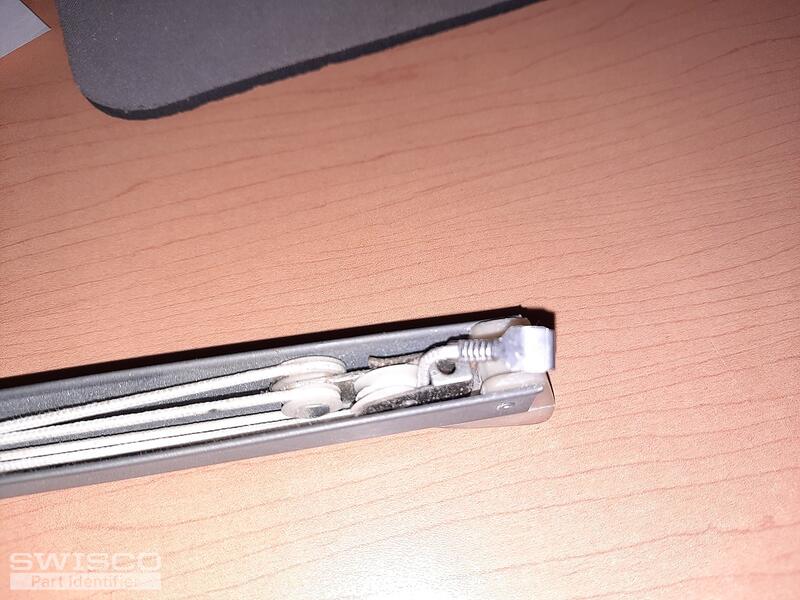

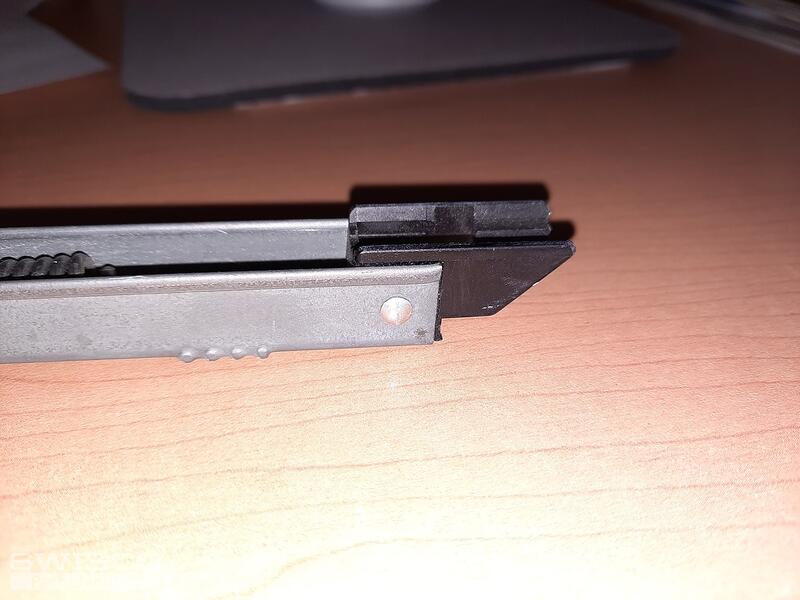

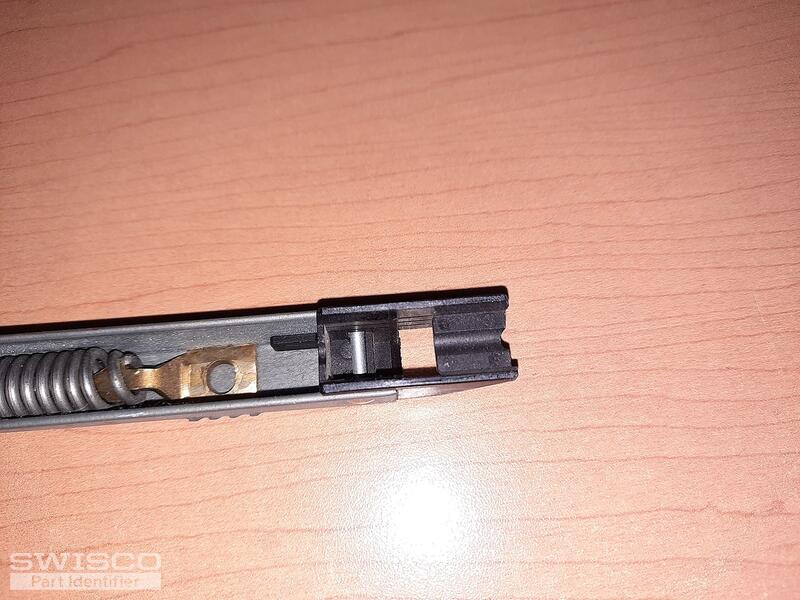

Here are the pictures you've asked for.

4 user uploaded images

Emily from SWISCO

Apr 22, 2025 3:29 pm

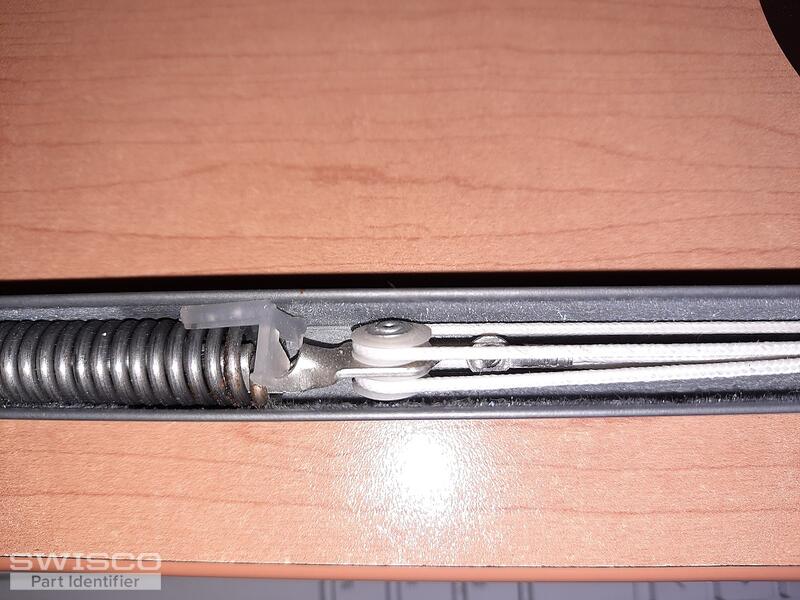

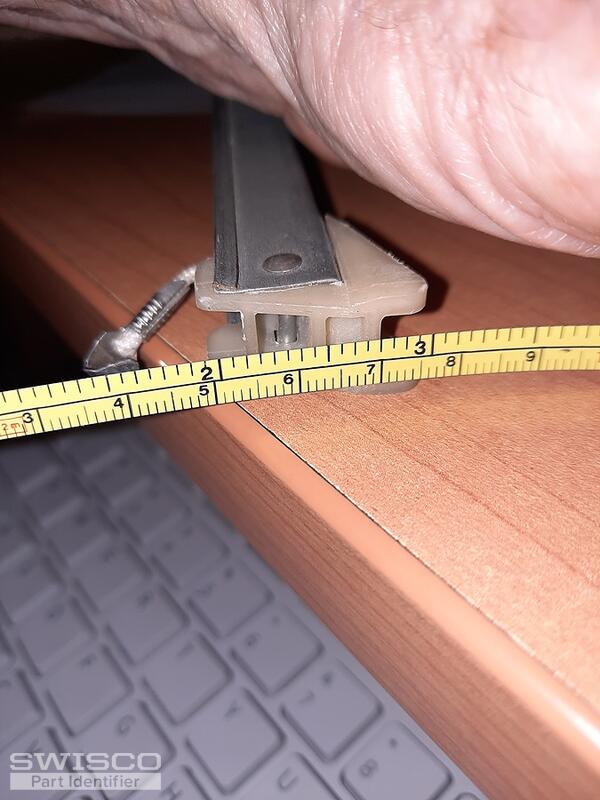

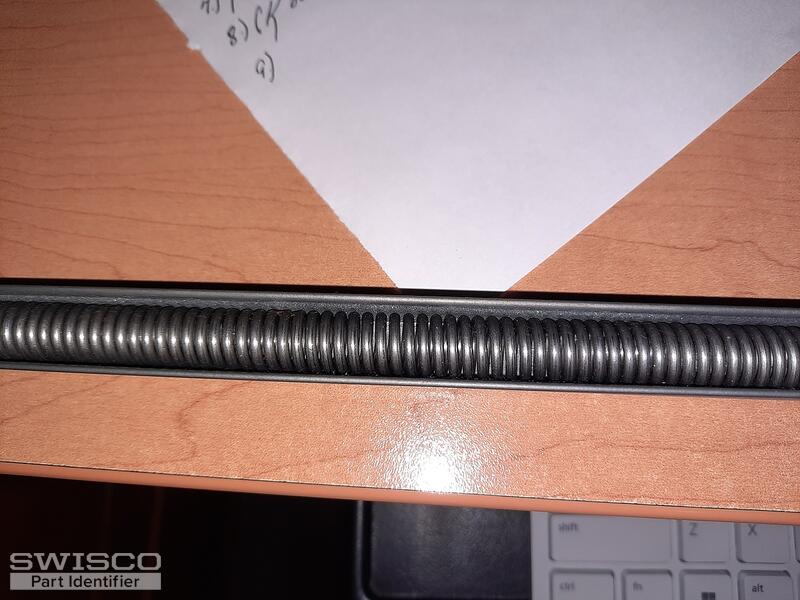

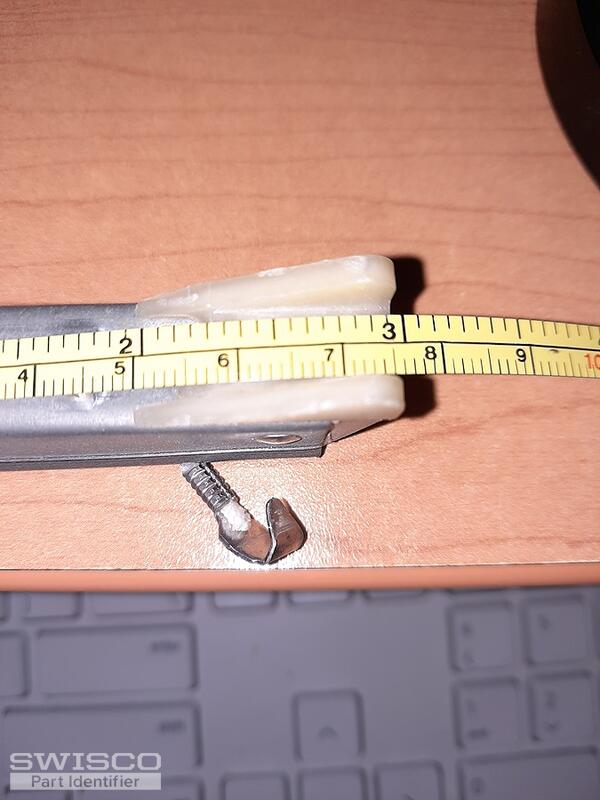

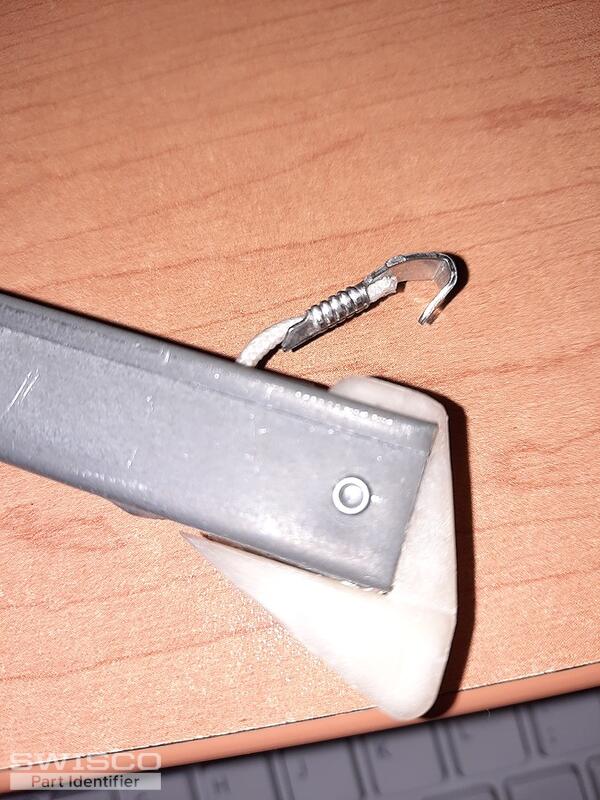

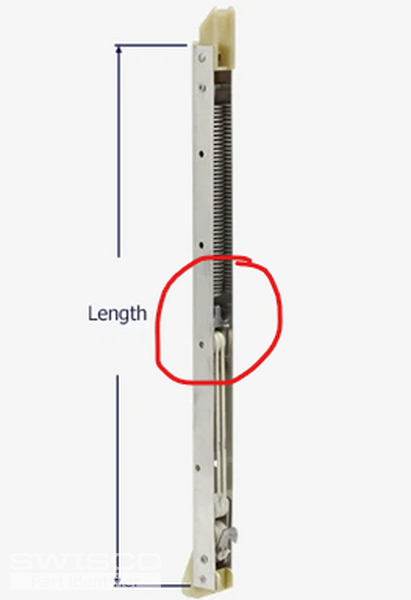

Thank you! Are you able to confirm the stamp on the back of the balance? We would also like to see a photo of the middle portion of the balance as shown below. Additionally, can you measure the bottom shoe's depth and tell us what you get?

Profile view of a winged balance attachment

Handy Person from CA

Apr 22, 2025 11:24 pm

Stamp: 28 3 Li/1

5 user uploaded images

Emily from SWISCO

Apr 23, 2025 8:35 am

Thank you for the additional photos! Your balance matches the Series 351 or Series 390 with the 2830 stamp option. The best match will depend on the depth of the bottom shoe, as shown below. The metal channel should measure 29" long, but please let us know if that differs.

Please let me know if you have any questions!

Comparison of the S351 and S390 balance shoes.

Handy Person from CA

Apr 23, 2025 10:53 am

The lenght of the metal rails is 29 inches. The depth of shoes is 1 1/8.

Handy Person from CA

Apr 23, 2025 10:55 am

The lenght of the metal rails is 29 inches. The depth of shoes is 1 1/8.

Can I just buy two S390's to see if they work?

Emily from SWISCO

Apr 24, 2025 8:17 am

Great! In that case, you'd want the S390-29 with the 2830 stamp option. You can certainly buy two of them to start. All orders can be placed on our website at your convenience.
