Millard window. 14 lbs

A quick learner from PENN Valley CA says:
January 22, 2022

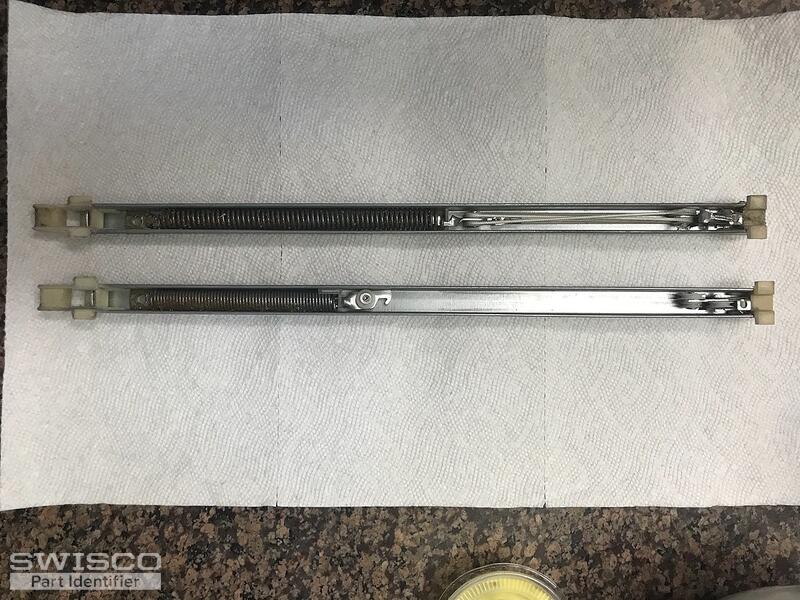

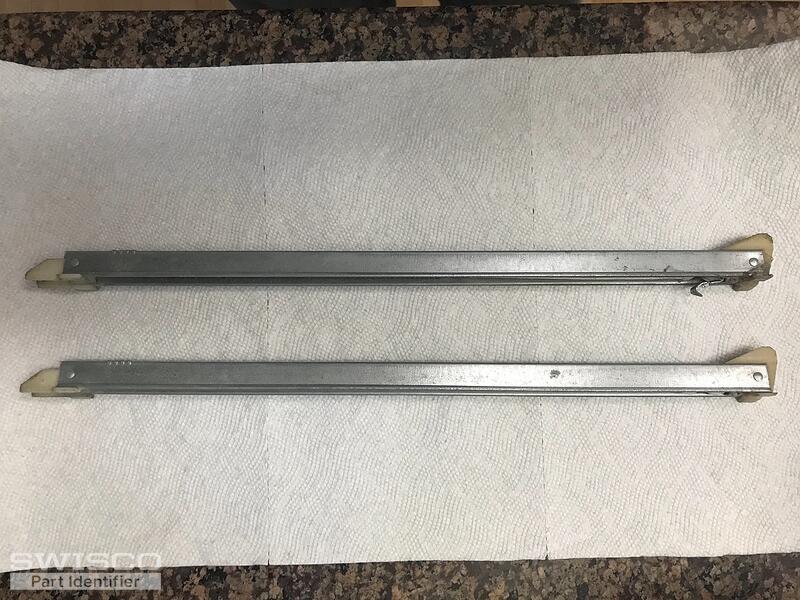

Looking for replacements for these old balances
Thumbnail of the uploaded file named 98D85DE4-7A02-409F-81F0-213080709E80.jpeg
Thumbnail of the uploaded file named D7AEF80E-DB8D-4328-86D4-3CDF4457B2B6.jpeg
Thumbnail of the uploaded file named 4EDE82D1-4BAA-4544-95AE-5BDE6410DD86.jpeg
Thumbnail of the uploaded file named 7E16F773-5484-4CDC-B970-E42EBA73F761.jpeg
Thumbnail of the uploaded file named B7791595-6326-4BBD-ACE5-38F80CEF3B93.jpeg
Profile picture of Emily
Emily from SWISCO responded:
January 24, 2022

Hi there!

With this combination of attachments, you could have either an S380-15 or S385-15 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You will also need the 1450 spring strength option, which supports a sash weighing 13 to 17 lbs.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
15" Series 380 Channel Balance
15" Series 380 Channel Balance
S380-15
$9.34
15" Series 385 Channel Balance
15" Series 385 Channel Balance
S385-15
$9.34
