Millgard window channel balances

Home Owner from South San Francisco

Aug 17, 2025 6:56 pm

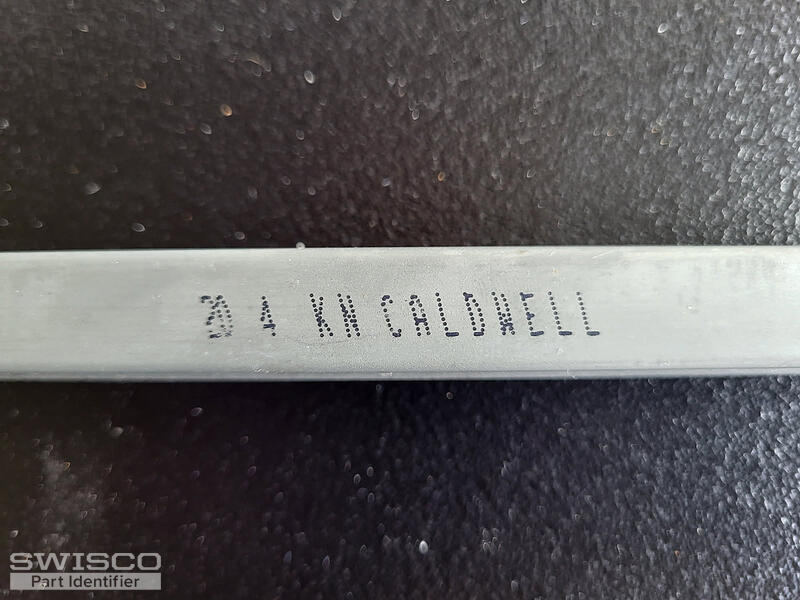

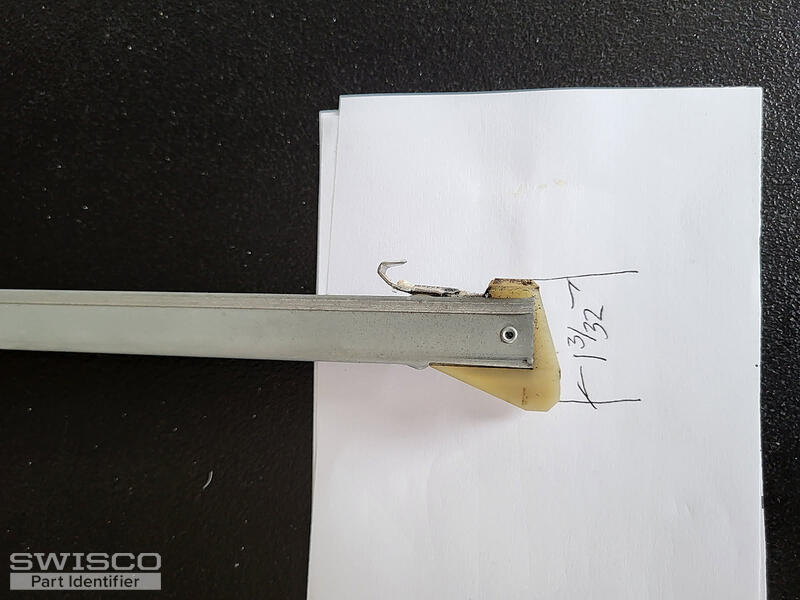

code on unit 24 Caldwell; metal 20 inches long; unit is 1/2 inch wide; bottom attachment is 1-3/32 inch; no bottom roller fitting; weight approximately 18 - 20 lbs.

5 user uploaded images

4 Replies

Jasmine from SWISCO

Aug 19, 2025 12:06 pm

Thanks for writing in! We can certainly supply the replacement balances you need for your Milgard window, Caldwell balances. Although, to identify the correct match, I'll need to see a clearer photo of the spring side of the channel.

I'm particularly looking to see a photo of the bracket connecting the string and the spring in the middle of the balance.

Please let me know if you have any questions.

Home Owner from South San Francisco

Aug 19, 2025 7:20 pm

Hello Jasmine -

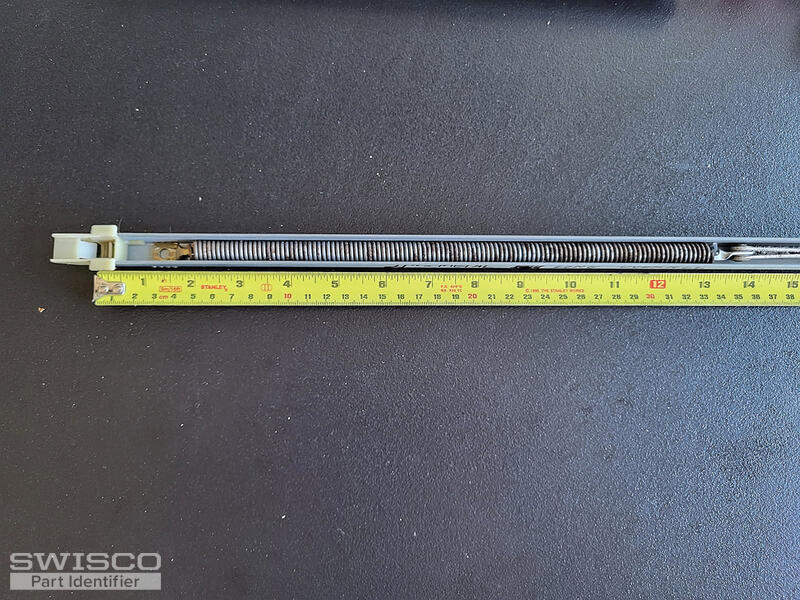

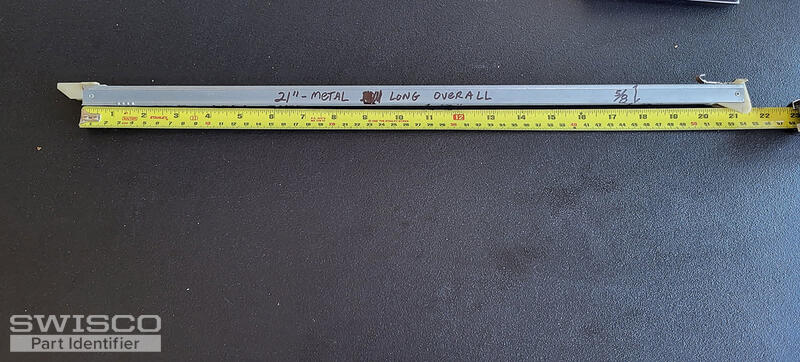

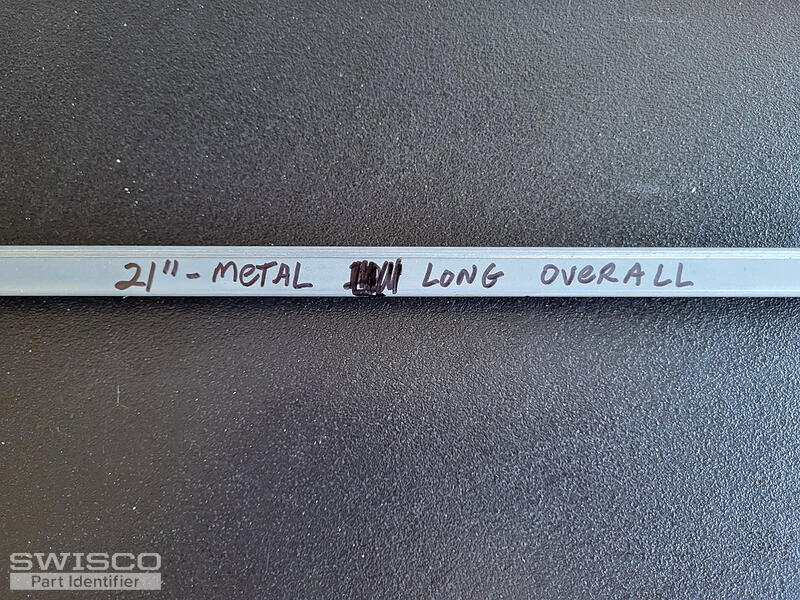

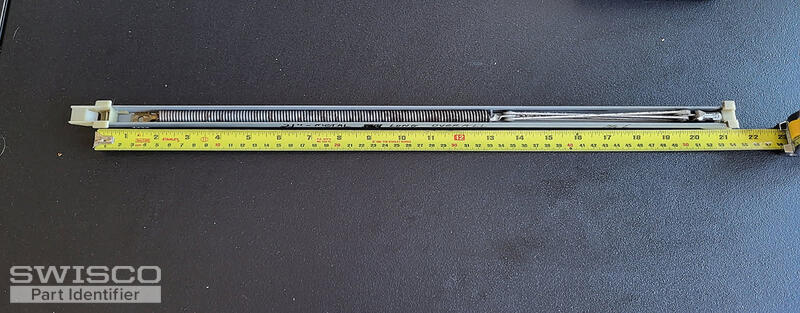

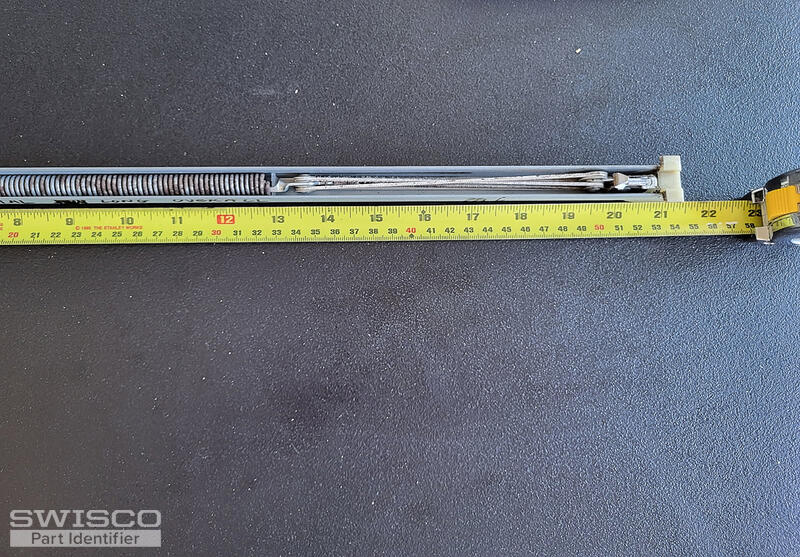

Thank you for your reply. I am attaching more photos for your review. Please note, the metal is 21 inches ( I previously told you it was 20 inches ).
Thank you,
Johnny

than

5 user uploaded images

Jasmine from SWISCO

Aug 20, 2025 8:57 am

Hi Johnny,

Thanks for confirming. You'll need the S385-21 to replace your balances. The 2040 stamp will support a sash weighing between 15 to 23lbs. Given that you've confirmed an approximate weight, you may want to double check but it should be okay.

Please let me know if you have any questions.
