Millguard balance replacement

Home Owner from calif.
Aug 3, 2022 2:10 pm

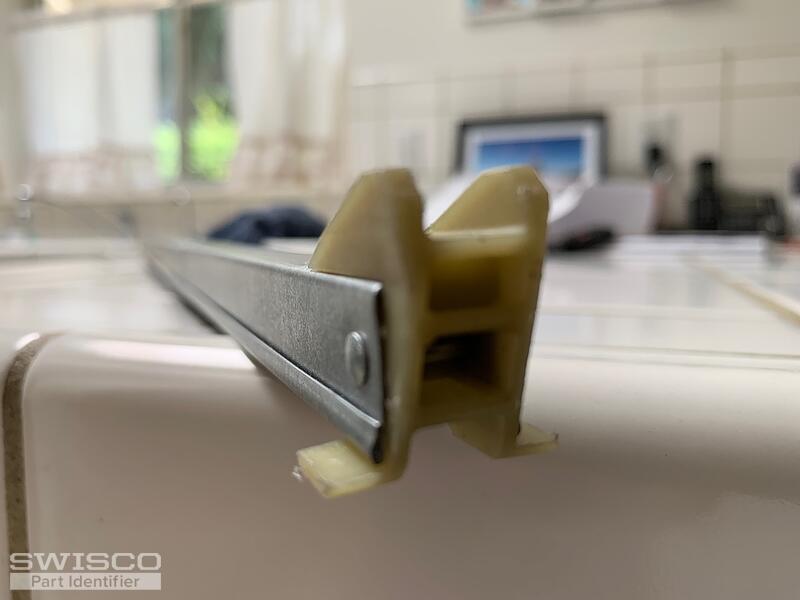

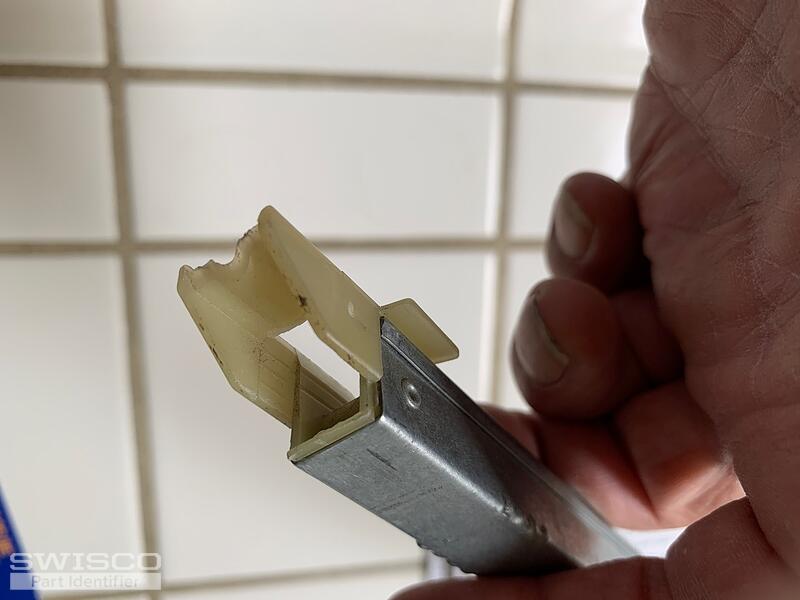

Markings -- 23 4 AQ CALDWELL
Channel is 24" long ( no plastic )
IMG_0731 IMG_0734 IMG_0737 IMG_0736 IMG_0742
5 user uploaded images
1 Replies
Casey
Casey from SWISCO
Aug 8, 2022 3:49 pm
SWISCO
EXPERT

Hello,

With this combination of attachments, you could have either an S380-24 or S385-24 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2340 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
