Quick Learner from Toronto, ON

Apr 14, 2023 7:58 am

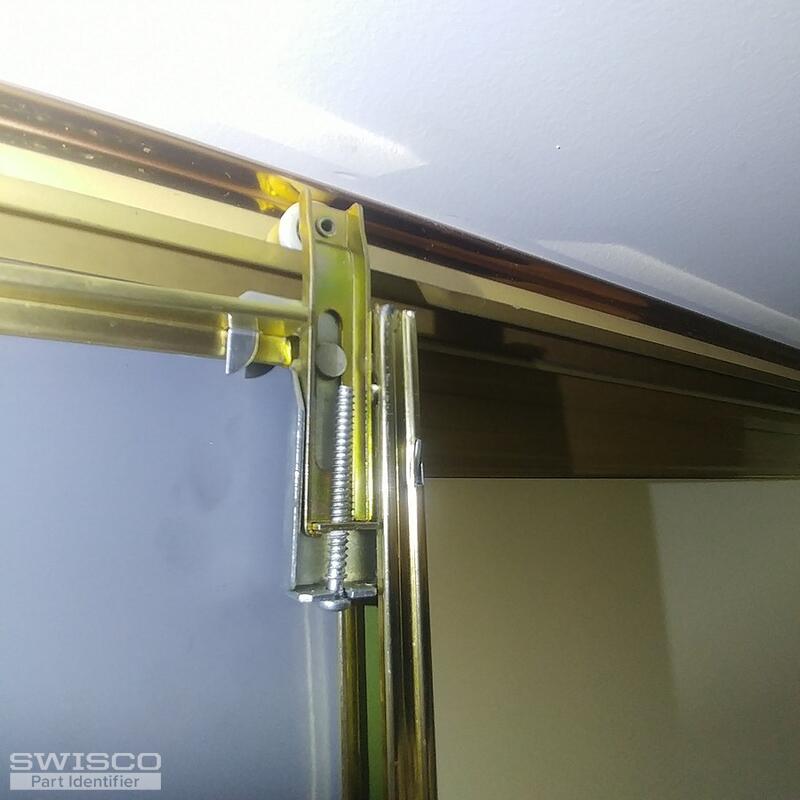

Can you identify the roller part in the picture of a mirror sliding closet door.

1 user uploaded image

4 Replies

Casey from SWISCO

Apr 17, 2023 2:55 pm

Hello,

Take a look and compare the dimensions of the 23-017 top roller pair to yours. We'll include the images from our product page below. If you notice any discrepancies, let us know and we can go from there. Thank you!

Dimensions for 23-017

Alternate view of 23-017

Quick Learner from Toronto, ON

Apr 17, 2023 4:38 pm

HI Casey, can you include a photo of the other side of the roller showing the adjustment 'screw' side?

By the way, do you or do you techs have experience getting the existing rollers out of the frames. Is there a metal flap to be folded back or should it snap in and out?

Thanks

Paul

Casey from SWISCO

Apr 18, 2023 9:27 am

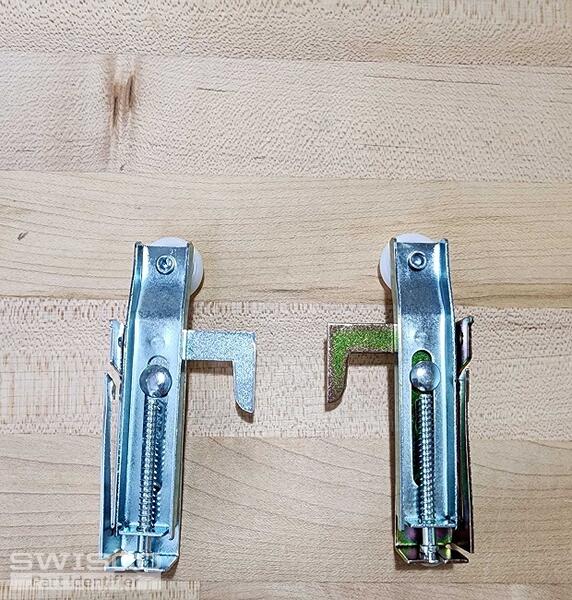

Sure, we pulled one of the 23-017 roller pairs from our inventory. See the photo of the adjustment side of these parts below.

As for removing them, we recommend removing the door from the track and placing it on a flat surface. Then, use something like needlenose pliers to get a good grip on the housing and manipulate it back and forth to disengage the hook portion from the door frame. There's no special trick to up but it can require some work and elbow grease.
