Mirrored Closet Door Wheel - Masterful

Home Owner from North Carolina

May 20, 2015 10:57 pm

This assembly looks similar to your part # 23-028 (concave wheel). Width dimension of my part is 2 1/2" versus 2 1/4" with the 23-028. What replacement part will work best?

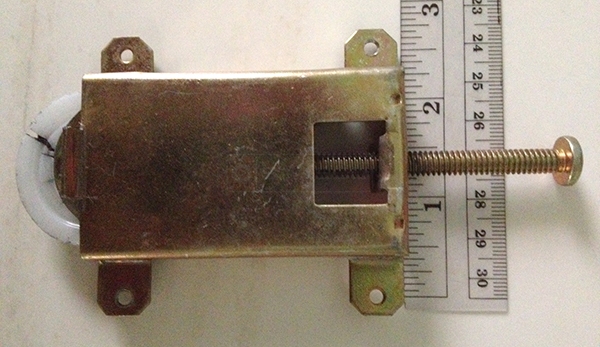

User submitted a photo of a closet door roller.

4 Replies

Tom from SWISCO

May 21, 2015 12:14 pm

Thanks for posting. That 2-1/4" actually isn't the width, it's the distance between the two screw holes. Can you confirm that the distance between the holes isn't 2-1/4"? Make sure to measure from the center of each hole, not their edges.

Home Owner from North Carolina

May 21, 2015 12:57 pm

Confirm screw hole c-to-c is 2 1/2"

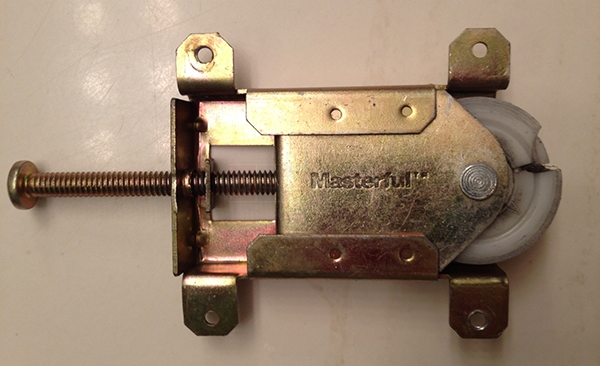

User submitted a photo of a mirror closet door roller.

Paul from SWISCO

May 22, 2015 1:23 pm

Thanks for getting back to us. I don't think the difference will be a problem, since normally you only use one side of the housing to secure the roller to the door. The other side just floats.
