Mirrored bifold door track needed

Quick Learner from Chicago
Hello, this is a 6ft bifold door opening. I have the mirrored doors but am missing the track.

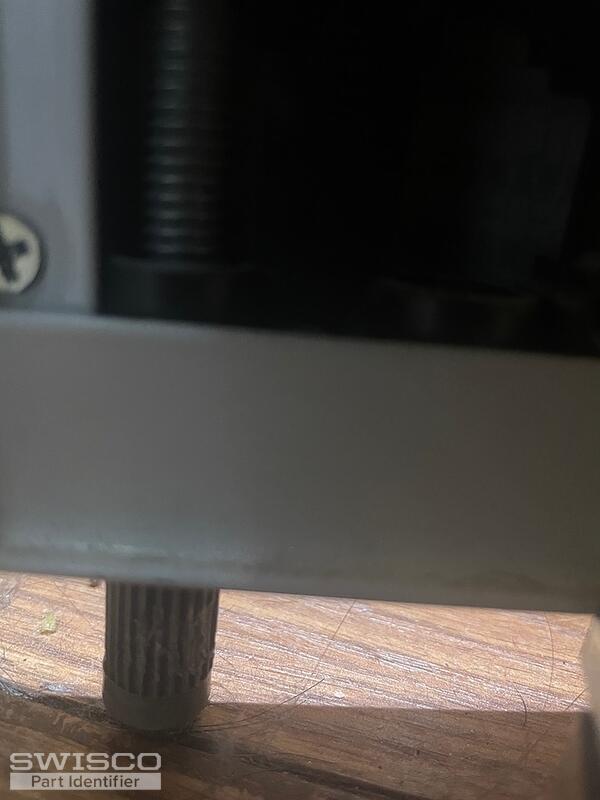

4 user uploaded images
2 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for reaching out! There is a chance that one of our Low Profile Track assemblies could work as a suitable replacement for your mirrored bifold door but you'll need to confirm that your existing hardware is compatible with the brackets and other hardware. This track style comes in three different lengths, which I have tagged below.

The corner you have looks a lot like the 23-409 Corner Connector which is used a long with the the 23-115 Spring Loaded Top Pivot and 23-116 Bi-Fold Door Adjustable Bottom Pivot, which are compatible with the 21-175 Pivot Bracket that comes with the recommended track style.

This track will come with 21-174 Roll Guides, 21-175 Pivot Brackets and 21-286 Snuggers. Extras can be purchased, individually.

Dimensions of the low profile track assembly.
Dimensions of the low profile track assembly.

Measurements of 23-115
Measurements of 23-115

Alternate view of 23-116
Alternate view of 23-116

Dimensions for 21-175
Dimensions for 21-175
