Mirrored closet door roller

Quick Learner from San Carlos, Ca.

Aug 9, 2017 8:29 pm

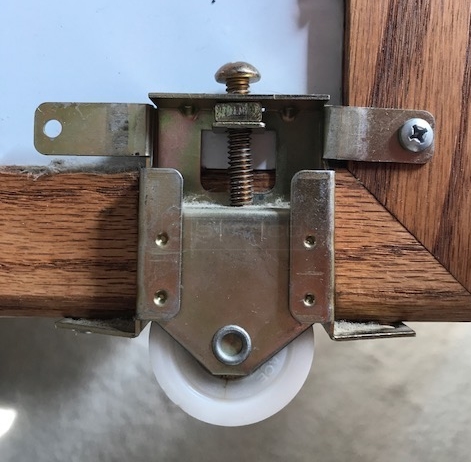

Hello - I need a replacement for the roller shown in these pictures. The slot in the closet door that the roller needs to fit into is 1 7/8" and the center to center distance of the upper mounting holes is 3 1/2". The depth of the roller housing itself is 5/8". Do you have or can you recommend a replacement?

Thank you.

4 Replies

Paul from SWISCO

Aug 15, 2017 11:23 am

Hey there! Thank you for posting. The wheel manufacturer shortened the screw hole distance of the 23-233, but we feel you can still use it. Worse-case scenario, you'll need to drill a new hole.

Quick Learner from SAN Carlos, Ca.

Aug 15, 2017 12:03 pm

Thanks Paul. I don't think that one will work. Please see the two attached files. My roller housing has a 1/8" offset between the mounting brackets and the body of the roller housing. It fits into a slot on the closet door. The search continues.

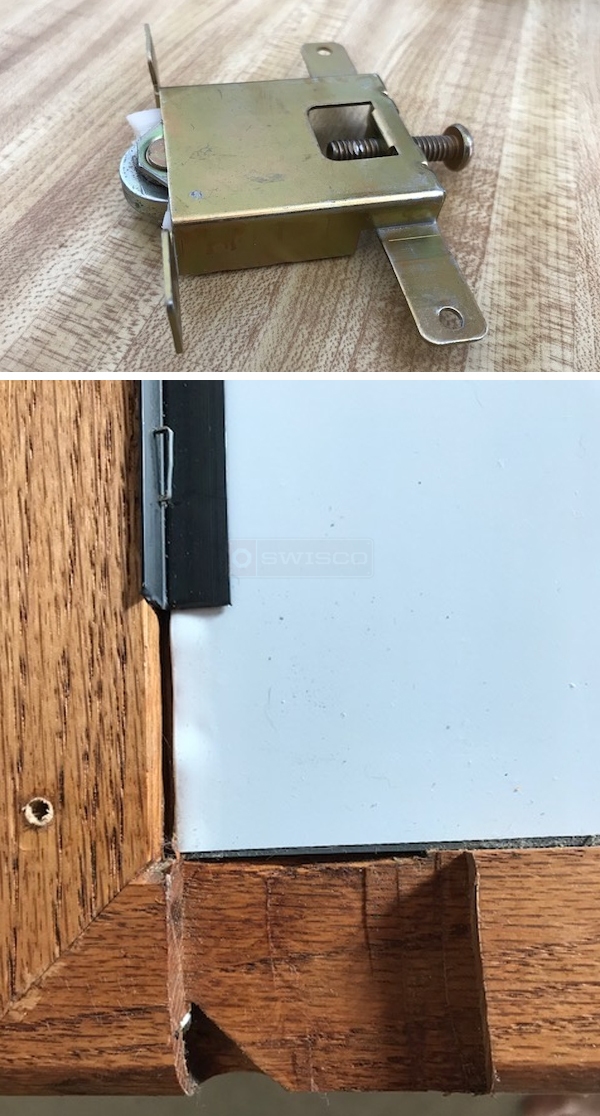

User submitted photos of a mirror closet door roller.

Paul from SWISCO

Aug 21, 2017 11:00 am

Ah, I see. I'm afraid we don't have anything else in this size. One other option would be to order the 23-233, then remove the inside portion that has the wheel and install it in the old outer housing. Would that work for you?
