Mirrored closet door runner

Home Owner from Spring Valley, CA (suburb of San Diego)

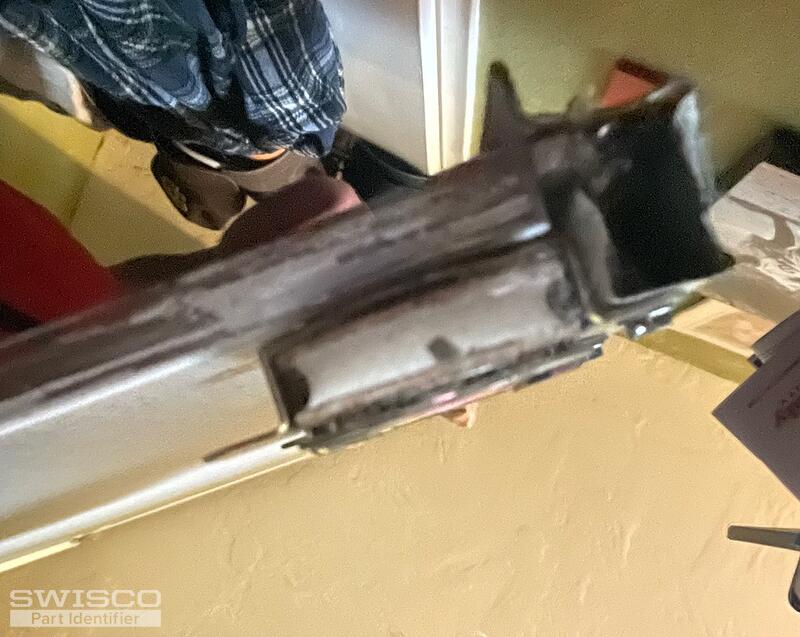

We need to replace the runner. It is 69 9/16 in length and 3 1/4 inches wide (but maybe it stated at 3 inches and has been stepped on too many times). Thanks so much
2 user uploaded images
6 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

You are welcome to look through our selection of sliding closet tracks here but I'm having a hard time making out if yours is for convex of concave roller wheels since the track is bent. If you could show us a clear end profile photo of the track, as well as the bottom of the wheel that rides on it, that would help us confirm the best replacement option. Thank you!

Home Owner from Spring Valley, CA (suburb of San Diego)

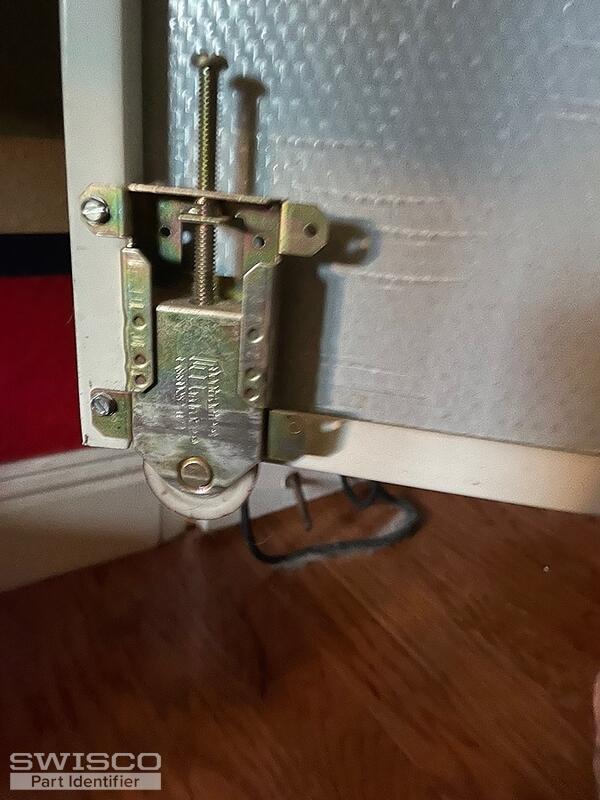

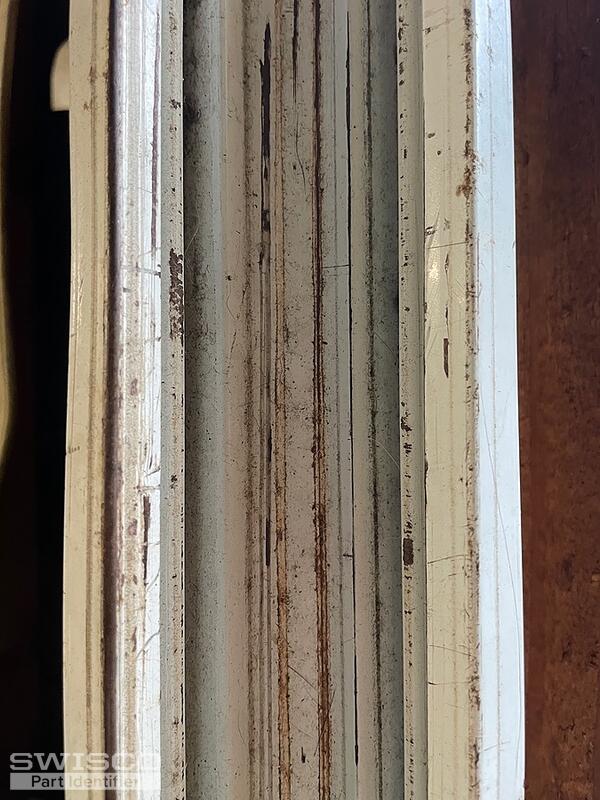

I think it's the 23-272. I added photos. Maybe I should change the wheels also and you tell me which one is the most durable for mirrored doors AND which one is my needed length.
4 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

Thanks for getting back to us. I agree that it looks like you have concave wheels, which would be compatible with the 23-272 track.

Profile view of bottom concave roller track
Profile view of bottom concave roller track

You don't need to replace the wheels unless they are broken. If you decide to replace those as well, take a look and compare the 23-098 shown below to your assembly.

Dimensions for 23-098
Dimensions for 23-098

Home Owner from Spring Valley, CA (suburb of San Diego)
Can we buy the 69 9/16 length? I don't believe I saw that option.
Casey
Casey from SWISCO
SWISCO
Expert

Unfortunately, we do not carry the exact length that you requested but you could cut down our 71" track using a hacksaw like the 75-023 if necessary. Just keep in mind that parts can not be returned once they are modified.
