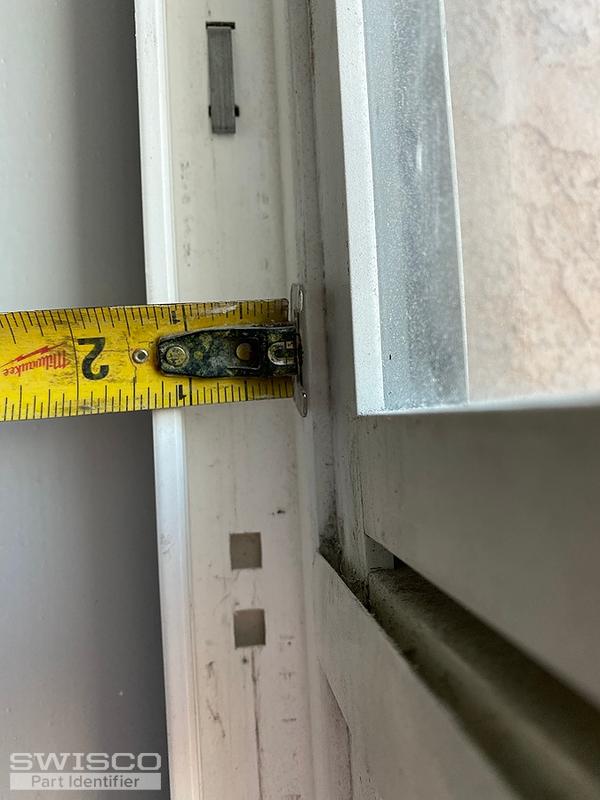

Hello - I am missing both Channel Balances from a single hung non-tilt window. The brand of window is unknown / unmarked. Hope you can help me identify which channel balances I need to order. I believe Channel width was 1/2" because the vinyl trough where it goes is almost 1" wide.
Thank you! Rhoda
Tom from SWISCO responded:
July 27, 2020

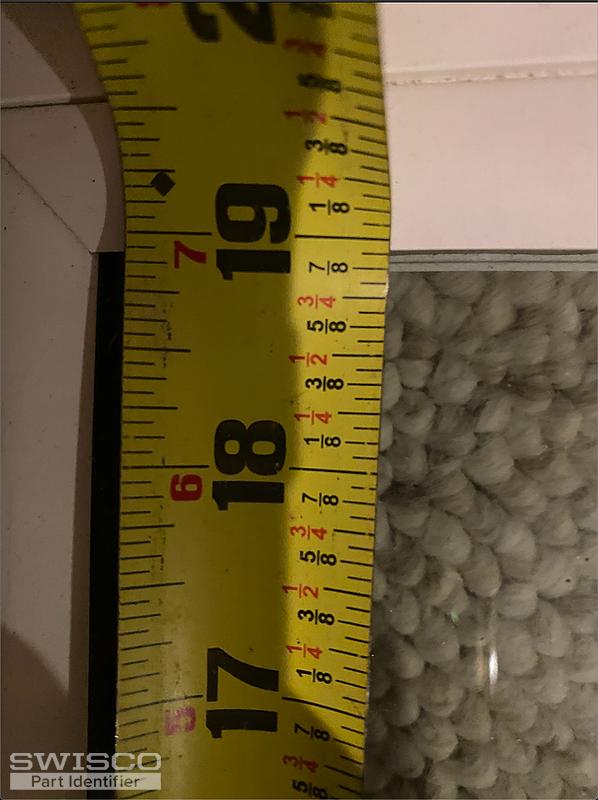

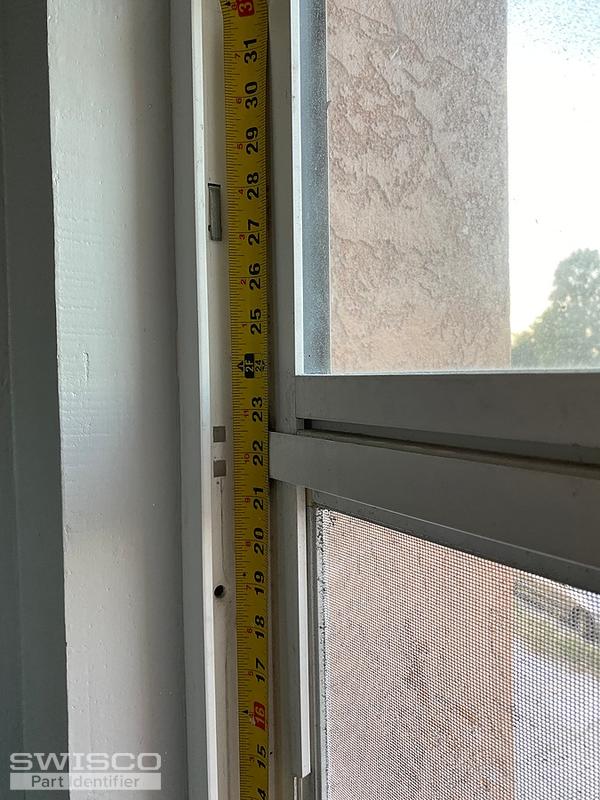

Hello, Rhoda. I'm afraid that without the original balance on hand, it won't be possible for us to accurately ID a match. The best I can do is guess. If you're willing to take a chance, then please tell me the height of the visible glass of the sash these balances used to support. Please also tell me the exact weight of the sash, down to the ounce. It's important to be as precise as possible; these are some of the few details I don't need to guess, so I'd rather not leave them to chance. Finally, if you had an identical window in the house that still has all its hardware, we can use that as a reference. That would make this a lot easier. |
Tom from SWISCO responded:
July 28, 2020
Thanks, Rhoda! I figured as much. Once you can get me those measurements I will do my best to find something that will work for you. |
Tom from SWISCO responded:
August 3, 2020
Thank you! Okay, so with this data in mind, my recommendation would be the S385-19 channel balance with an 1820 stamp option. Let me break down the logic of this pick. Number one, this style of balance is very common in windows like yours, especially the top and bottom nylon fittings. I believe the top fitting, the 19-005, will be compatible with your top sash guide. The 15-004 bottom fitting, however, is another story. It is a relatively large shoe, so there is a chance that it is too big to fit in your channel. What this means is that when you open and close your sash, these bottom fittings will dig into your track on either side and cause damage. It's very important that you keep this in mind! If you install these balances and find that they're too big, don't try the sash. Instead, remove the balances and shave the 15-004 down a little, by about 3/32". That will give your sash the room it needs to operate. On the other hand, the big shoe may be exactly what you need and this won't be something you have to worry about. It's simply not possible to know. Better to shave down a large shoe if necessary than pack out a smaller shoe, which probably isn't possible to begin with. One other thing to note is that the S385-19 has little tabs on both the top and bottom nylon fittings. These may get in the way of operation, but if that's the case then you can just snip them off. Finally, the 1820 stamp option carries 8 through 12 pounds, which should be fine for your sash weight. Please note that I cannot guarantee that this will work for you, it's simply my best guess. I have no idea if it will work or not. Also note that balances altered in any way, like by shaving a shoe down or snipping off tabs as previously suggested, cannot be returned for a refund. See our return policy here for more information. These may be necessary for the balance to work, but they would also invalidate your ability to get a refund. If you have any other means at your disposal to figure out what these balances are without needing to guess, I highly recommend pursuing it. |
