Missing latch

Handy Person from Costa Mesa California

Jan 17, 2024 8:47 pm

This is a large picture window that is hinged and swings open from one side. The latch that is used to draw the window tightly closed is missing. I am inquiring to see if you have his latch?

2 user uploaded images

4 Replies

Casey from SWISCO

Jan 18, 2024 10:45 am

Hello,

We'd be happy to look into this for you but we would need to start by seeing an intact lock fully removed from the window to determine how it engages with the internal linkage. In the meantime, you're welcome to look through our selection of casement window locks here.

If needed, we also offer the video below to help you remove the lock with the missing handle once you're ready to replace it. Thank you!

Handy Person from Costa Mesa California

Jan 18, 2024 4:35 pm

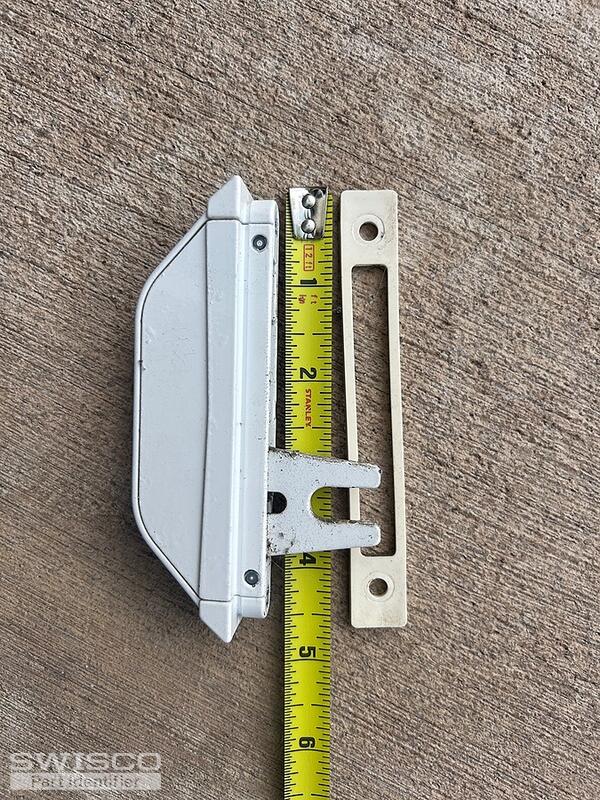

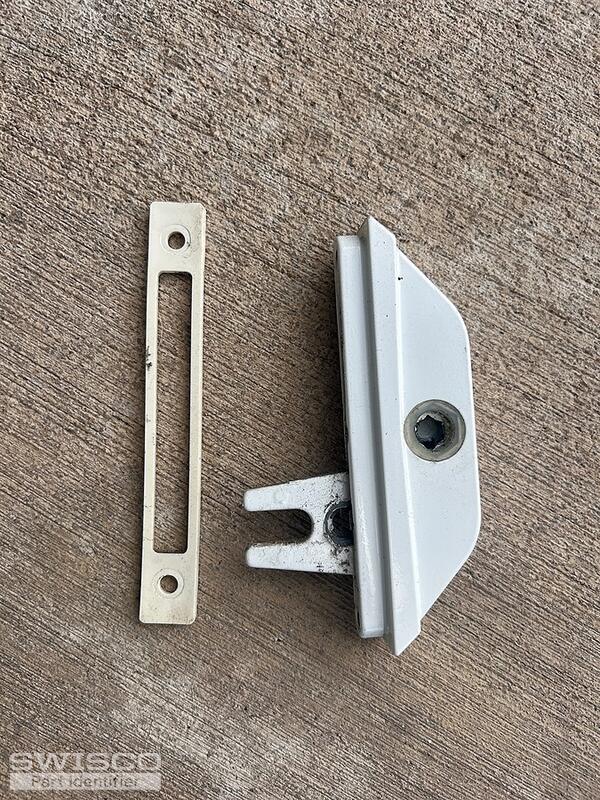

Please see the hardware that has been disassembled.

5 user uploaded images

Casey from SWISCO

Jan 22, 2024 8:52 am

Thanks for getting back to us. I would recommend starting by looking over the specifications of the multi-point locks related on this page to see how they compare to yours. The projection of the locking fork is especially important, along with the installation hole spacing.

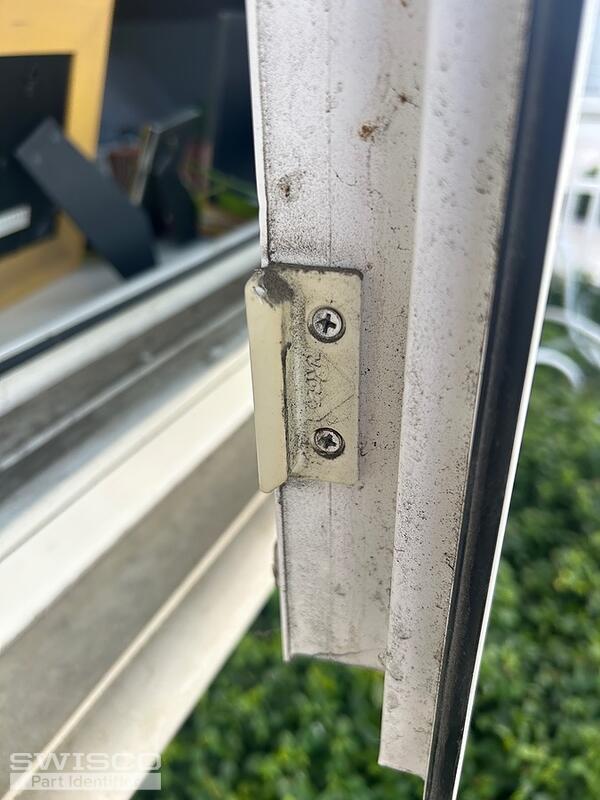

We've also related a few Roto keepers similar to yours. Review the dimensions of each part and let us know if you have any other questions.
