Missing track and fixed hardware

A handy person from La Grange, Illinois says:
January 25, 2022

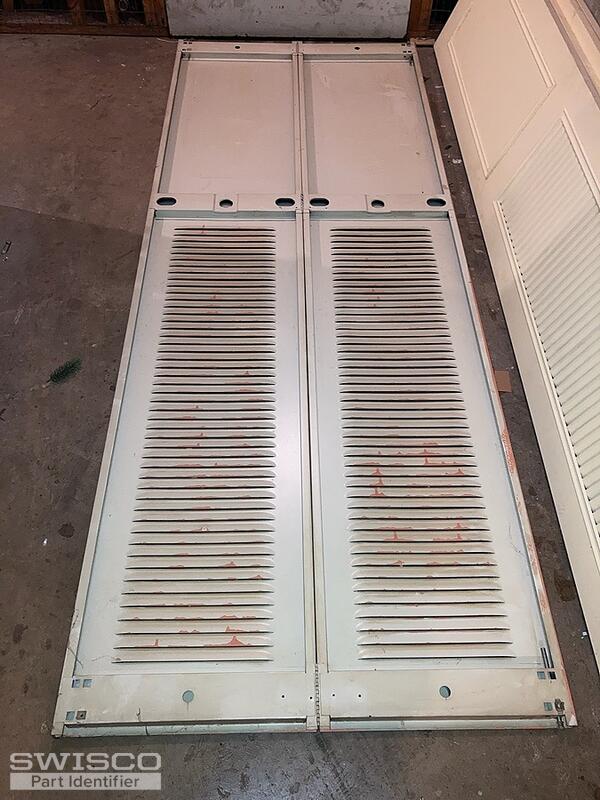

I have three metal bifold doors that I would like to reinstall. One door goes in a 36" wide opening and two go into a 72" wide opening. I am looking to purchase the upper tracks and associated pivot mounts, and the lower floor mounted brackets. I do not believe that there was a lower track.

If you are unable to see the photo comments here is a summary. All pins are 5 1/4" long. Metal pin diameter is 5/16". Nylon cap diameter is 3/8".

The doors have no manufacturer information.

Thank you for your time,

Cam
Thumbnail of the uploaded file named 6499678C-4706-46BD-B7C6-1FFB0FFF9842.jpeg
Thumbnail of the uploaded file named D03A9544-278C-4BE7-9E52-95785C3B7A09.jpeg
Thumbnail of the uploaded file named CB22D83A-7100-484F-AB94-BC45BC80027C.jpeg
Thumbnail of the uploaded file named B0D4264D-DDD8-45FD-8EA4-570AF58E9D7C.jpeg
Profile picture of Paul
Paul from SWISCO responded:
January 27, 2022

You have the old style Slimfold bi-fold door. The 36" track will be our 21-401 and the 72" track will be the 21-403. These doors require top and bottom tracks to operate properly.

You will also need the track bumpers, specifically our 21-277 for the top and bottom track.

If you want to replace the pins, you will need one 21-001 for the bottom adjusting pin and three 21-007 for the other three per door panel.
Bi-fold Door Pivot Assembly
Bi-fold Door Pivot Assembly
21-001
$6.95
Bifold Door Guide Pin
Bifold Door Guide Pin
21-007
$3.87
Pivot Rod Clamp
Pivot Rod Clamp
21-154
$1.46
Bifold Track Bumper
Bifold Track Bumper
21-277
$2.07
Bifold Track, 3' Opening
Bifold Track, 3' Opening
21-401
$8.71
Bifold Track, 6' Opening
Bifold Track, 6' Opening
21-403
$18.57
How to Install Bi-Fold Closet Door Pins
How to Install Bi-Fold Closet Door Pins
VIDEO
WATCH >
How to install bi-fold closet door pins
How to install bi-fold closet door pins
VIDEO
WATCH >
Bi-fold Door Repairs
Bi-fold Door Repairs
GUIDE
READ >
