Missing window and patio door parts

A home owner from Connecicut says:
April 15, 2018
I have a few missing parts that I'd need your help to identify.

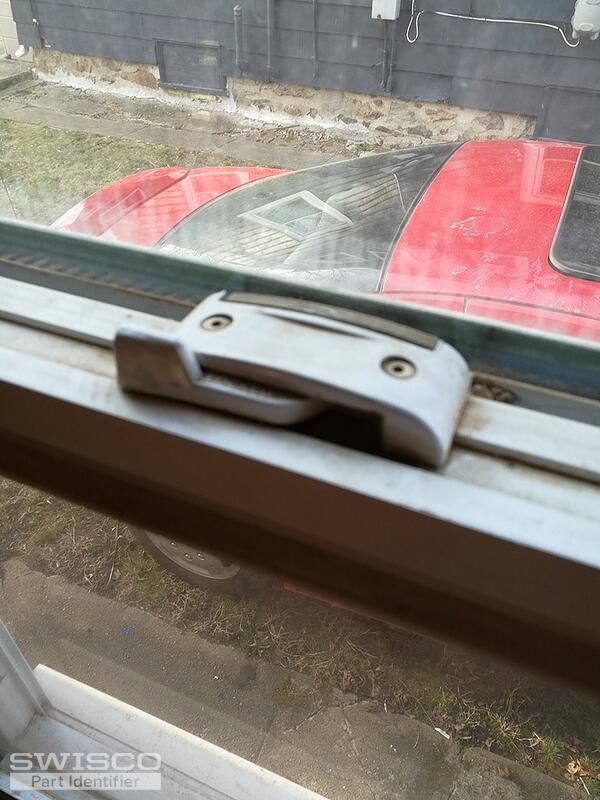

1) For window - missing the parts showing in the picture. I believe it is called sash lock. The dimensions are in the upper part of the sketch drawing
2) Patio sliding door lock and handle - I have a sketch drawing of the dimensions (some of the measurement may not be very accurate, as I see there are dimensions in 1/32"). I am not able to identify the model number

I hope that you may help me to identify those missing parts.

Thanks
Thumbnail of the uploaded file named IMG_20180413_173806.jpg
Thumbnail of the uploaded file named IMG_20180413_191153.jpg
Profile picture of Casey
Casey from SWISCO responded:
April 16, 2018

Hello,

Thank you for the detailed dimensions. If you could also include a picture of your patio door handle, we can get started identifying your parts for you. Thank you.
A home owner from CT says:
April 17, 2018

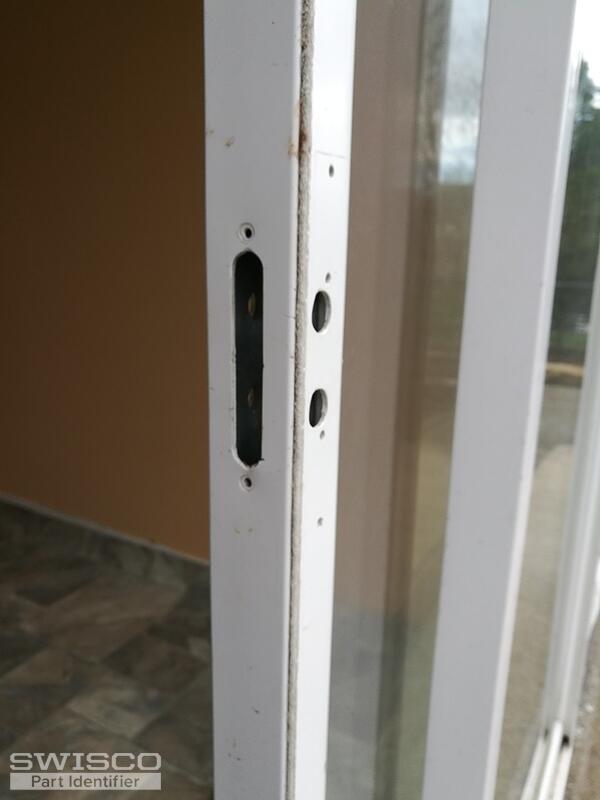

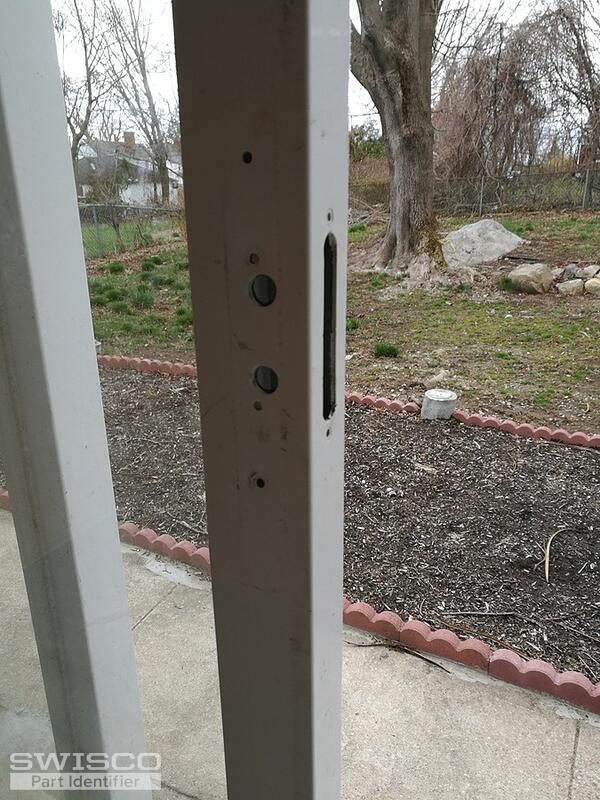

Please find the pictures of the door attached. Sorry, I do not have the actual handle, which is what I am trying to identify and purchase.
Thumbnail of the uploaded file named IMG_20180417_141545.jpg
Thumbnail of the uploaded file named IMG_20180417_141539.jpg
Profile picture of Tom
Tom from SWISCO responded:
April 20, 2018

Thanks for getting back to us. I've been having trouble with these parts. The main issue I'm having is matching up your dimensions. Starting with the lock, I think our 90-272 looks similar in terms of style, however our hole center spacing is 2-1/4", not 2" like yours. It's also a lot more shallow at 13/16" deep. I don't think this will work for you, but I haven't been able to find anything closer. Yours may be an older style that isn't made anymore.

For the handle, your hole spacing of 5-7/16" is also peculiar. That said, I think we can replace this. I see your mortise lock hole is very similar to that which takes our 82-218. The dimensions match up too, for once!

Let me know what you think!
A home owner from Connecticut says:
April 21, 2018
Tom, Thanks very much for your suggestion. I think the handle and mortise lock would fit my door. I will take a close look at my sash lock.
Profile picture of Tom
Tom from SWISCO responded:
April 24, 2018

You're very welcome! Thank you for your business.
Mortise Lock, Round Face, 3-11/16"
Mortise Lock, Round Face, 3-11/16"
82-218
$11.70
Sweep Lock, 2-1/4"
Sweep Lock, 2-1/4"
90-272
$5.74
