Mobile home closet door, metal framed sliders

A quick learner from Tucson says:
December 18, 2021

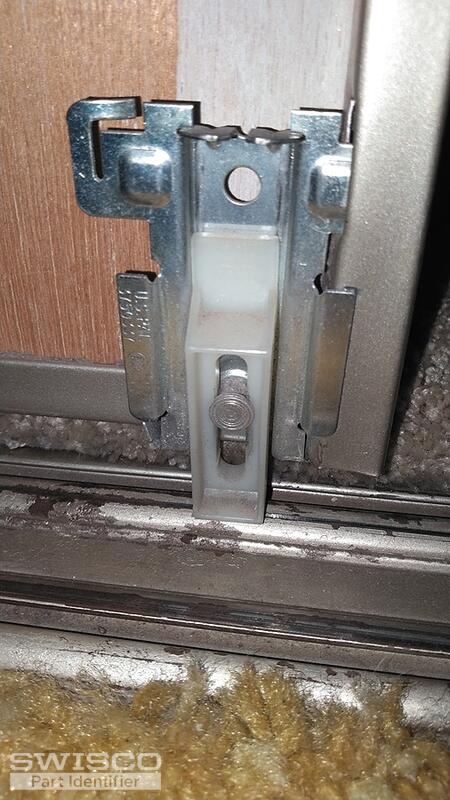

I'm looking for the bottom of a closet door slider.
Thumbnail of the uploaded file named KIMG2059.JPG
Profile picture of Lauren
Lauren from SWISCO responded:
December 21, 2021

Hello, thank you for posting!

Please start by reviewing dimensions of the 23-026 bottom sliding door guide and let us know what you think!

Detail of 23-026
Detail of 23-026
A quick learner from Tucson says:
December 21, 2021
Hi Lauren thanks for getting back to me so quick. I believe this is exactly what I need. Is there somewhere I can see a removal and reattachment of this particular item and also the upper roller guide?
Profile picture of Lauren
Lauren from SWISCO responded:
December 22, 2021

Great! Unfortunately we do not have specific installation instructions for this guide. The general procedure is to take the doors out of the frame and put them on a flat surface, then use needle-nose pliers to work out the old guide. Once that's out, you just hook in the new one exactly where the old part went.

For something like the 23-027 roller guide, it would be a similar procedure. Lay the door down to take pressure off the locking hooks and with a needle nose pliers; work out the locking hook from the door frame cut out. Please let us know if you have any additional questions.
Bottom Sliding Door Guide, Acme
Bottom Sliding Door Guide, Acme
23-026
$4.45
