Moline Metal Windows

A landlord from Wisconsin says:
October 4, 2017
We need to replace the springs in the metal windows we have at an old building that was a school. The tracks are still in good shape, but the spring insert is damaged. Hopefully you can tell from the pictures what this is. I cannot find any information on the windows themselves.

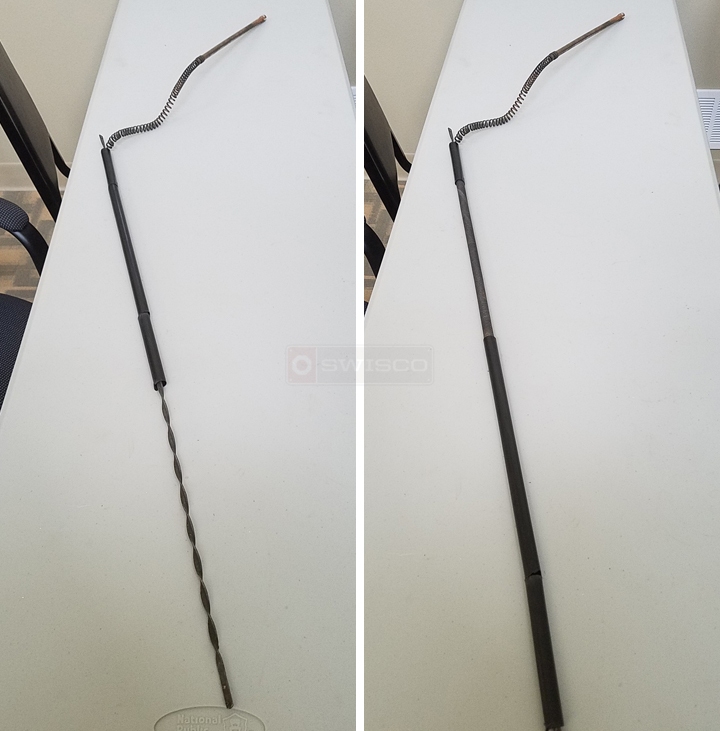

User submitted photos of a window balance.
Profile picture of Paul
Paul from SWISCO responded:
October 10, 2017
I'm having a hard time identifying what you have from this picture. Can you tell me if the window is tilt or non-tilt? Can you also Show me a picture of an undamaged balance? I would also like to know the diameter and length off the outer tube. Finally, please show me a picture of the bottom of the spiral itself. If we can see that on an undamaged balance, it would be ideal.
A landlord from Wisconsin says:
October 13, 2017
I will try and find a undamaged one to get a picture of also, but they are a tilt out window. attached are more pictures and sizes.

The outer tube a black plastic 1/2" tube

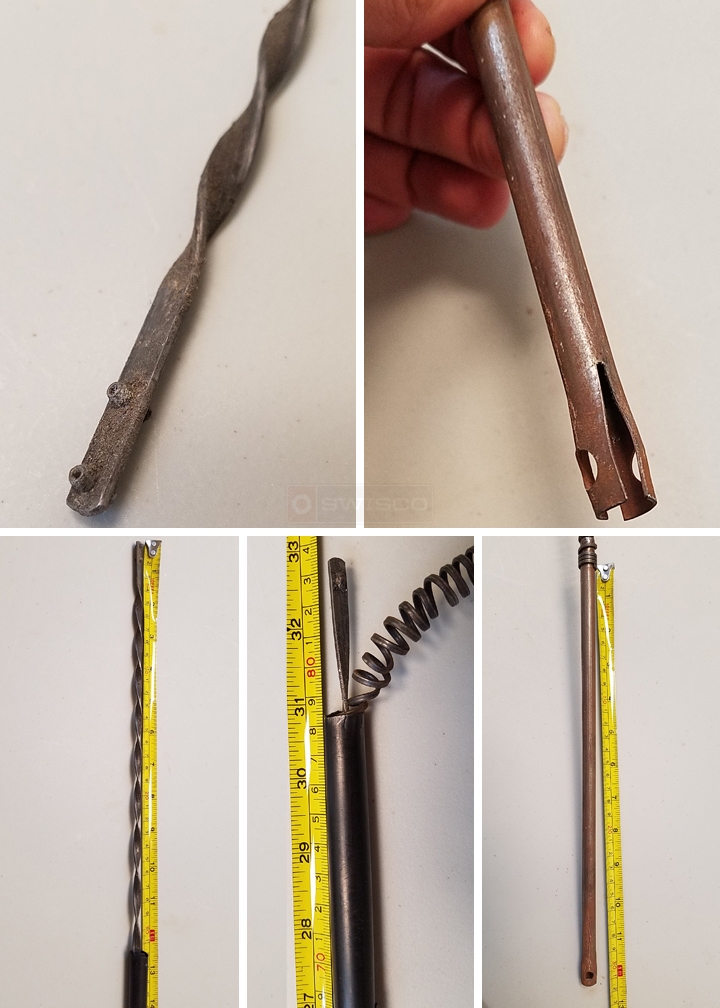

User submitted photos of a window balance.
Profile picture of Paul
Paul from SWISCO responded:
October 19, 2017
I am fairly confident that this is the Series 900. You should confirm the 3/8" tube diameter, since there is nothing in this style with a 1/2" tube. It should be 3/8" or 5/8", so measure carefully and choose.
