Monte Verde Bayview Sliding Glass Door Double Hook Latch Keeper

Start a new Discussion

Home Owner from Roseville, California

Nov 14, 2024 7:05 pm

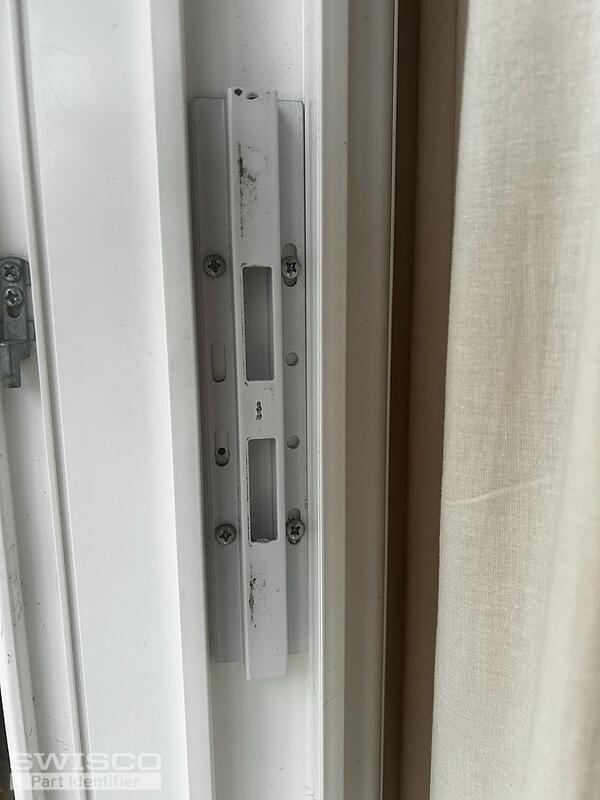

I'm looking for a replacement sliding glass door double Hook Latch Keeper for my Monte Verde sliding glass door.

1 user uploaded image

6 Replies

Lauren from SWISCO

Nov 18, 2024 10:47 am

Hello, thank you for posting,

Unfortunately we do not carry this exact keeper. To further review, are you able to show us the mortise lock? From there we can determine if we can provide an alternative option. Thank you!

Home Owner from Roseville, California

Nov 18, 2024 3:18 pm

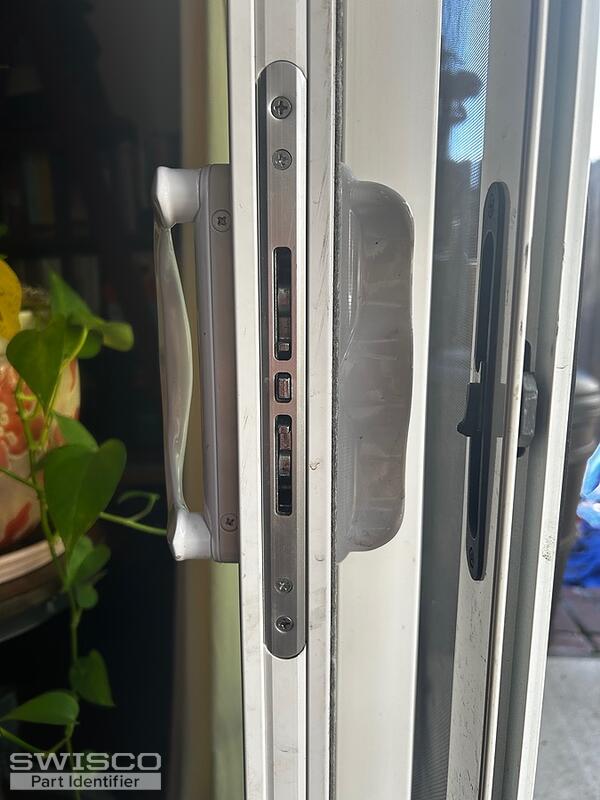

Thank you for assisting me. Here is a picture of the mortise lock.

1 user uploaded image

Lauren from SWISCO

Nov 18, 2024 3:53 pm

Thank you,

Your mortise lock resembles the 82-238 lock. We do carry two compatible keepers which are the 89-030 or 89-036, but it would require lining up and drilling new installation holes. Take a look and let us know what you think!

Home Owner from Roseville, California

Nov 18, 2024 4:22 pm

Thanks once again for the follow-up. It appears that those two keepers won't work -- my existing mortise lock measures 9" in height from top to bottom (the latch hooks themselves span approximately 4"). If I just purchase an entirely new two-point mortise lock from you, does it come with the appropriate keeper, or do I purchase that separately?

Lauren from SWISCO

Nov 19, 2024 9:27 am

Hello,

The 82-238 lock mentioned above is also 9 inches long. Please review the dimensions below.

Alternate image for 82-238

Looking at your pictures, I believe this is the style your door currently uses. This lock is compatible with the two strike plates mentioned. If there is a specific dimension not shown on the diagrams that you would like, please let me know!

The lock and keeper are sold separately, but as mentioned, it looks like your door already uses the 82-238 mortise lock.
