More dimensions for the 32-312?

Quick Learner from Lacombe, Louisiana 70445
May 10, 2012 1:39 pm
Sirs,

The picture I've submitted is a picture of the part I am looking for. I found a similar part on your website that matches the dimentions given but, there were only two dimentions given, diameter of insert into hole and width from inside of guide to outside of guide. Both of these match my part. Do you have any other dimentions so I may compare complete part. Your part # is 32-312
A customer submitted photo of a cabinet bracket.
5 Replies
Paul
Paul from SWISCO
May 10, 2012 1:39 pm
SWISCO
EXPERT
Thanks for posting. Your part does appear to match our 32-312 very closely. What other dimensions, exactly, would you like to see? I would be happy to give you any information you need once you specify.
Quick Learner from Lacombe, Louisiana 70445
May 16, 2012 10:32 am
I would like the dementions from the top of the guide to the bottom of the guide.

Also, the dimentions from the top of the pin insert tothe bottom of the bottom small pin insert.

The length and width of the top guide and length and width of the base that touches the the side of the cabinet once the guide is inserted.

Thank you very much for your time in advance. I have many other hard to find parts. If I can match this part with you I will try all the rest that I have. Most are from 1978 or prior.

Richard
Paul
Paul from SWISCO
May 17, 2012 2:04 pm
SWISCO
EXPERT

Thanks for getting back to us, Richard. Please see the picture below, which shows the dimensions requested.

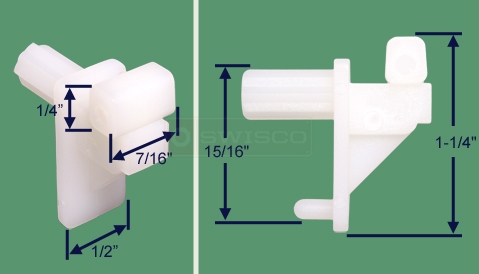

A SWISCO diagram of 32-312

Let me know if you need any more!

Quick Learner from Lacombe, Louisiana 70445
May 25, 2012 7:36 pm
Thank you very much for your GREAT help! It is an exect match. I will order several for you as soon as I finnd other parts that I need. Once again THANKS!!!

Richard
Paul
Paul from SWISCO
May 29, 2012 8:39 am
SWISCO
EXPERT
It was no problem at all, Richard! I was glad I could be of service. Please let me know if you have any more questions.
