Mortise latch 31/4 x 1/2

Question

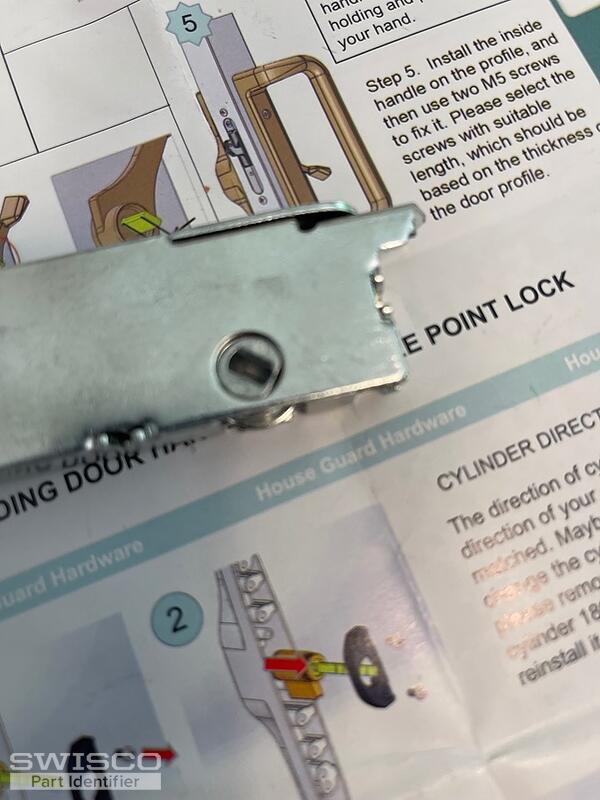

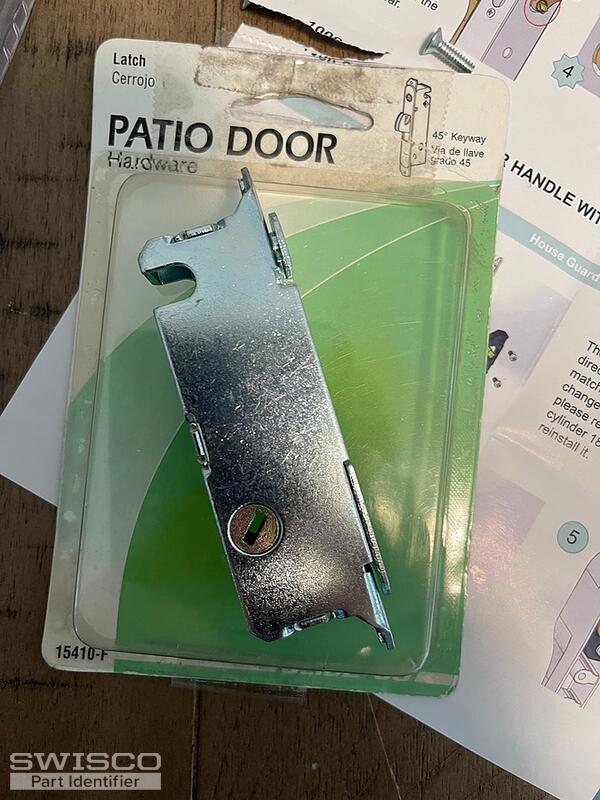

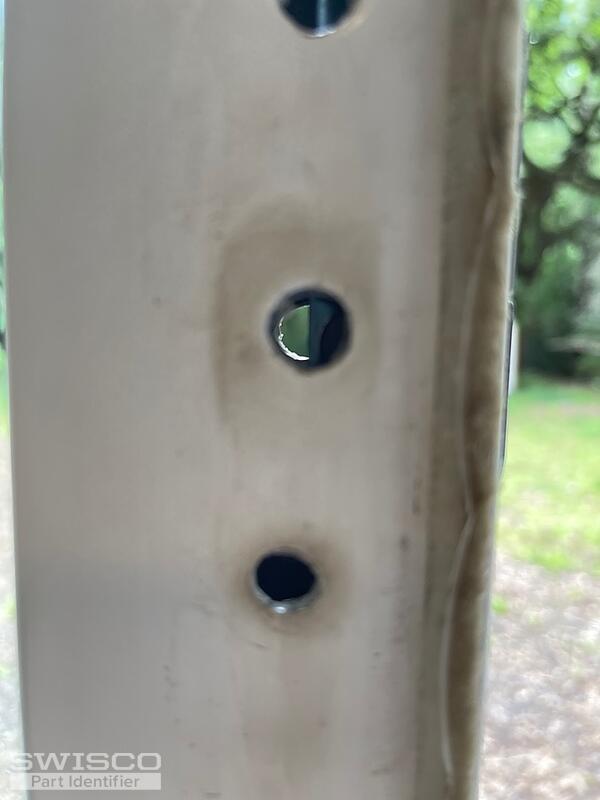

The latch original to the door fell down into the frame. I purchased the new latch and it is not sitting deep enough into the frame for the door handles with locking mechanism to line up with the slot on the latch. I don't know if the original latch was 45 degree or straight. I am searching for a latch that will sit deep enough for the door lock to line up. I suppose it would have to be longer in depth. I'm not really sure if it exists.

Casey · Accepted Answer

Hello,

We can't be sure without seeing the original mortise latch but take a look at the 82-218 mortise lock that has a 45-degree keyway. You'll need to review the dimensions below to see if the backset and the rest of the specifications could work for your application. Thank you!

Opposite side view 82-218

Profile view of 82-218
