Mortise lock set : SWISCO.com

Handy Person from Rockville, MD

Jun 9, 2024 12:57 pm

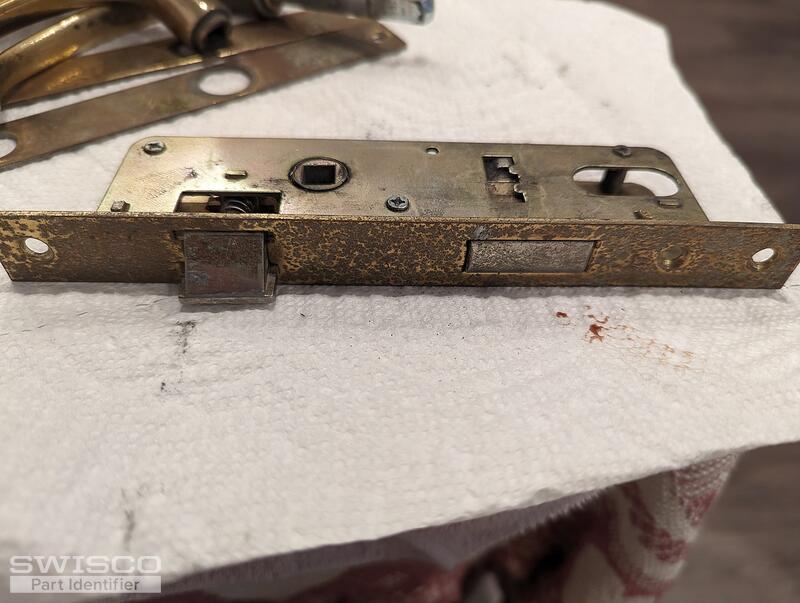

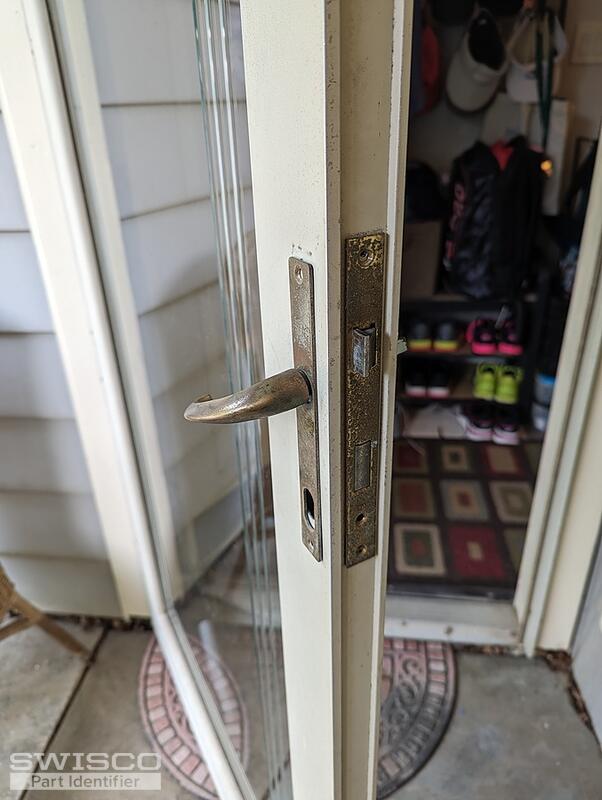

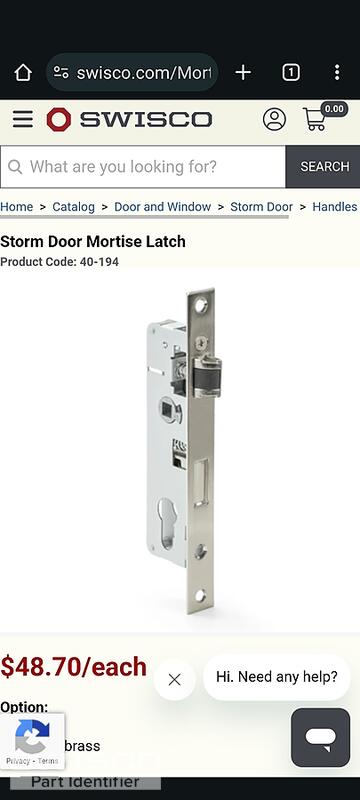

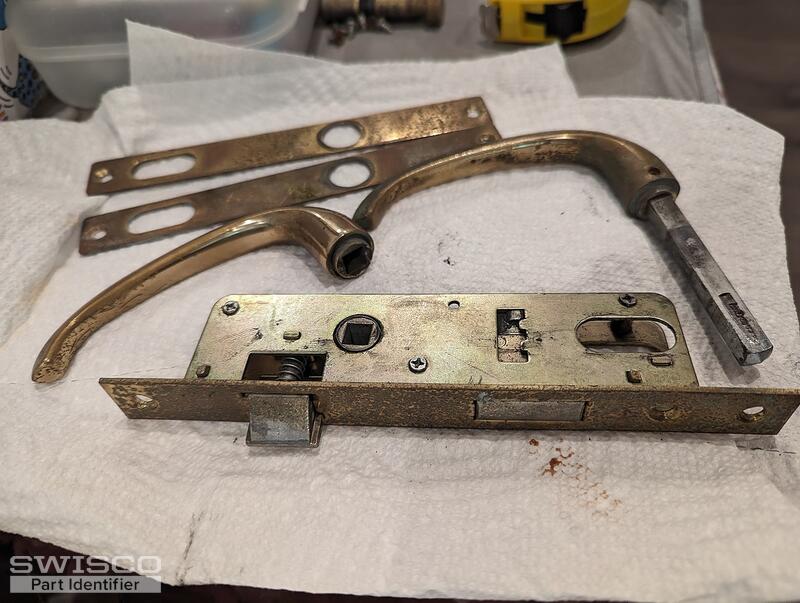

The existing mortise lock is worn out and needs to be replaced. The mortise lock matches the 40-194 dimensions. Do you have a complete lock set to replace all of the existing hardware?

4 user uploaded images

7 Replies

Bob from SWISCO

Jun 9, 2024 7:55 pm

Hello there. At first glance this looks more like our 40-049 complete lockset to me. Compare with all the dimensions listed below and let me know if anything in fact differs.

alternate view of 40-049

Dimensions for 40-049

Handy Person from Rockville, MD

Jun 10, 2024 9:21 am

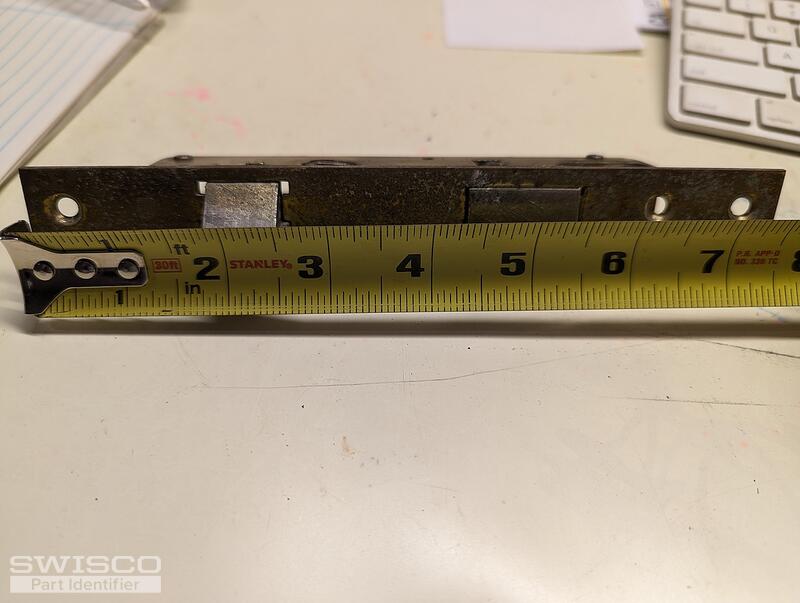

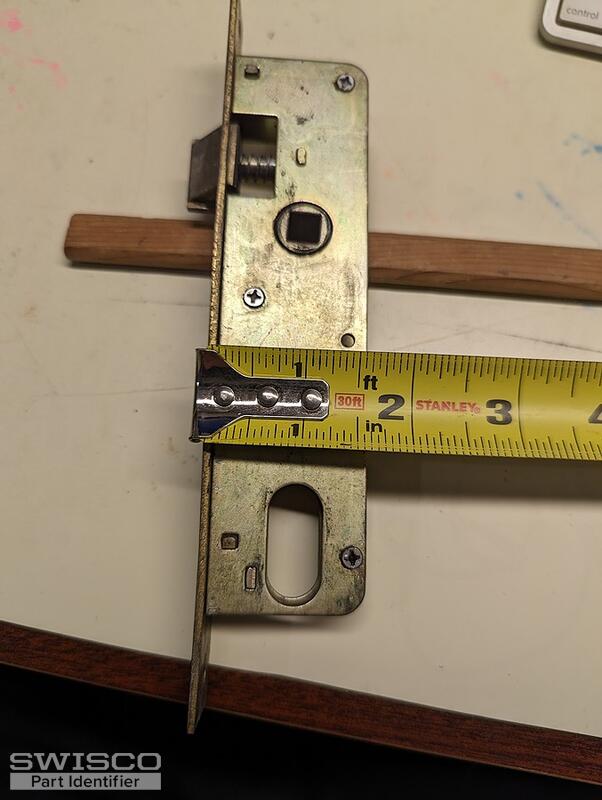

Took a couple of pictures with measurements for your review.

2 user uploaded images

Handy Person from Rockville, MD

Jun 11, 2024 3:02 pm

Thanks, Bob. I checked the measurements and you are correct. The only measurement that didn't match was the handle face plate. Instead of 8 1/8, my measurement is 7 1/8, but that probably doesn't matter as long as the screw holes line up.

Just want to verify this set is not available in brushed nickel.

Bob from SWISCO

Jun 12, 2024 1:49 pm

Not brushed nickel, unfortunately. We do sell the 40-183, which is the same set but made in satin chrome. Would that be sufficient?

Handy Person from Rockville, MD

Jun 16, 2024 1:37 pm

Yes, satin chrome is the correct finish. Do I order through you or from the website?

Bob from SWISCO

Jun 17, 2024 11:14 am

Great! All orders can be placed directly on our site at your convenience. I've linked to the store page for the suggested products in my previous responses.
