Multi-point nylon casement window lock

A home owner from Fairbanks, Alaska says:
August 7, 2022

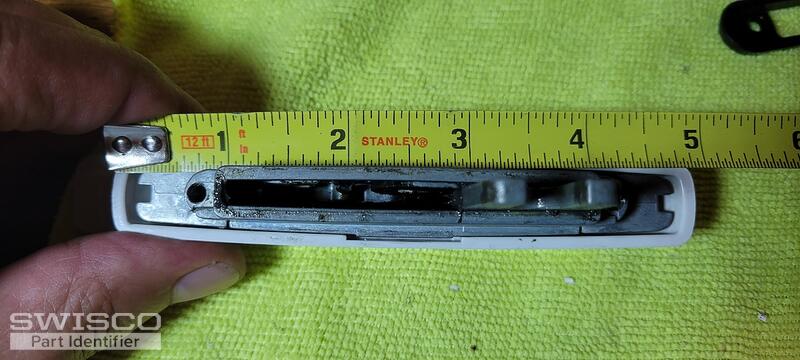

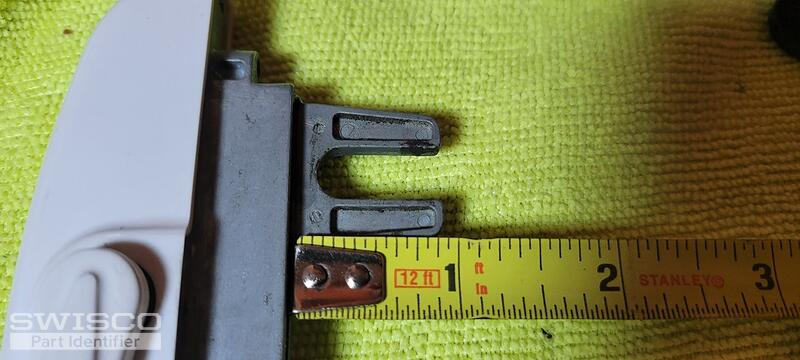

It seems to be a measuring delema. Mounting holes are 3 1/4 center to center. Fork is 15/16 long from latch base. Lock assembly is 3/4 inch wide over plastic housing, and 4 13/16 Inch overall.
Thumbnail of the uploaded file named 20220807_100402.jpg
Thumbnail of the uploaded file named 20220807_122030.jpg
Thumbnail of the uploaded file named 20220807_122059.jpg
Thumbnail of the uploaded file named 20220807_122209.jpg
Thumbnail of the uploaded file named 20220807_122355.jpg
Profile picture of Lauren
Lauren from SWISCO responded:
August 10, 2022

Hello, thank you for posting,

Please start by reviewing the style and dimensions of the 38-177 multi-point lock and 38-178 cover/handle. Let us know what you think and if you have any additional questions.

Dimensions for 38-177
Dimensions for 38-177

Dimensions for 38-178
Dimensions for 38-178
Multi-point Casement Lock
Multi-point Casement Lock
38-177
$12.70
Snap-on Lever Handle and Cover
Snap-on Lever Handle and Cover
38-178
$7.32
Anatomy of a casement window
Anatomy of a casement window
