Multiple Parts

Question

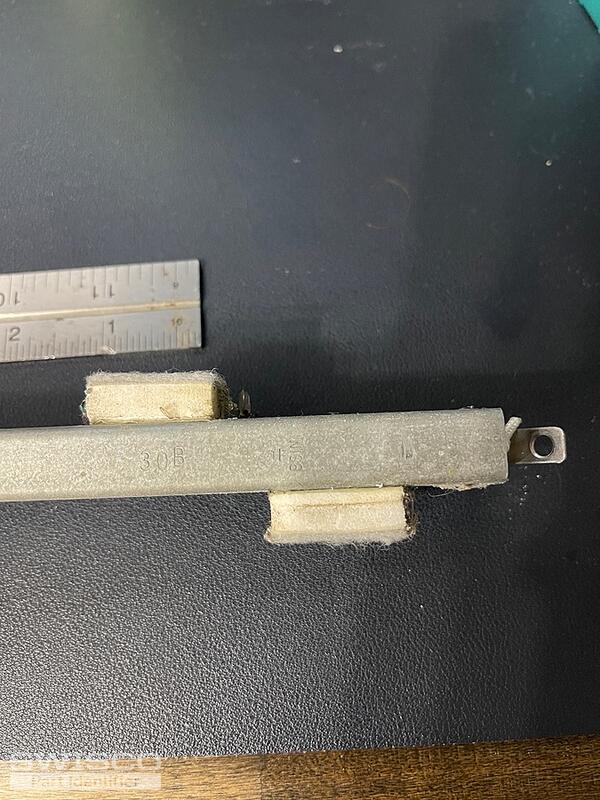

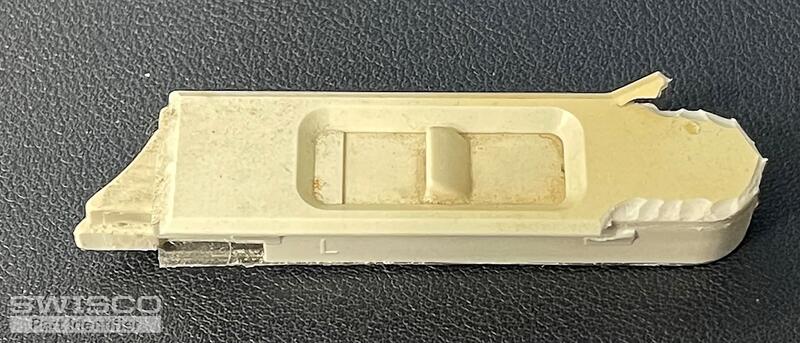

Looking for part numbers for parts photos attached. The cam is 1.25" Wide, 0.5" thick. The spring is stamped with "30B" and has a single screw hole at the top. The latch is approx 9/16" wide and approx 2 5/8" long (on side that inserts into window). Looking for both left and right.

Thank you!

Tom · Accepted Answer

Hello! My recommendation for the balance is our S795-30. This should match your original pretty well, with only a few minor differences that can be overlooked. The only major concern is the design of the shoe: you have an "open cam" style here, whereas our S795-30 comes with a "closed cam" style by default.

With that in mind, I also suggest purchasing an open cam 15-195B separately. These just pop on and off so it should be a simple switch once you receive them.

As for the tilt latch, my suggestion is the 26-243 and 26-244. Review our dimensions to verify that they all line up.

Alternate view of 26-243

Profile view of 26-243
