NAMI Door handle

Question

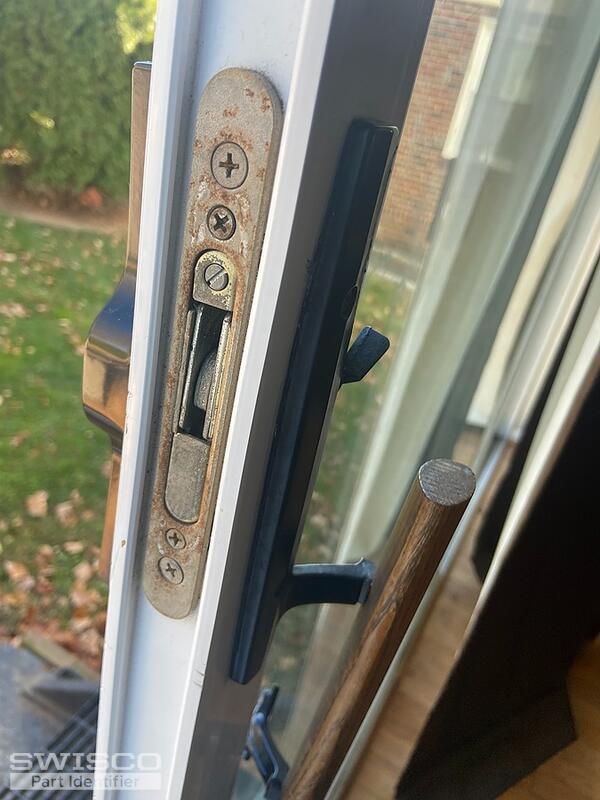

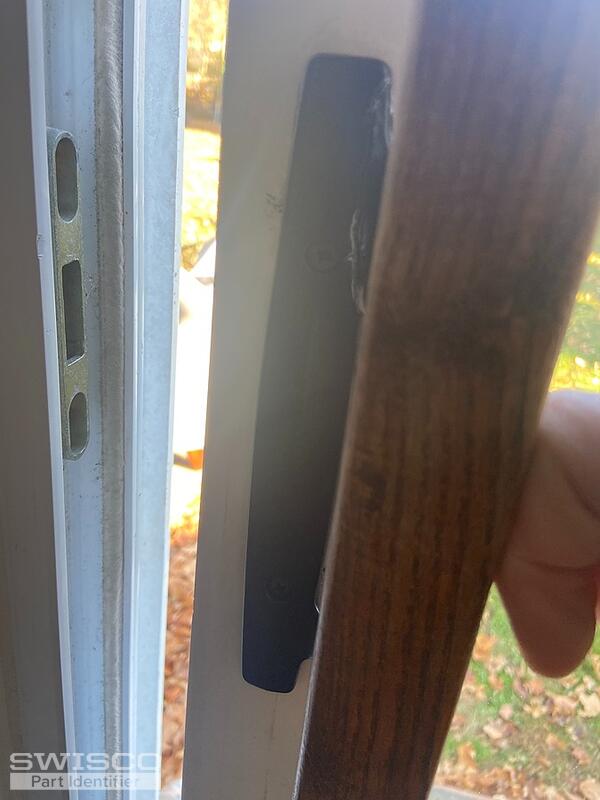

Old NAMI door handle broke, having difficulty identifying a replacement. Any input would be greatly appreciated.

CODE: I-263-1
SPEC: SGD-C20
SERIES: 2200
MST: 9868

Casey · Accepted Answer

Hello,

Your mortise lock resembles the 82-226, whcih is commonly used with handle sets with 3-15/16" installation hole spacing such as the 82-030 shown below. I would also suggest cleaning and lubricating the rollers so that this doesn't happen again. If the rollers are corroded or damaged, they may even need to be replaced to prevent having to use excessive force on the handle to open and close the door. Thanks for posting.

Hole center dimensions for 82-030

Dimensions for 82-030
