HERE YOU GO: good luck
Water bar weatherstrip is located on the top of the sash and keeps water from accumulating on the top of the sash and moves the water to the side sash exteriorto drain. Mine is hard plastic looks black in color (dark gray ). Everyone ofthe windows have the corners all smashed up. The profile of this Water bar looks.
THANK YOU (STASH)
NORCO "D" series clad case/awn JEL-N-555 Need top of window WATER BAR
Quick Learner from PALOS HEIGHTS IL.
Mar 3, 2018 4:31 pm
8 Replies
Tom from SWISCO
Mar 6, 2018 1:03 pm
Would you be able to show us a photo of the profile? I'm afraid I can't visualize what you describe, but a photo would clear it up. Can you also give us the size of the profile?
Quick Learner from Palos Heights
Mar 11, 2018 3:12 pm
HELLO ? TOM
I sent you an Email with pics (SWISCO.com) ATT: TOM 3/6/18 & 3/9/18 Thought it show any info needed.
Did find a # 2x10 slim offset screwdriver that can be clocked 60* by ( ANEX ). That will tighten loose mounting screws of the operator for casement windows without removing wood sill.
Thanks STASH
I sent you an Email with pics (SWISCO.com) ATT: TOM 3/6/18 & 3/9/18 Thought it show any info needed.
Did find a # 2x10 slim offset screwdriver that can be clocked 60* by ( ANEX ). That will tighten loose mounting screws of the operator for casement windows without removing wood sill.
Thanks STASH
Tom from SWISCO
Mar 13, 2018 1:25 pm
I'm afraid I haven't received your picture. Are you able to upload it directly to this thread? That would be the fastest way for us to get it.
Quick Learner from A quick learner from Palos Heights says:
Mar 17, 2018 2:02 pm
Not sure if I sent them if not I'll try again ??
Stanley Welsandt
Mar 6 (11 days ago)
to SWISCO.com
PROFILE VIEW :: it started to crack when I tried to cut the edge 90*
ATT:
TOM view of it laying down
https://www.swisco.com/discussions/NORCO-D-series-clad-caseawn-windows-JEL-N-555-Need-top-of-window-WATER-BAR--77-105882
ROUGH MEASUREMENTS PIECE IS VERY BRITTLE
PIECE HOOKED TO FLANGE EDGE OF ALUMINUM CLADING
WATER BAR ON WINDOW showing how it seals out water from top sash.
Also if you look all the way toward the hinge that's where it's all distorted (smashed)
Stanley Welsandt
Mar 6 (11 days ago)
to SWISCO.com
PROFILE VIEW :: it started to crack when I tried to cut the edge 90*
ATT:
TOM view of it laying down
https://www.swisco.com/discussions/NORCO-D-series-clad-caseawn-windows-JEL-N-555-Need-top-of-window-WATER-BAR--77-105882
ROUGH MEASUREMENTS PIECE IS VERY BRITTLE
PIECE HOOKED TO FLANGE EDGE OF ALUMINUM CLADING
WATER BAR ON WINDOW showing how it seals out water from top sash.
Also if you look all the way toward the hinge that's where it's all distorted (smashed)
Tom from SWISCO
Mar 20, 2018 12:26 pm
It looks like you sent us the file location on your computer, which unfortunately doesn't help. That kind of information only helps if I'm physically sitting at your computer myself. To upload images to this thread, simply click "Choose File" underneath the form you fill in to create a new post on this page. From there you can navigate to where the photos are and upload them here. You can only upload 5 at a time, but in my experience we rarely need more than that.
Home Owner from Michigan
Feb 3, 2021 9:34 pm

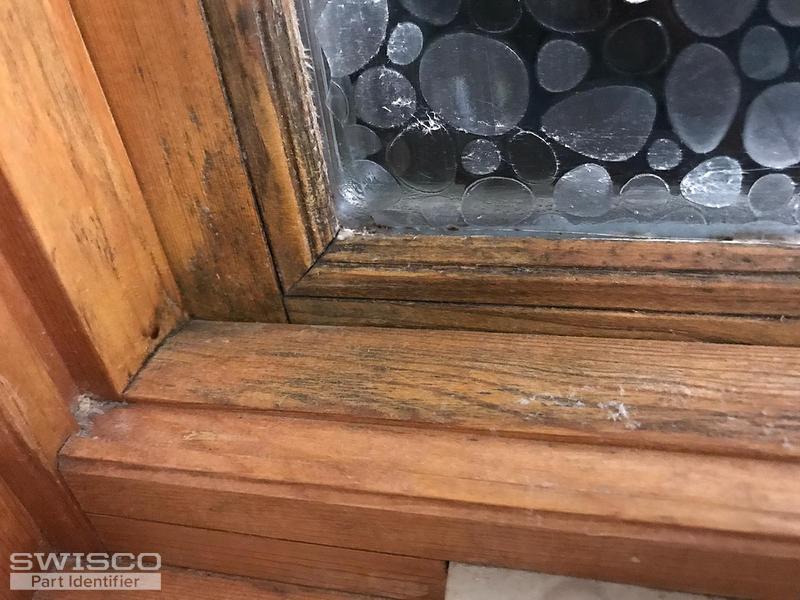

I have a NORCO WINDOWS D Series Clad Case/Awn JEL-N-555 that has sash rotten.
I wonder if you have this replacement.
I wonder if you have this replacement.
4 user uploaded images
Casey from SWISCO
Feb 4, 2021 8:31 am
Unfortunately, our company does not carry replacement sash framing, only small replacement parts such as operators and latches. You may want to try reaching out to a local sash fabricator for assistance in this case. Thanks for posting and good luck with your repair!
