National Bifold Door Parts needed

A home owner from Cordele, GA says:

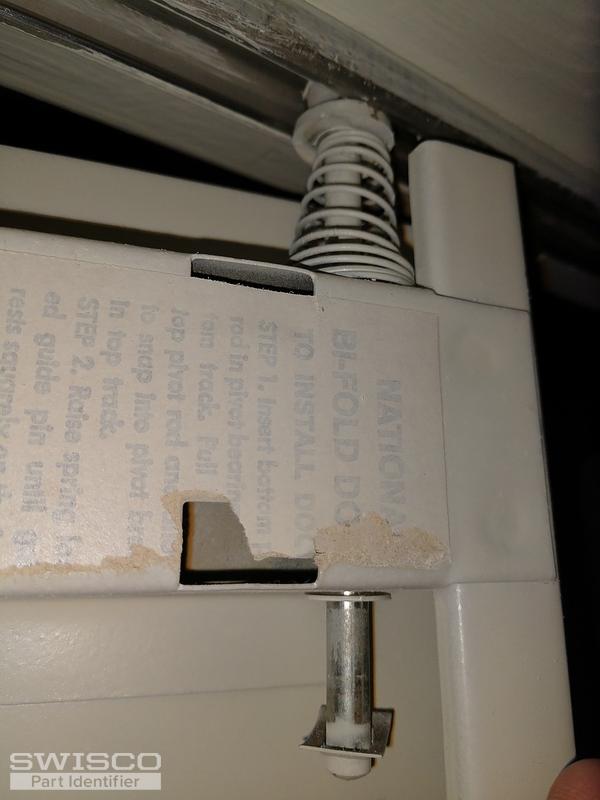

What I believe I need are the pivot guides and guide pins for National Bifold Doors louvered metal doors. They both appear to be around 4 2/2 inches long. The pivot guides appear 1/4 inch wide while the guide pins appear maybe 3/16 inches wide (or vice versa, the guides that slide are the smaller diameter). Any help would be appreciated. Thanks
Thumbnail of the uploaded file named IMG_20190228_170405063.jpg
Thumbnail of the uploaded file named IMG_20190228_170424281_BURST000_COVER.jpg
Thumbnail of the uploaded file named IMG_20190228_172829491.jpg
Thumbnail of the uploaded file named IMG_20190226_124306810.jpg
Thumbnail of the uploaded file named IMG_20190228_172857686.jpg
Profile picture of Tom
Tom from SWISCO responded:

Thanks for contacting us. It's tough to tell exactly what you have while your pins are still installed. I can't make out the style of the nylon cap that goes in the frame, as it's obscured. That said we do have a couple National brand pins. See our 21-072 to start. This looks similar to the pins I see in your photos and it is 1/4" in diameter. Could this be the replacement you're looking for?

We don't have a National brand pin that's 3/16". You may want to double check that dimension. The other two National pins we have are our 21-046 and 21-041. Look these over and see what you think.

21-041 : Bi-fold Door Pin Assembly, National
Bi-fold Door Pin Assembly, National
21-041
$5.64
VIEW >
21-046 : Bifold Door Bottom Pivot, National
Bifold Door Bottom Pivot, National
21-046
$7.44
VIEW >
21-072 : Bifold Door Guide Pin, National
Bifold Door Guide Pin, National
21-072
$4.79
VIEW >
