Need 10 replacement channel balances

Question

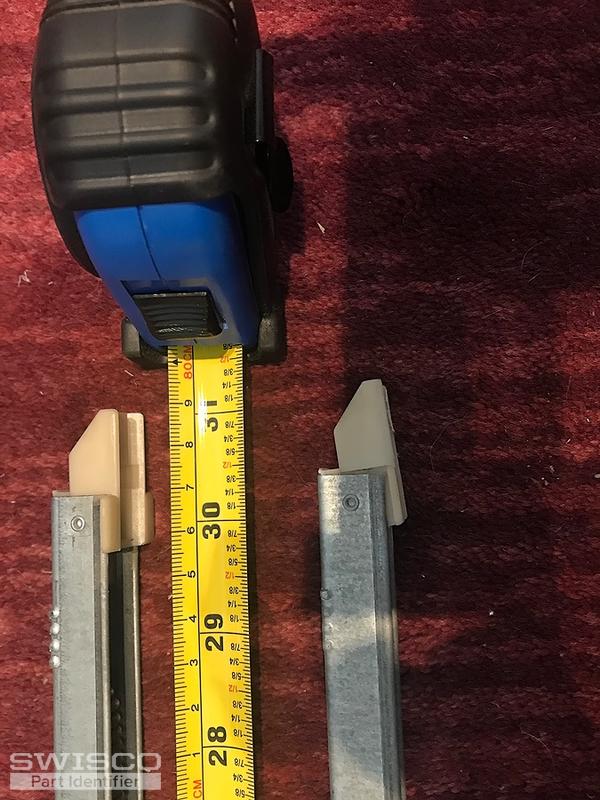

Vinyl Milgard style windows 32x32 & 32x46 in sashes. Double pane window weights are 26.8 to 27.2 lbs. Balance dimensions are 30" length metal by 1/2 by 1/2 width and depth.

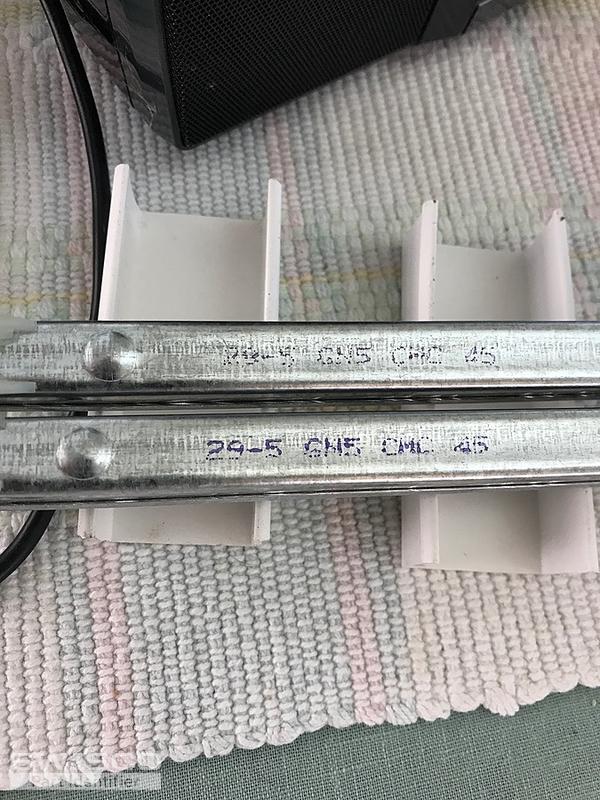

Old markings (2) are 29 5 KS CALDWELL, (3) are 29 5 FT CMC 2, (2) are 29 5 HU CMC 5 and (2) are 29 5 GN5 (or 6N5) CMC 45.
Top channel guide 11/16 front to back, 1&1/4 length by 15/16 tab width.
Bottom channel guide 1&1/16 front to back, 1&1/8 length by 15/16 tab width.

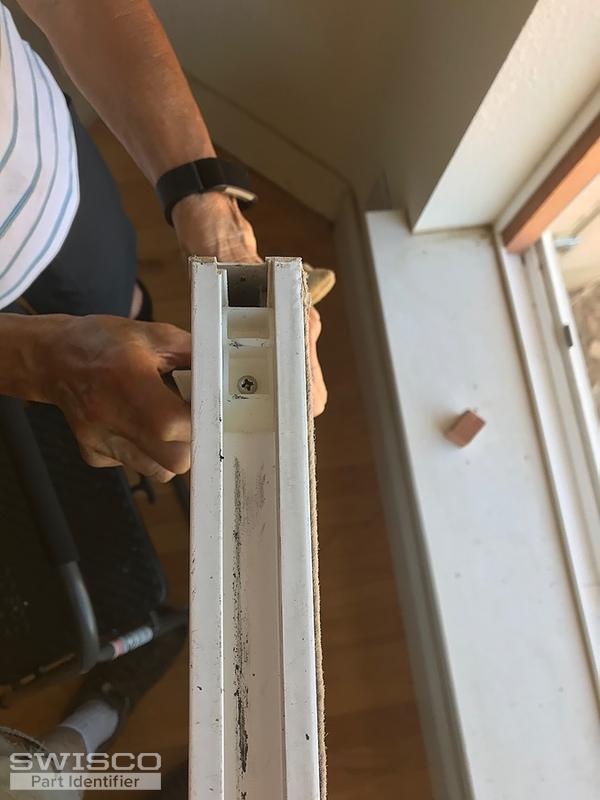

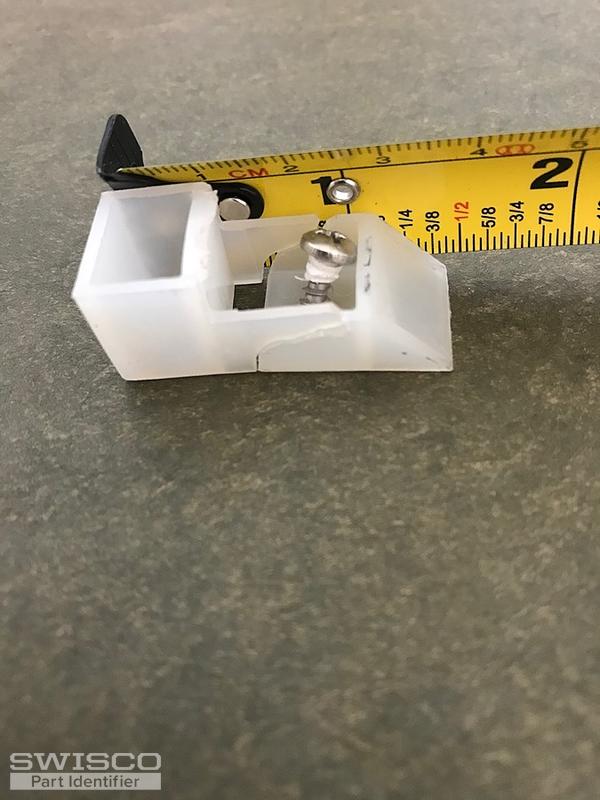

Will also need (3) Replacement Top Sash Guide. Pictures in my next post.

Bob · Accepted Answer

Thanks for posting. The channel balances appear to be either our S380-30 or S385-30, the only difference between these two kinds of balances being the depth of the bottom nylon shoe, or the 'heel-to-toe' measurement. The Series 385 has a shoe depth of 1-3/32". If your balance's shoes has a depth at all greater than 1", then the Series 385 is almost certainly what you need. Just double-check this measurement to be sure. In all cases, a stamp code of 29-5 means you'll need to pick a stamp option of 2950 for these balances.

For the Top Sash Guide, see if the 18-188 matches up.
