Need 2 Replacement Operating Handle Kits

Question

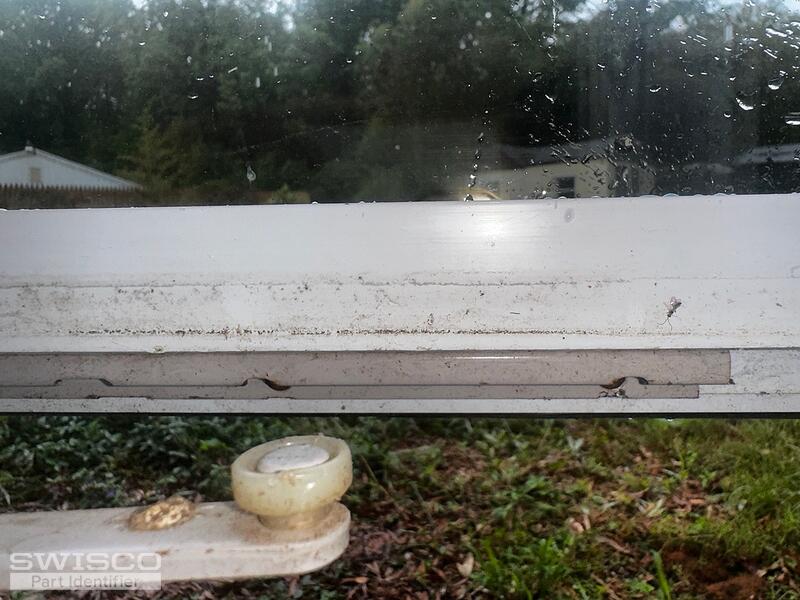

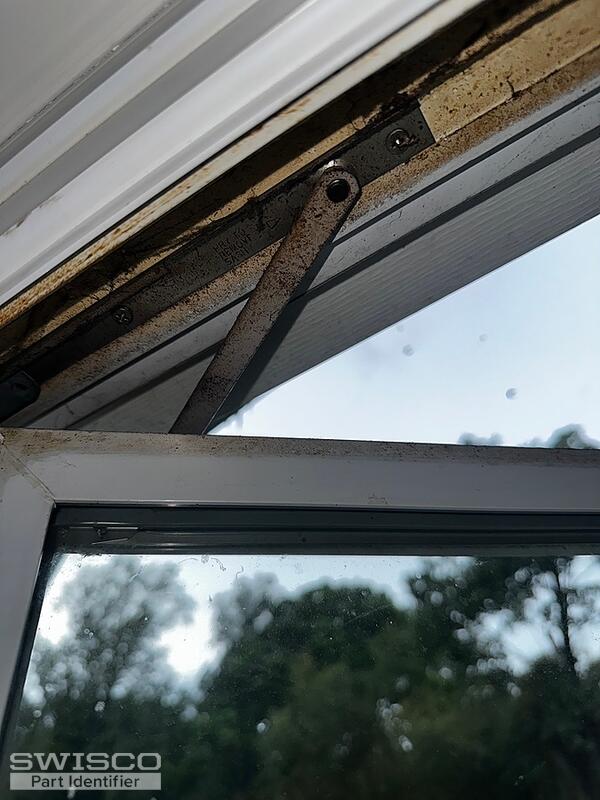

Truth is indicated on the bottom operating mechanism. And it states "pry to remove sash" on the top operating mechanism. I have a 3 pane casement bay window. The middle window does not open; the 2 lateral windows open towards the median. I am looking to replace all rusted out hardware and the crank hadles. Each of the lateral windows have 2 locking mechanisms that must be both unlocked for the window to crank open. The cranking of the bottom mechanism causes the rod to detach when the window is cranked all the way open. There are also 3 of the 4 broken handles (2 on each window). I am looking to replace the 4 locking handles also. I do not live at the property and don't have the exact dimensions readily available but can get them if necessary. Please advice. Thank you in advance.

Tom · Accepted Answer

Thanks for reaching out to us. For the locking lever, see our 38-036. This appears to be a more modern version of your original part.

For the operator, you have an older version of what might be our 39-028E, but you'll have to compare the arm size to verify. That's a vital detail. The handle would be our 39-114L.
