Need 2 replacement balances

Home Owner from Florida
Nov 16, 2024 2:05 pm
This is a Lowson Impact window 53"x 50" . Need 2 replacement balances.

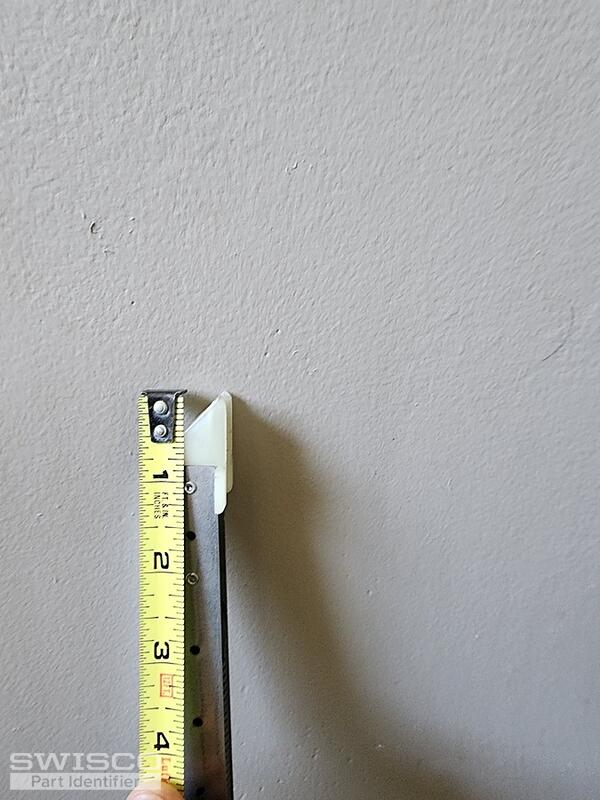

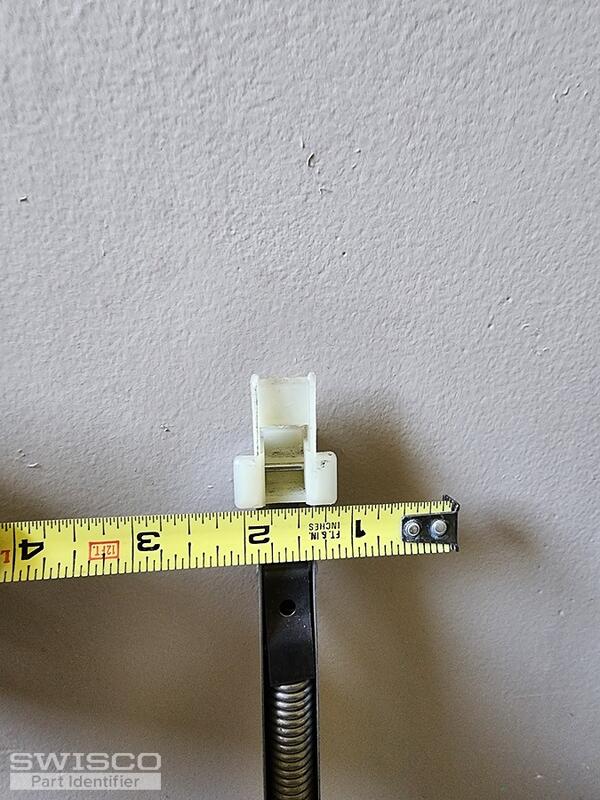

Shoe depth Shoe height Stamp Top length Winged
5 user uploaded images
1 Replies
Casey
Casey from SWISCO
Nov 18, 2024 11:54 am
SWISCO
EXPERT

Hello,

Your balance resembles the S380 or S385 channel balance at first glance. You’ll need to measure as shown below to confirm the depth of the shoe. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. If your depth differs, please write out your exact measurement to confirm if a better match is available. You'll also need to confirm the length of the metal channel, which should measure 24" without the end fittings.

Your stamp code indicates that you may have a 36-pound sash. If so, you would need 2370 options for your replacements to support between 34-37 lbs. Thank you and let us know if you have any other questions or concerns.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
