I need 2 Left and 2 Right for each of these.
Hopefully they will work with the existing hardware attached to the windows. If not, I'll need 2 complete sets.
Need 2 replacement sets please.
Home Owner from Park Rapids, MN
Jul 2, 2025 5:19 pm
3 user uploaded images
3 Replies
Home Owner from Park Rapids, MN
Jul 2, 2025 6:50 pm

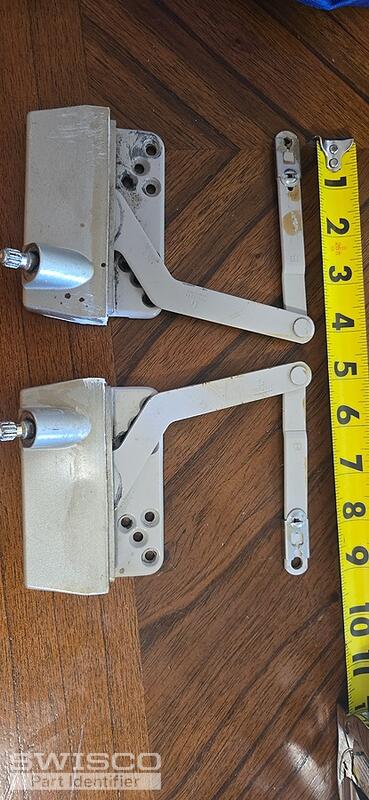

All arms I see on line have a 4.5 inch link arm (hole to center of hinge) mine is 4 inch. See added picture
1 user uploaded image
Emily from SWISCO
Jul 7, 2025 12:59 pm
Hello there!
Thank you for reaching out to us. Our 39-171 and 39-172 operators come to mind. The link arm measures 5 inches, so you'll need to determine whether you can adjust the stud bracket to accommodate the difference. If that option doesn't work, you will have to drill out both the old and new link arms in order to reuse the old link arms with the new operators using the 62-014B rivet. Take a look and let us know if you have any questions.
Dimensions for 39-171
Dimensions for 39-172
