CWS non-tilt windows.
Track is 1/2"
Shoes and tops have wings
Shoe is 1-3/32"
Metal channel is 30"
Stamp on channel is 94
Window weight is 28.4 lbs

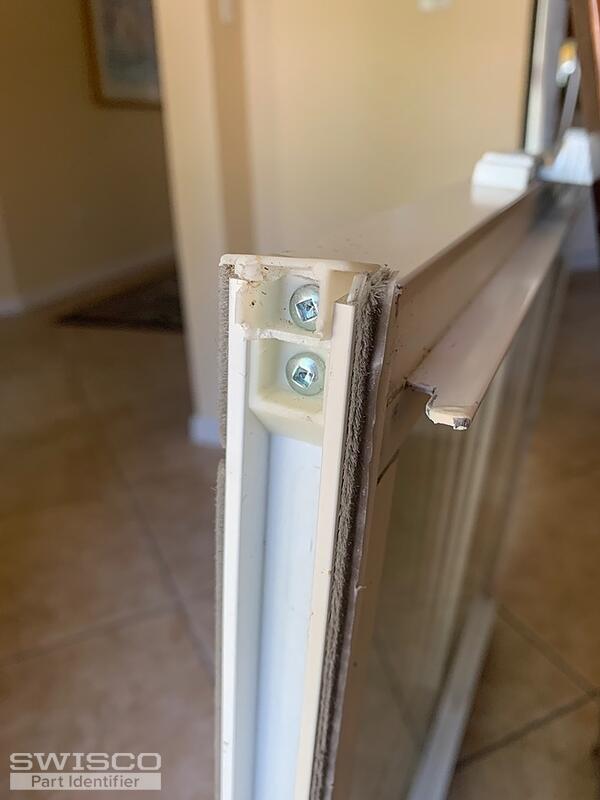

I also need 4 plastic sash guides, as they were damaged when the balance failed. See pic #1.
Thanks!
Bobby

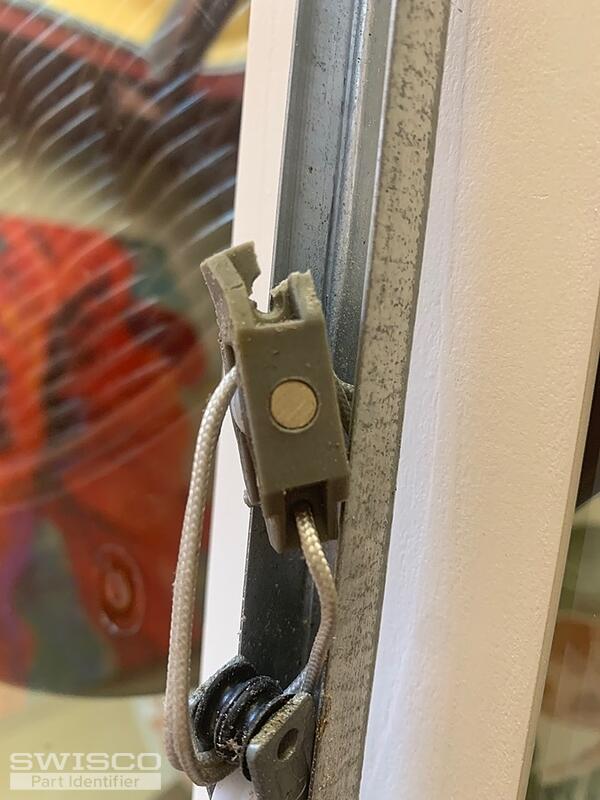

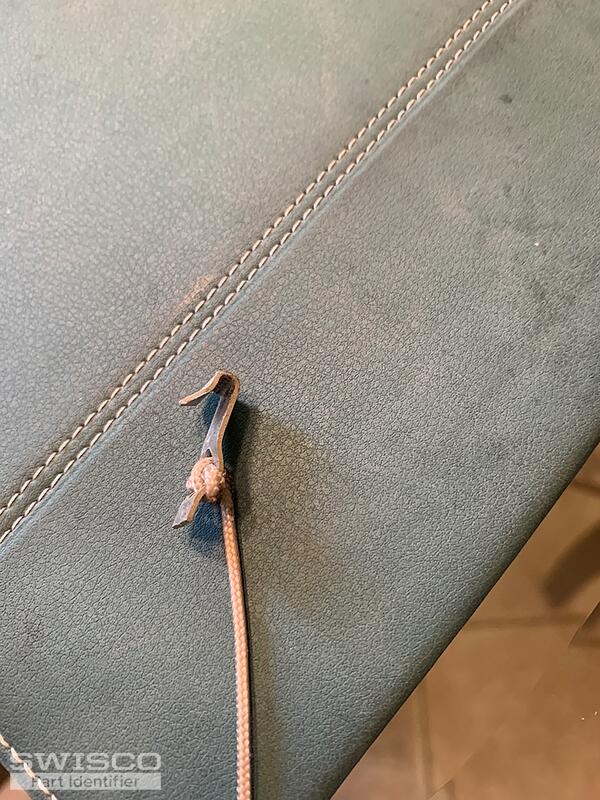

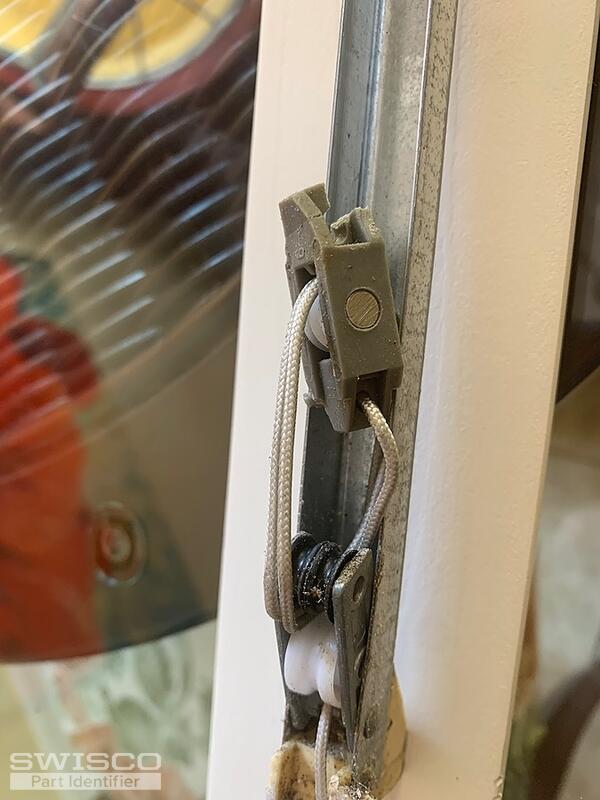

Thanks for reaching out to us, Bobby! Before I make my recommendation for the balance, can you show us a photo of the inside of the metal channel where the innerspring connects to the pulley mechanism?
As for the top sash guide, our 18-009 comes to mind. Have a look and see how the specifications compare with yours.
Thanks for getting back to me, Bobby! Based on the information you've given, I recommend the S385-30 channel balance with the 2940 stamp option if your window has been working this whole time without issue. A pair of balances with the 2940 stamp can support a sash weighing 23 to 28 pounds.
However, we also have the 2950 stamp. A pair of balances with this stamp will support a sash weighing 28 to 32 pounds. The decision is ultimately up to you!
Thank you for your order! We truly appreciate it. Good luck with the repair; I'll be here if you need anything else!
