Need 2 spring replacements

Handy Person from Rothschild

Oct 26, 2020 3:32 pm

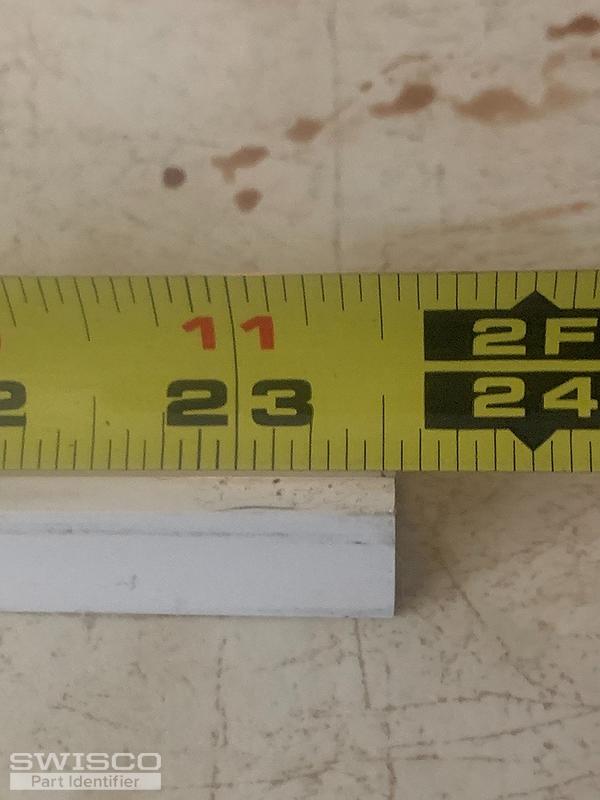

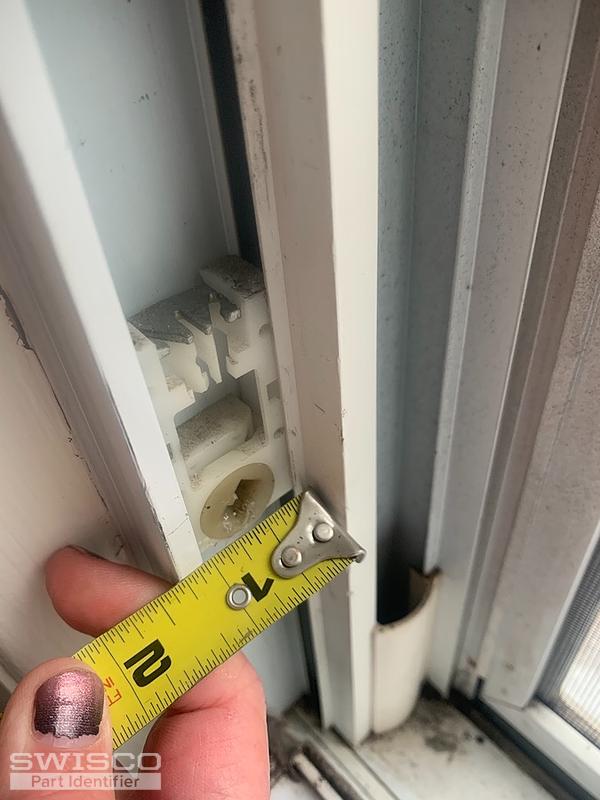

I have double hung tilt window with a broken spring. I don't know if I need new 3D335 picture number part? I would like two spring replacements so they ware the same. Also don't have a tool to load them. Want to make sure I'm getting the right parts. Also broke the plastic piece that goes over the top and not sure if you have them.

5 user uploaded images

4 Replies

Casey from SWISCO

Oct 29, 2020 3:47 pm

Hello,

We'd be happy to help but we'll need to confirm the diameter of the spiral balance tube, which would be either 3/8 or 5/8". If you need to pivot shoe as well, we'd need to see a photo of it removed from the window, including the exact width and depth of the shoe. Thank you!

Handy Person from Rothschild

Nov 4, 2020 12:39 pm

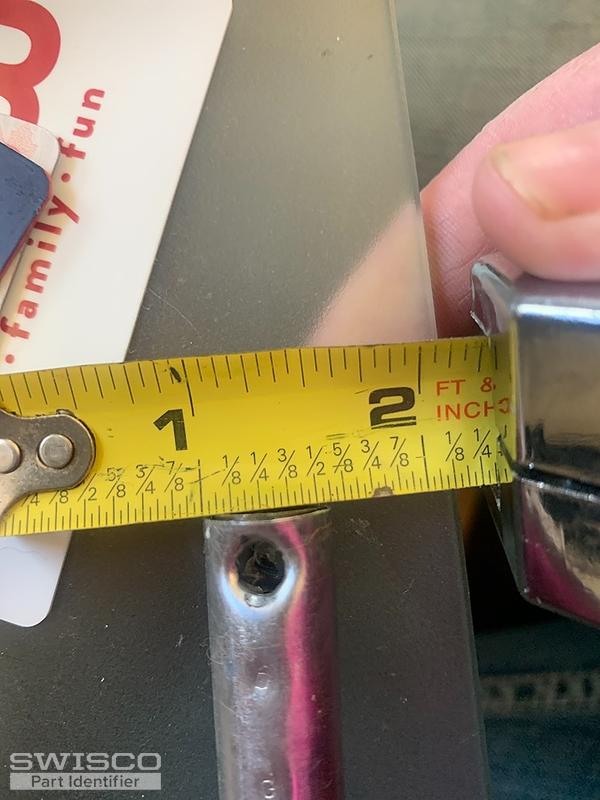

I don't believe I need pivot shoes. I can see the spiral balance is broke so not going to cut out pivot shoe unless I could see it's broke. I'll take a picture of the balance tube measurement. It seems way bigger than 3/8 but not quite 5/8? Closer to 5/8.

1 user uploaded image

Casey from SWISCO

Nov 4, 2020 2:58 pm

It looks like your tube might be closer to 5/8" in diameter. If so, take a look at our S600-22 spiral balance with a red tip strength option. You may also want to consider purchasing a 75-006 charging tool. Thanks for posting!
