Need 23DS Channel Balance

Quick Learner from Miami Florida
May 5, 2024 9:41 am

TRACO: SINGLE HUNG NOA #02-1120.03

TEST # PA 201, PA 202 & PA 203

"MIAMI - DADE COLNTY PRODUCT CONTROL APPROVED"

Meels or exceeds AANIA/ NWWDA 101/I.S. 2-97 Specifications

40.0268 (rev6-05)

I need 4 of those.

if you call please leave a message

RaulĀ

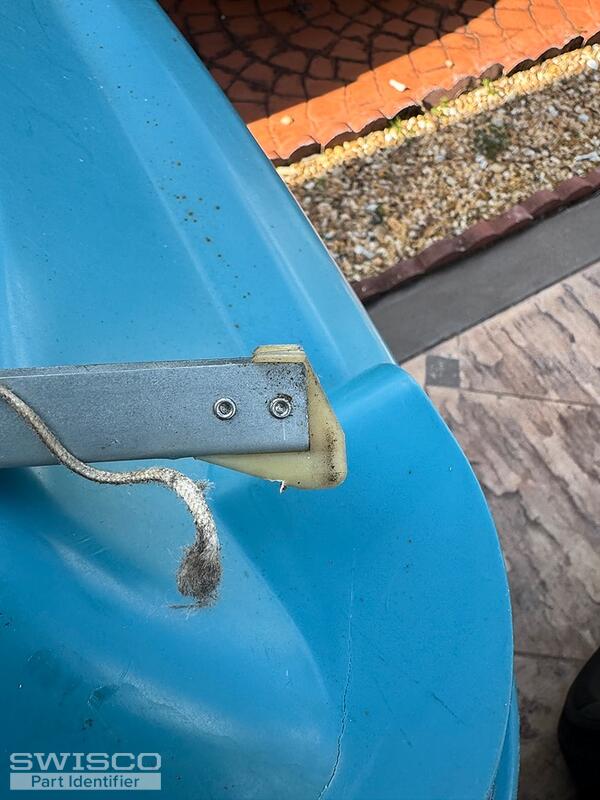

TRACO sticker top fitting 23DS38 stamped channel IMG_1800 bottom shoe
5 user uploaded images
3 Replies
Emily
Emily from SWISCO
May 7, 2024 11:08 am
SWISCO
EXPERT

Hi there Raul.

Thanks for reaching out to us. We can help supply this balance though it must be a custom order. I'll just need a few details to get the ball rolling. The length of the metal channel should be 24" but can you confirm? We would also like you to measure the bottom shoe as shown below and tell us what you find.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.

Quick Learner from Miami Florida
May 23, 2024 3:21 pm
Metal channel measures 24"
Bottom shoe measures 1"
Emily
Emily from SWISCO
May 24, 2024 1:01 pm
SWISCO
EXPERT

Great, thank you! I'll go ahead and email you a purchase link for (4) 24" long balances with the 19-041 top fitting, 15-005 1" bottom shoe, and 2375 stamp. A pair of balances with this stamp is calibrated for a sash weighing 37 to 40 pounds. The 38 in your stamp may indicate the weight of the sash but we recommend you weigh it to confirm as custom orders are nonrefundable.

I'll be here if you have any questions.
