Need 29-14 FB5 CMC Channel Balance and Top Sash Guide

Quick Learner from Pompano Beach FL

Mar 13, 2018 9:15 am

29-14 FB5 CMC ( 29-HP-44-45) also need the nylon top sash guide to be identified and offer a replacement. Please see the photo attached for the guide.

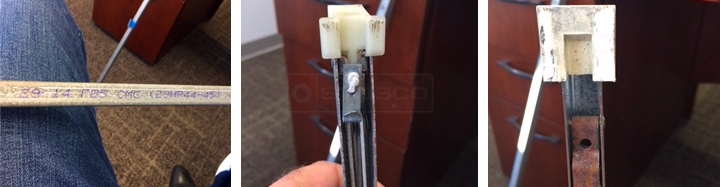

User submitted photos of a window balance.

4 Replies

Paul from SWISCO

Mar 15, 2018 2:02 pm

Please visit our S377-30 channel balance. It comes assembled with a 19-018 top balance shoe and 15-005 bottom balance shoe. You would chose the 2975 option for your stamping of "29-14" which holds a sash weight of 42-45 pounds. For the top sash replacement, see if you could make our 18-042 work for you.

Quick Learner from Pompano Beach

Mar 21, 2018 4:51 pm

Hi Paul,
I do not see the option for 2975. It only goes up to 2960. Also the nylon sash guide I need is the last picture on the right, the thicker one

Paul from SWISCO

Mar 26, 2018 11:09 am

Oh, I'm sorry. It appears that our 2975 option will have to be specially made. That won't be a big deal, we'll email you a special order link for 2 of them right now, which is our minimum. If you would like to change the quantity, let us know and we'd be happy to do so.

I'm not sure what you mean when you say you need the nylon sash guide on the last picture on the right. Are you referring to the pictures in your first post? If so, that right picture is just a picture of the top attachment installed on your balance. The top sash guide is a different part that's installed on the sash itself.
