Need 3 pair block & tackle, pls

Quick Learner from FL

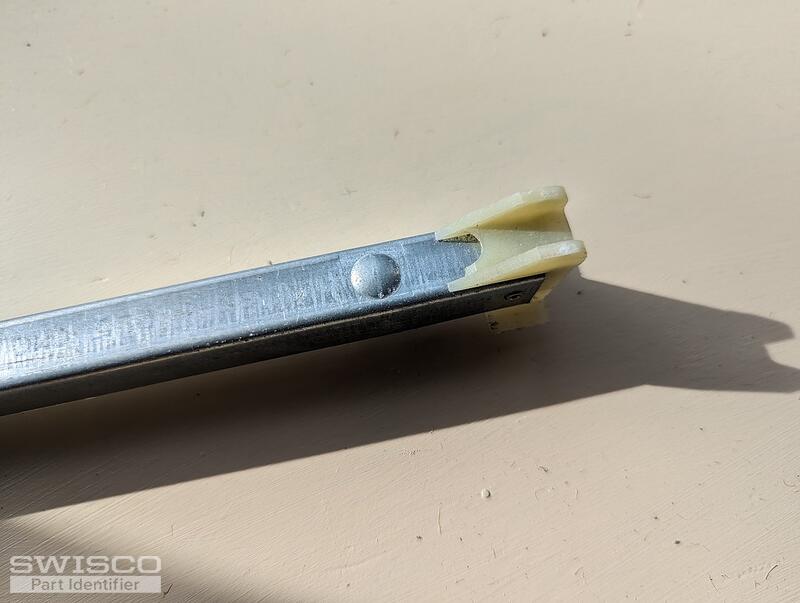

Stamped on channel: 35-9 DL5 CMC 9
We have 3 same windows, all showing same degradation at wheel near 'hook' (finger pointing to it at photo). Please advise regarding necessary part ID.
Thank you for your assistance!
4 user uploaded images
2 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for writing in! Your balances are either the S380-36 with a 1" shoe or the S385-36 with a 1-3/32" shoe. To determine which series is needed for your window, look over the dimensions from the diagram below to confirm the depth of your bottom shoe. Keep in mind, there is a chance that it could measure 7/8". If so, please let me know as these will need to be a custom assembly.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.

Once you've confirmed the series you need and you are ready to place your order, you'll need to select a stamp option. Unfortunately, I am unable to cross-reference the stamp from your balance. That said, you'll need to obtain the exact weight of your said.

There will be is chart that lists the weight ranges each stamp option can hold to support the weight of a sash.
